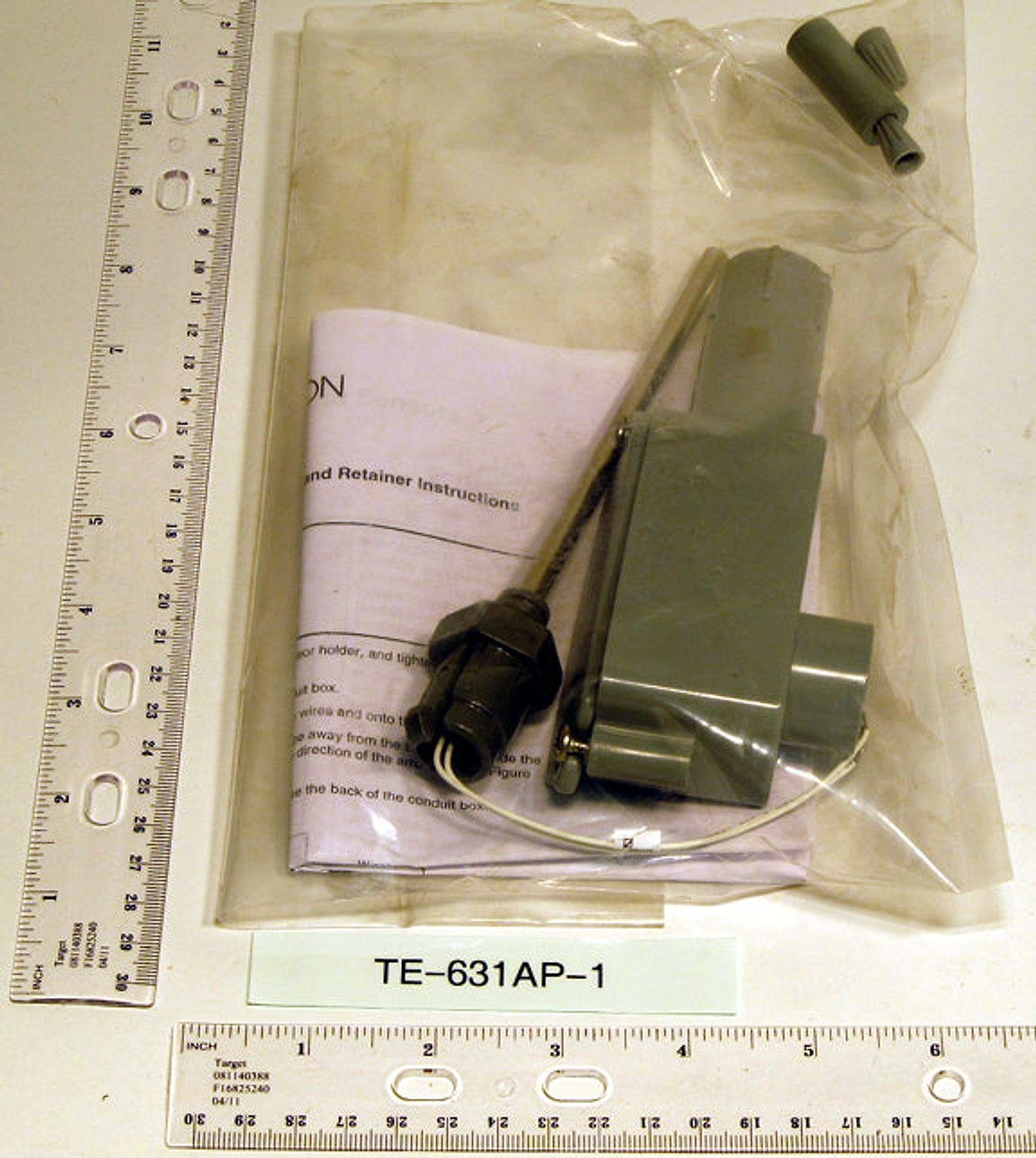

Johnson Controls TE-631AP-1 Temperature Sensor

The Johnson Controls TE-631AP-1 Temperature Sensor delivers precise temperature monitoring for HVAC controls.

With a -50 to 220°F operating range and a 1/2-14 inch female process connection, it features a nickel wetted material for reliable performance in rooms, plenums, or electrical boxes.

Accuracy is ±0.34°F at 70°F, providing tight control across fluctuating conditions.

The sensor uses a 1 kΩ nickel wire element housed in a plastic enclosure, UL 1955 approved, with a 6 inch probe and 22 AWG (0.6 mm diameter x 6 inch length) electrical connections for straightforward integration.

Mounting is via mounting well insertion, and the compact assembly measures 1.38" W x 2.75" D x 5.97" H.

Ideal for room or space temperature monitoring, plenum environments, and electrical box sensing.

• Process connection: 1/2-14 inch female thread
• Wetted material: Nickel
• Operating temperature range: -50 to 220°F
• Accuracy: ±0.34°F at 70°F
• Sensor element: 1 kΩ nickel wire
• Enclosure: Plastic, UL 1955 approved
• Probe length: 6 inches
• Electrical connection: 22 AWG (0.6 mm diameter x 6 inch length)
• Mounting: Mounting well insertion
• Dimensions: 1.38" W x 2.75" D x 5.97" H
