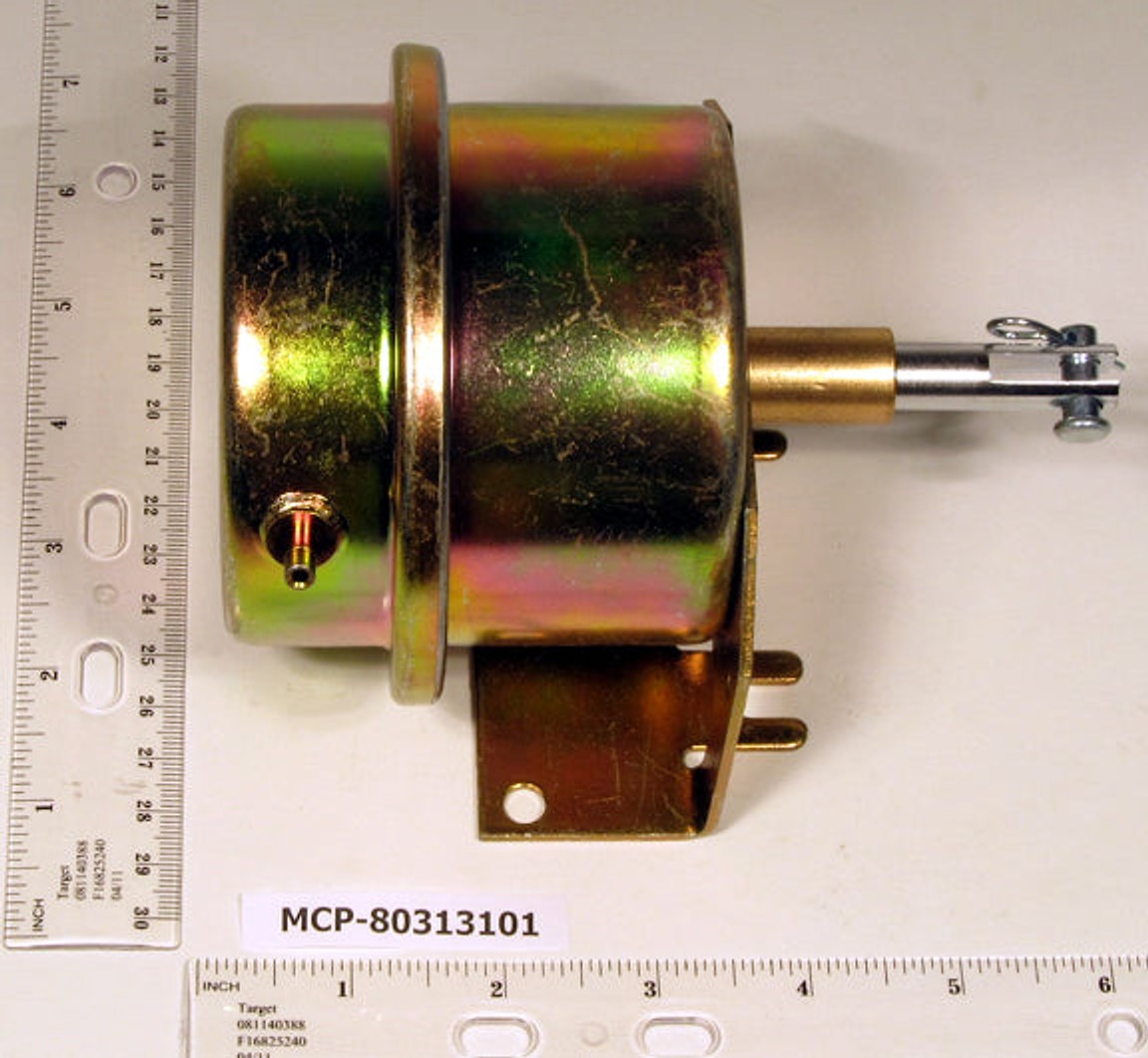

KMC Kreuter MCP-80313101 Damper Actuator

Damper Actuator from KMC Kreuter: the MCP-80313101 Damper Actuator delivers precise, reliable control for HVAC dampers. This compact unit uses a right angled bracket mounting and offers a 60° rotation, making it ideal for tight installations and retrofit projects.

Engineered for tough environments, it features a zinc dichromate cold rolled steel body, neoprene diaphragm, and bronze/Delrin bearings with a nickel-plated shaft. Stroke length is 1-11/16 inches, shaft diameter 7/16 inch, and torque rating spans 35 to 67 in-lb. Operating pressure reaches 30 PSIG and temperature from -20 to 180°F, supporting dependable operation in demanding facilities. The MCP-80313101 also provides an 8 sq in effective area and a supply connection of 3/16 inch OD metal fitting, with a maximum damper speed of 5.8 m/s at 1000 fpm.

• Stroke length: 1-11/16 in
• Angle of rotation: 60°
• Torque rating: 35–67 in-lb
• Pressure rating: 30 PSIG
• Temperature range: -20 to 180°F
• Mounting: Right angled bracket
• Materials: Zinc dichromate steel body; neoprene diaphragm; bronze/Delrin bearings; nickel-plated shaft
• Supply connection: 3/16 in OD metal fitting
• Damper performance: 5.8 m/s at 1000 fpm
