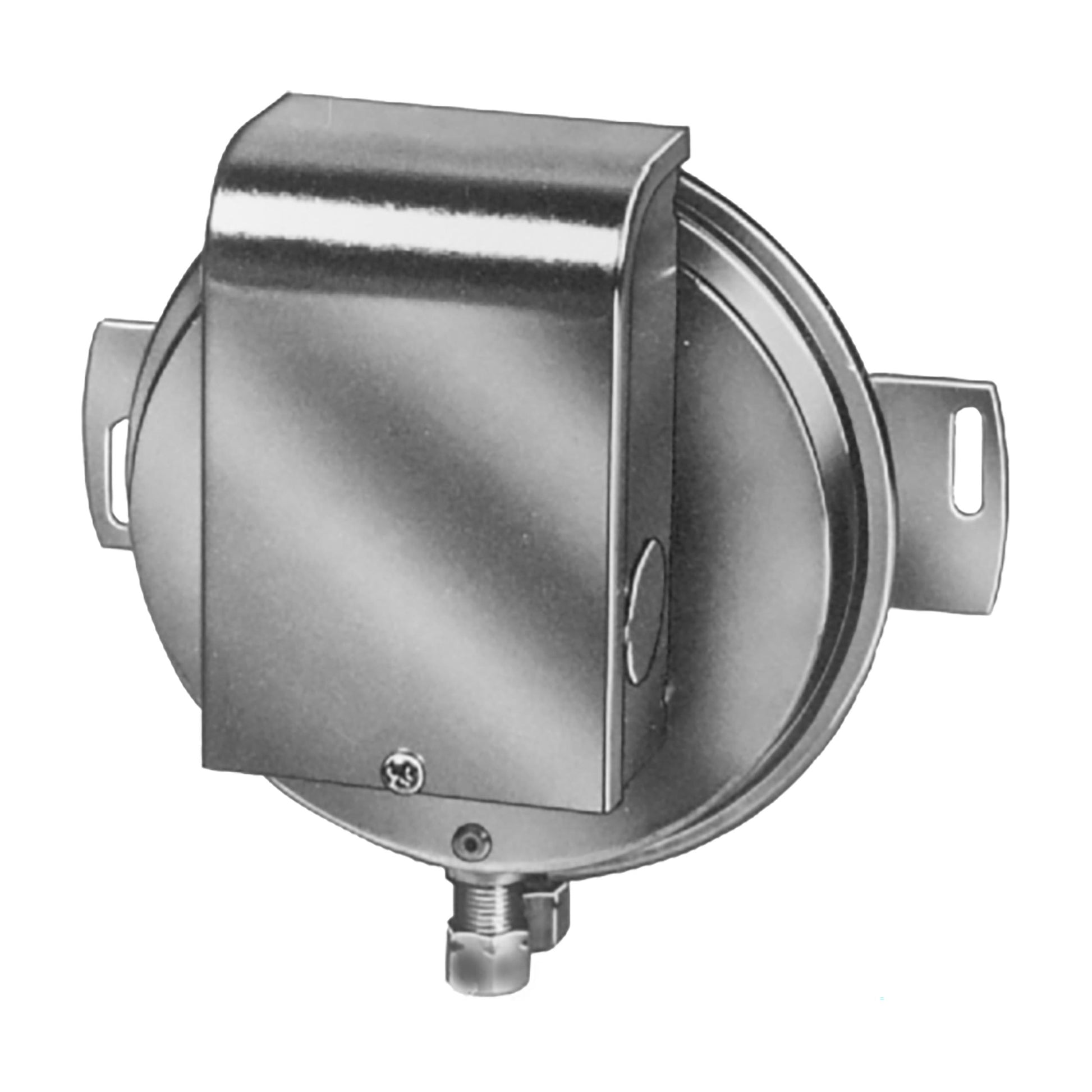

Resideo - Honeywell Home AP5210-30 Pressure Switch

AP5210-30 Pressure Switch from Resideo - Honeywell Home delivers precise control for air systems. The adjustable differential pressure switch features a diaphragm operator and a 0.5 PSI operating pressure rating, with a matching 0.5 PSI differential. Built for reliability, this air pressure switch uses a rugged metal enclosure and 1/4 inch compression connections for easy installation.

This device uses SPNC 2-circuit contacts for flexible control options and carries industry-standard approvals (UL, CSA, FM). Operating over a wide temperature range, it withstands environments from -40 to 190°F, making it suitable for HVAC and industrial applications.

• Operating pressure rating: 0.5 PSI
• Differential rating: 0.5 PSI
• Diaphragm operator with adjustable differential
• Contact configuration: SPNC 2-circuit
• Connection: 1/4 inch compression
• Enclosure: Metal
• Temperature range: -40 to 190°F
• Electrical connection: #8-32 screw terminals with cup washers
• Approvals: UL, CSA, FM

Perfect for HVAC controls, air handling, and protection systems, the AP5210-30 combines reliability with easy installation and robust electrical ratings.
