Resideo - Honeywell Home ARD14TZ Zone Control Damper

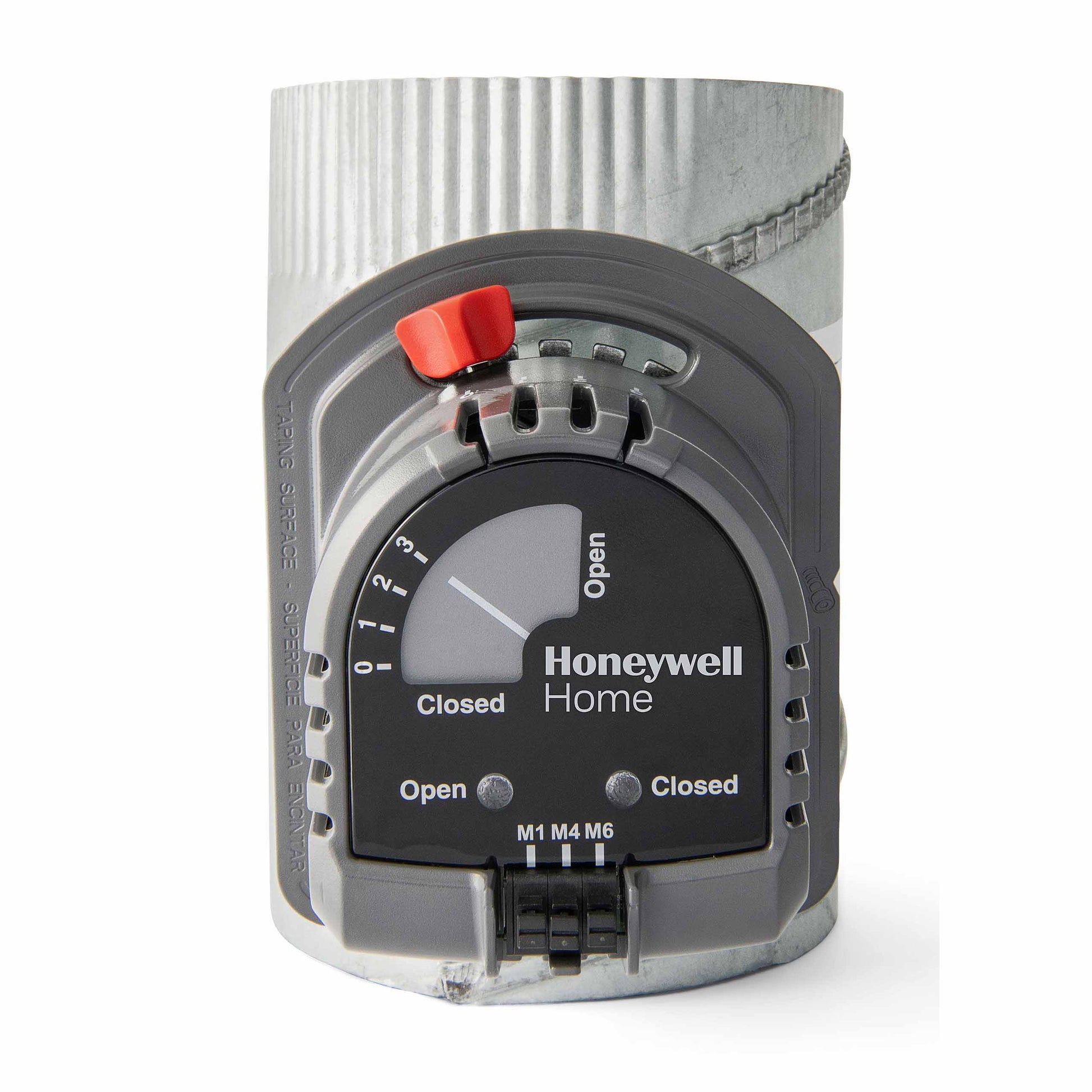

ARD14TZ Zone Control Damper by Resideo Honeywell Home is a precision automatic zone damper designed for 14-inch ductwork. This round, single-blade damper uses galvanized steel for the blade and a 22-gauge frame, ensuring durability in any HVAC installation.

Engineered for reliable zone control in residential or light commercial systems, it features a 24V AC motor with 71 in‑oz torque and 90-degree rotation, delivering quick, quiet operation. The unit provides fail-safe, normally open operation and a spring return for fail-safe positioning when power is interrupted.

• Type: Automatic, Round, Single Blade
• Duct Size: 14" Diameter
• Construction: Frame 22 GA; Blade 20 GA galvanized steel
• Inclusions/Features: Spring Return, Adjustable Close Position Range Stop, Fail Safe, Normally Open Operation
• Motor: 24V AC @ 60 Hz; 8 VA; 71 in‑oz torque; 90° rotation; 30 s power open / 10 s spring return
• Environment: Temperature 40–140 °F; Pressure Drop < 0.0329" WC @ 800 FPM; Max Static Pressure 1" WC
• Mounting/Wiring: Side or Top mounting; M1 (Power), M6 (Common), M4 (LED Indication)
