Resideo - Honeywell Home ARD5TZ Zone Control Damper

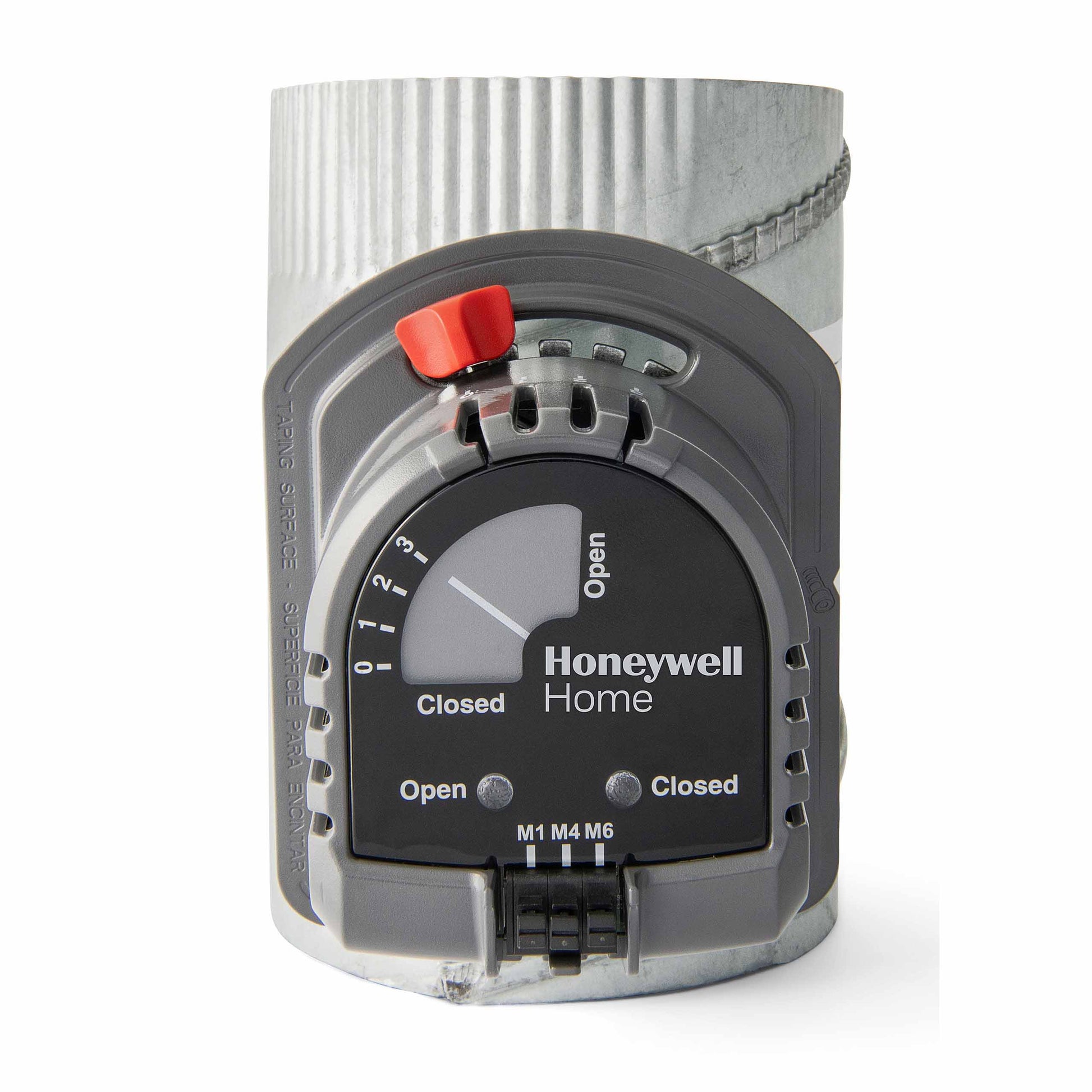

ARD5TZ Zone Control Damper by Resideo - Honeywell Home is an automatic zone damper designed for precise hvac zoning across multiple rooms. The round, single-blade unit uses a 5-inch duct connection, a sturdy 24-gauge frame, and a galvanized steel blade for lasting performance. Its fail-safe, normally open operation with spring return ensures safe airflow even during power loss, making it ideal for modern home comfort systems.

Powered by a 24V AC motor at 60 Hz delivering 71 in-oz of torque, the ARD5TZ provides reliable performance with precise 90-degree travel. Actuation timing is fast: 30 seconds to open and 10 seconds to close (spring return). Mounting flexibility is built in with side or top installation and wiring to motor terminals M1-Power, M6 Common, and M4 (optional) LED indication for status at a glance.

• Size: 5-inch diameter round duct connection for standard HVAC runs
• Construction: 24 ga frame, 22 ga galvanized steel blade
• Motor: 24V AC, 60 Hz, 71 in-oz torque, 90° rotation
• Operation: normally open, spring return, fail-safe
• Timing: 30 seconds to open; 10 seconds to return
• Adjustability: adjustable close-position range stop; LED indication
• Mounting & wiring: side or top mounting; M1-Power, M6 Common, M4 (optional) LED
• Performance: max static pressure 1 in WC; pressure drop < 0.033 in WC at 800 ft/min; 40–140°F
