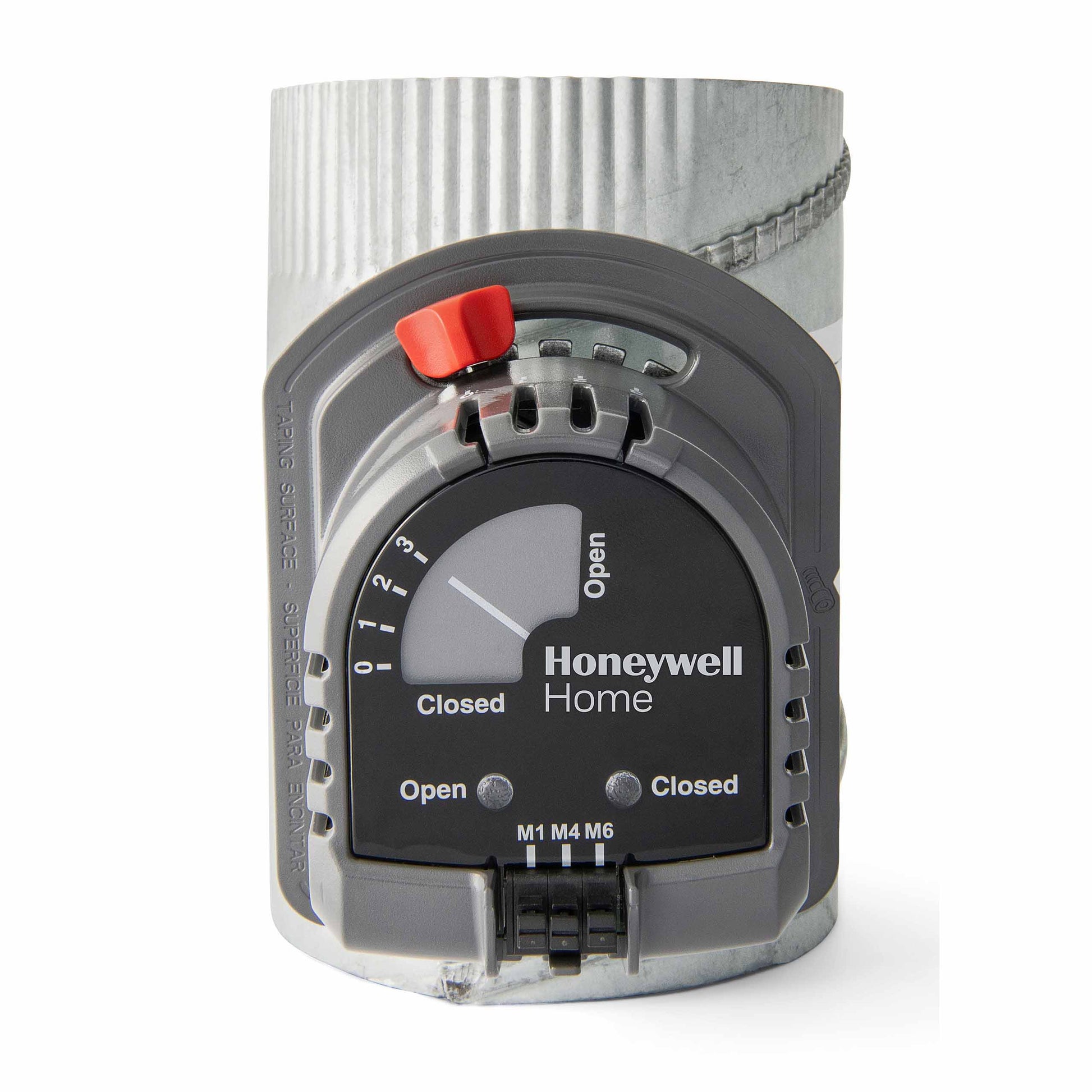

Resideo - Honeywell Home ARD6TZ Zone Control Damper

Experience precise zoning control with the ARD6TZ Zone Control Damper from Resideo - Honeywell Home. The ARD6TZ Zone Control Damper delivers automatic, round, single-blade operation for 6-inch ducts, helping optimize comfort and energy efficiency in multi-zone HVAC systems.

Designed for reliability, this damper features spring-return and fail-safe mechanisms with a normally open option, ensuring safe shutdown on power loss and easy integration into modern systems. The sturdy galvanized steel blade, 24-gauge frame, and 22-gauge blade thickness provide durable performance across a wide temperature range.

• Type: Automatic, Round, Single Blade
• Duct Size: 6 Inch Diameter
• Materials: 24 Gauge Frame; 22 Gauge Galvanized Steel Blade
• Inclusions/Features: Spring Return, Adjustable Close Position Range Stop, Fail Safe, Normally Open Operation
• Motor & Power: 24V AC at 60 Hz, 8 VA; 90° rotation; Power Closed, Spring Open
• Torque & Speed: 71 in-oz torque; 30 s to Power Open; 10 s for Spring Return
• Environment: Temperature 40–140°F; Max static pressure 1 in WC; Pressure drop < 0.0329 in WC at 800 fpm
• Wiring: M1 (Power), M6 (Common), M4 (LED indication, optional)
• Mounting: Side or Top
• Application: Zone Damper for precise airflow control
