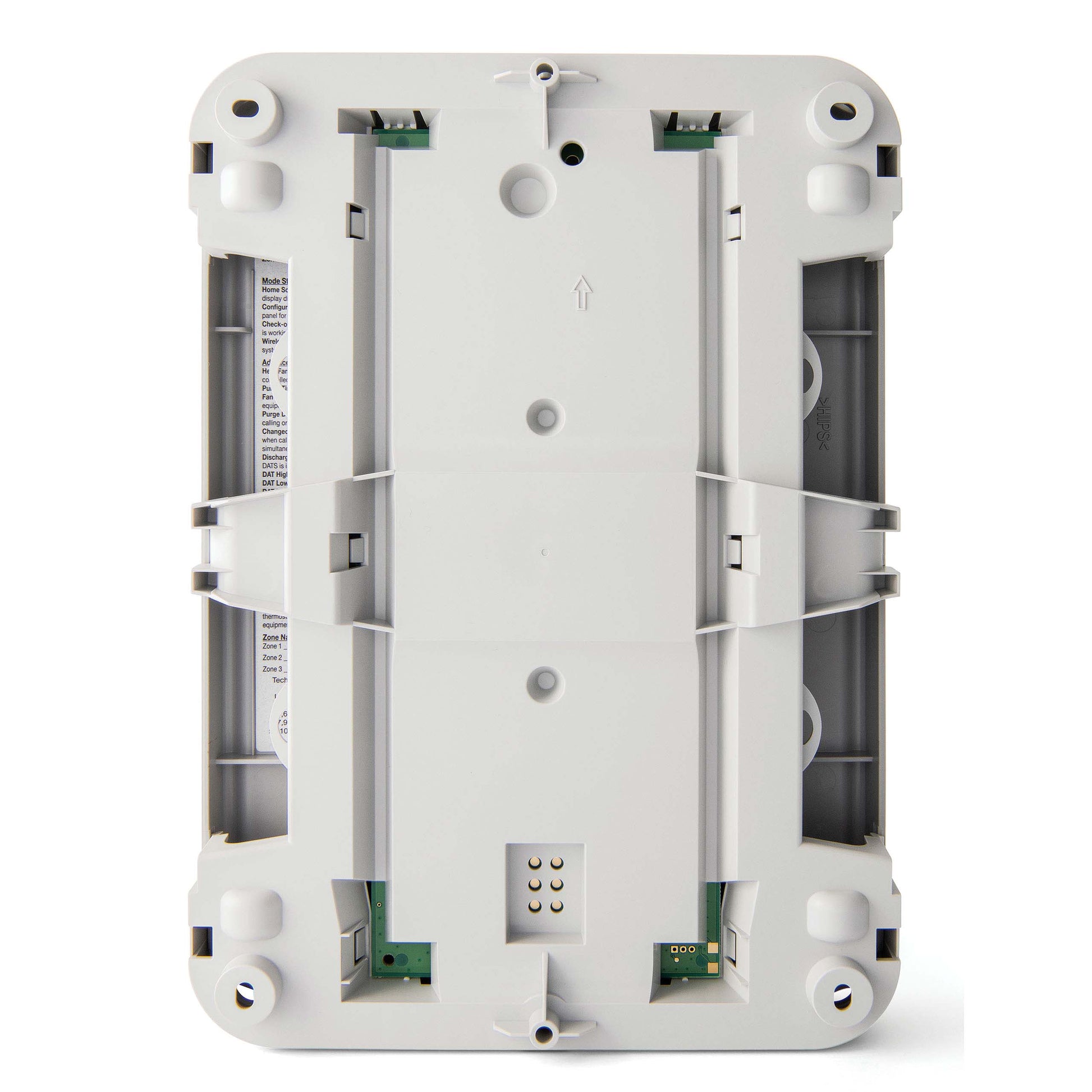

Resideo - Honeywell Home HZ322 Zone Control Panel

The HZ322 Zone Control Panel from Honeywell Home (Resideo) is a reliable zoning controller designed for precise comfort in multi-zone homes. This 3-zone panel supports a 2-heat/1-cool stage configuration, making it ideal for conventional 1-stage zoning heat pumps. Its compact form measures 8 inches wide, 1.86 inches deep, and 11.5 inches high, and it wires with 18 or 20 gauge solid conductor for solid performance.

Engineered for demanding environments, the HZ322 operates from a 24-volt input supply and uses an 18–30 volt AC transformer rated at 50/60 Hz. It performs over a wide temperature range from -40 to 165 degrees Fahrenheit and handles 5–90 percent relative humidity (non-condensing). The panel includes essential features such as LED indicators, Auto Changeover, a Discharge Air Temperature Sensor, a Resettable Fuse, and Zone Fan Control to optimize comfort and energy efficiency.

Key features:

• 3-zone control with 2-heat/1-cool stage configuration
• LED indicators for clear status at a glance
• Auto Changeover for seamless thermostat operation
• Discharge Air Temperature Sensor for safe, efficient performance
• Resettable fuse and robust protection
• Zone Fan Control for independent room comfort
• Wall-mount mounting and straightforward wiring (18/20 AWG)
