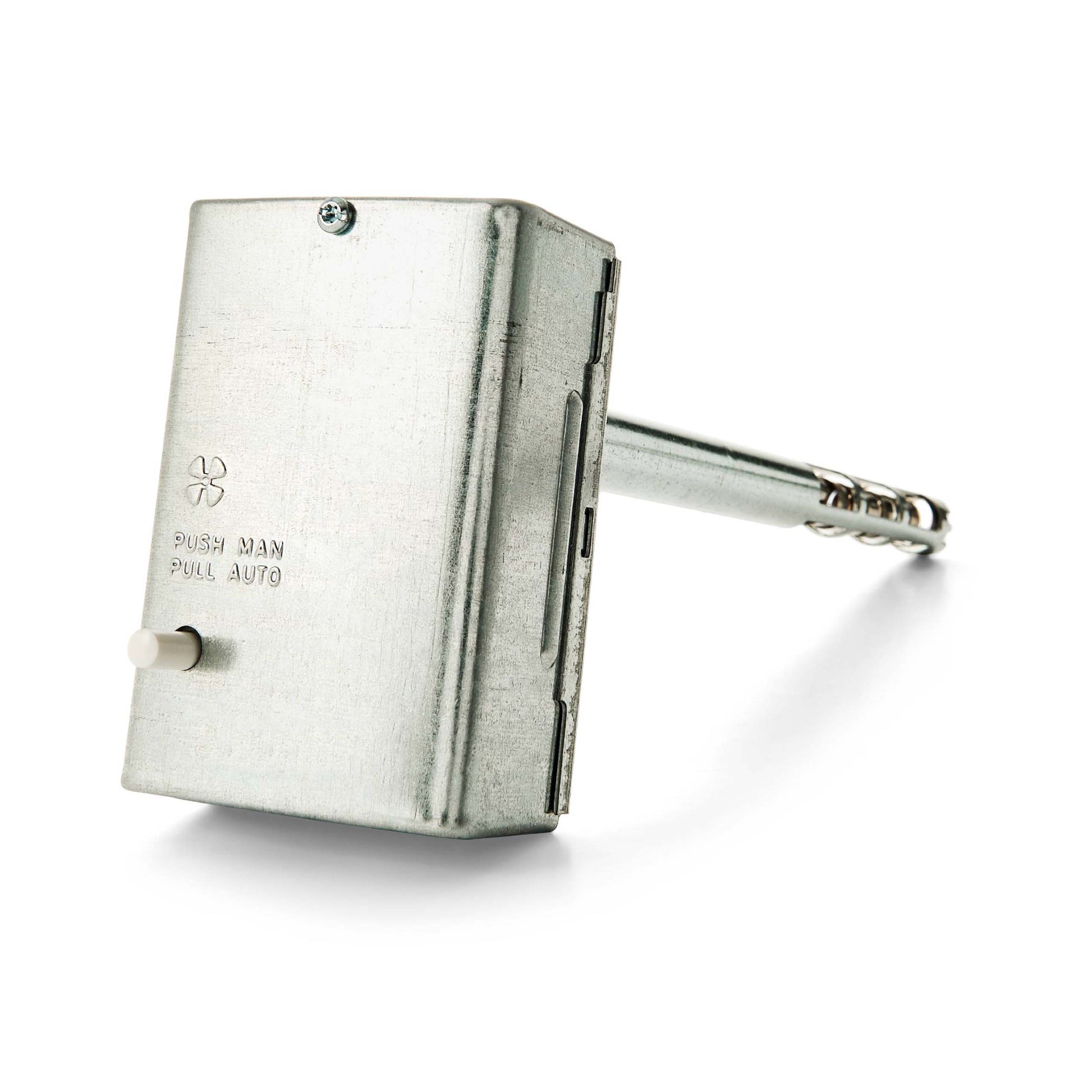

Resideo - Honeywell Home L4064B2210 Fan and Limit Controller

L4064B2210 Fan and Limit Controller from Resideo Honeywell Home delivers reliable, precise control for forced warm air heating systems. This compact controller combines a fan switch with a high-limit thermostat and offers flexible mounting with a surface/universal mounting bracket, ideal for retrofit or new installations.

The device supports a wide temperature range and multiple operating thresholds to protect equipment and optimize comfort. Maximum temperature ratings include 190 deg F for the switch, 350 deg F for the element, and a 100 to 250 deg F high-limit window with configurable fan on/off settings (Fan On 65 to 215 deg F; Fan Off 50 to 200 deg F). The 25 deg F high-limit differential provides dependable protection from overheating.

• Type 11-1/2 Inch Length Element Insertion
• Surface/Universal Mounting Bracket
• Auxiliary Screw Terminal Connection
• Fan Switch Makes; High Limit Breaks on Temperature Rise
• Fan Full Load: 14 Amp @ 120 Volt AC / 7 Amp @ 240 Volt AC
• Limit Full Load: 8 Amp @ 120 Volt AC / 4 Amp @ 240 Volt AC
• Pilot Duty: 0.25 Amp @ 0.25 to 12 Volt AC / 2 Amp @ 24 Volt AC
• Forced Warm Air Heating System application
• UL, CSA approvals
• Overall Dimensions: 3 Inch Width x 1-19/32 Inch Depth x 4-9/32 Inch Height
• Includes Manual and Automatic Fan On/Off Setting, Breakaway Jumper
