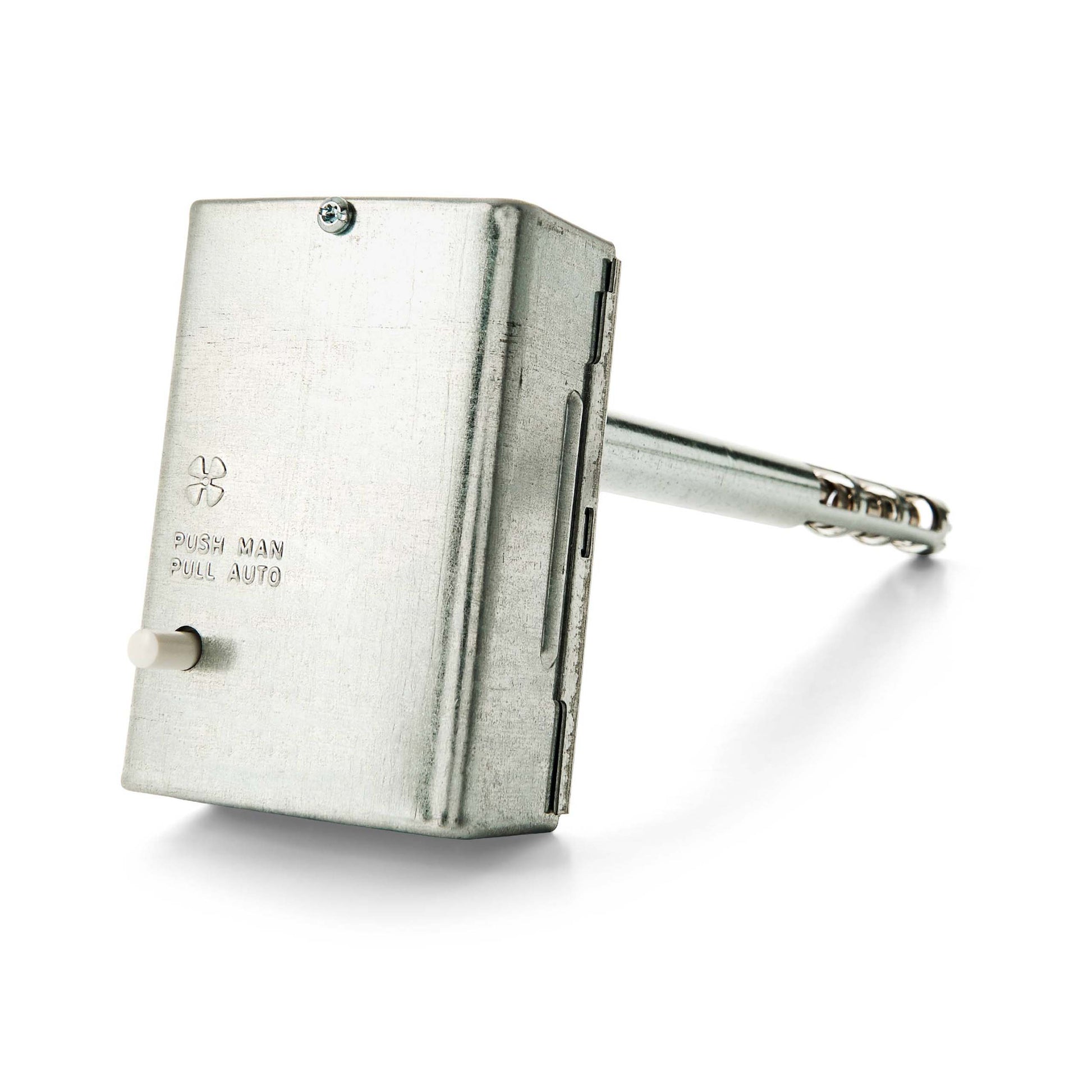

Resideo - Honeywell Home L4064B2236 Fan and Limit Controller
Resideo - Honeywell Home L4064B2236 Fan and Limit Controller
Regular price
$171.80 USD
Regular price
Sale price
$171.80 USD
Shipping calculated at checkout.
39 in stock
Quantity
Couldn't load pickup availability
SKU:2189
View full details
![Resideo - Honeywell Home L4064B2236 Fan and Limit Controller — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032908603614.png?v=1782846146&width=1445)
The Fan and Limit Controller is a reliable solution for controlling heating in forced warm air systems. The Resideo Honeywell Home L4064B2236 combines an 8-inch length element insertion with surface/universal mounting, delivering precise temperature control and easy installation.
Key specifications at a glance:
- Application: Forced warm air heating systems with auxiliary screw terminal connection.
- Temperature ranges: Operating -40 to 190°F; switch rating up to 190°F; element up to 350°F; high limit 100–250°F; fan ON 65–215°F; fan OFF 50–200°F; high limit stop 200°F; fan ON stop 125°F; fan OFF stop 100°F.
- Electrical ratings: Fan full-load 14A @ 120V / 7A @ 240V; limit full-load 8A @ 120V / 4A @ 240V; fan locked rotor 84A @ 120V / 42A @ 240V; limit locked rotor 48A @ 120V / 24A @ 240V; pilot duty 0.25A @ 0.25–12V or 2A @ 24V.
- Mounting & connection: Type 8-Inch length element insertion with surface/universal mounting bracket; auxiliary screw terminal.
- Certifications: UL and CSA approvals.
- Dimensions: 3 in W × 1-19/32 in D × 4-9/32 in H.
- Includes: Manual, automatic fan On/Off setting, breakaway jumper.
Specifications
| Type | 8 Inch Length Element Insertion, Surface/Universal Mounting Bracket |
|---|---|
| Application | Forced Warm Air Heating System |
| Approvals | UL, CSA |
| Contact Rating | 14 Amp at 120 Volt AC/7 Amp at 240 Volt AC Fan (Full Load), 8 Amp at 120 Volt AC/4 Amp at 240 Volt AC Limit (Full Load), 84 Amp at 120 Volt AC/42 Amp at 240 Volt AC Fan (Locked Rotor), 48 Amp at 120 Volt AC/24 Amp at 240 Volt AC Limit (Locked Rotor), 0.25 Amp at 0.25 to 12 Volt AC/2 Amp at 24 Volt AC (Pilot Duty) |
| Temperature Range | -40 to 190 Deg F |
| Max Temperature | 190 Deg F (Switch), 350 Deg F (Element), 100 to 250 Deg F (High Limit), 65 to 215 Deg F (Fan ON), 50 to 200 Deg F (Fan OFF), 200 Deg F (High Limit Stop), 125 Deg F (Fan ON Stop), 100 Deg F (Fan OFF Stop) |
| Connection Type | Auxiliary Screw Terminal |
