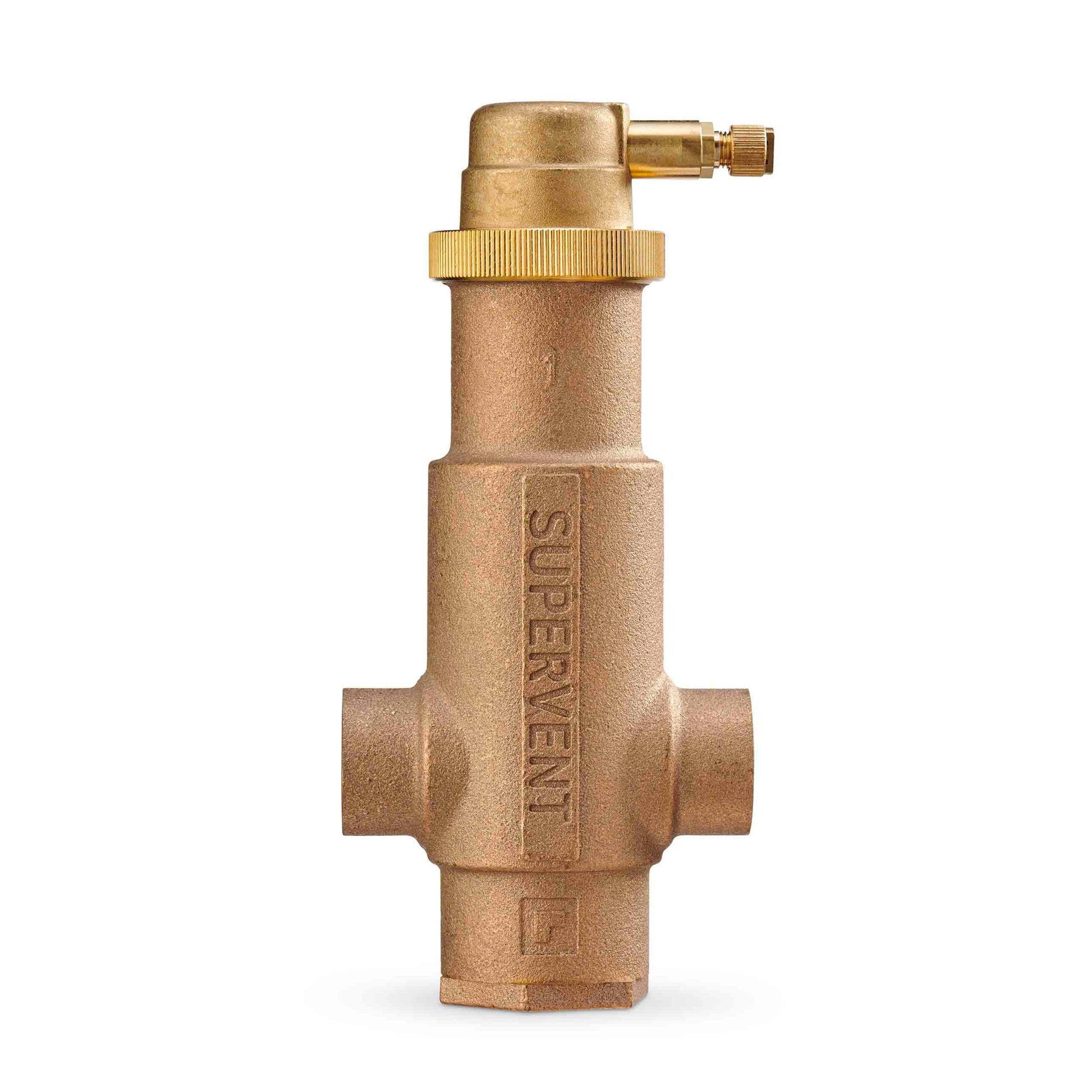

Resideo - Honeywell Home PV075 Air Vent Eliminator

PV075 Air Vent Eliminator is an automatic air vent from Resideo (Honeywell Home) designed to purge air from closed-loop hydronic systems. With a bronze body, 3/4 inch nominal size, and female threaded end connections, it delivers reliable air release in both heating and cooling installations.

This unit uses a TPX polymethylpentene float and EPDM O‑ring with stainless steel concentrator wire to ensure dependable venting and long service life. Bi-directional flow accommodates circulation in either direction, while the compact end-to-end distance of 2.7 inches fits tight spaces. Rated for 125 PSI and up to 240°F, it handles typical residential and commercial closed-loop networks, including hydronic heating and chilled water systems. The PV075 supports a flow capacity of 13 Cv, making it suitable for moderate to larger circuits.

• Automatic air vent with bronze body and EPDM O‑ring for reliable sealing
• Nominal size: 3/4 inch; end connections: Female Threaded x Female Threaded
• Float material: TPX polymethylpentene; concentrator wire: stainless steel
• Flow characteristics: bi-directional flow; end-to-end distance 2.7 inches
• Ratings: 125 PSI pressure; 240°F temperature
• Flow capacity: 13 Cv
• Applications: residential and commercial closed-loop hydronic heating and chilled water systems
