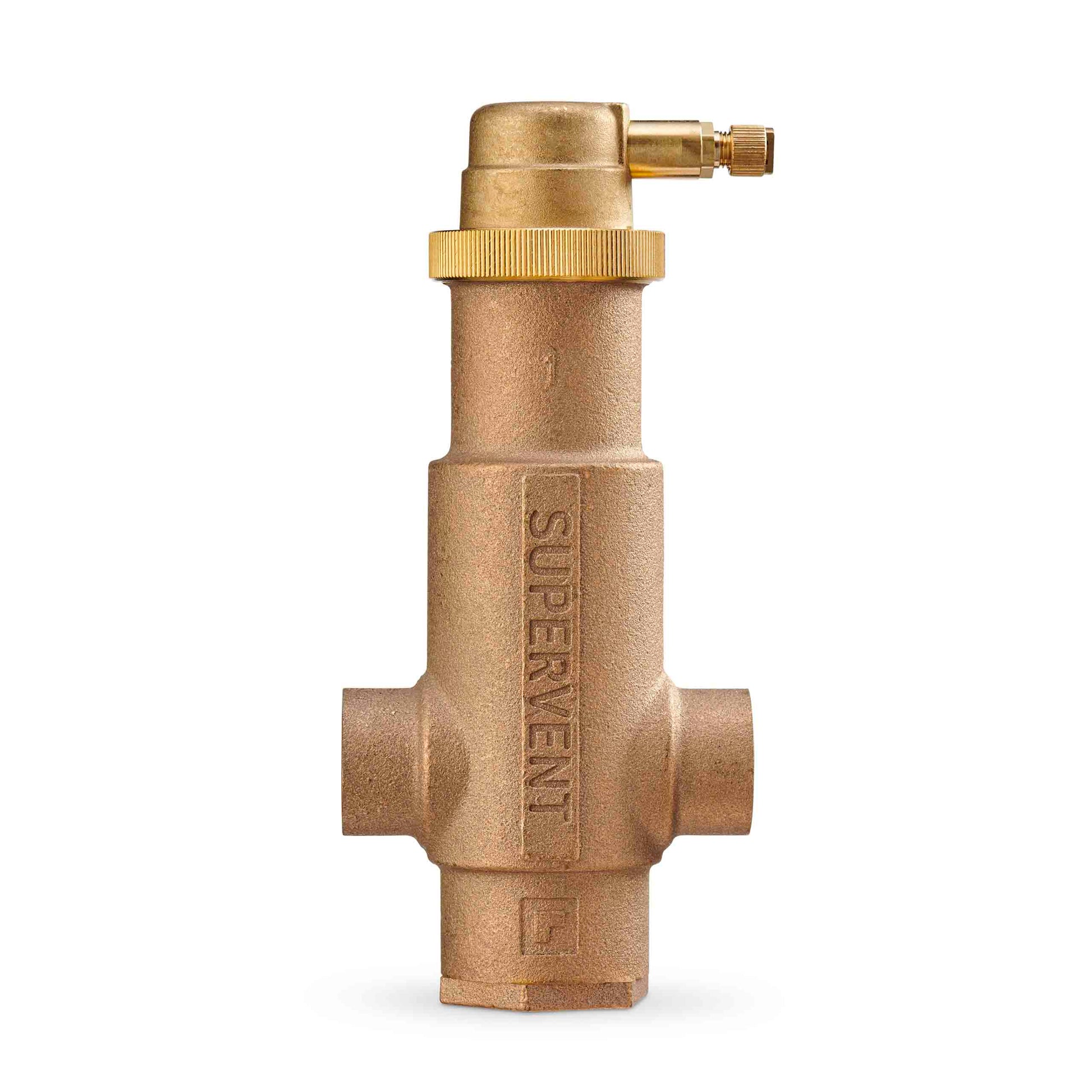

Resideo - Honeywell Home PV100S Air Vent Eliminator

PV100S Air Vent Eliminator from Resideo - Honeywell Home is an automatic air vent engineered to purge air from residential and commercial closed-loop hydronic systems.

Built with a bronze body, this 1 inch nominal size valve uses soldered end connections for a tight fit, with a compact end-to-end distance of 3.2 inches, and withstands up to 125 PSI and 240°F.

• Bi-Directional Flow enables flexible orientation and installation.
• Bronze body with EPDM O-Ring for reliable sealing.
• TPX Polymethylpentene Float and Stainless Steel Concentrator Wire for durable operation.
• Nominal Size 1 Inch and End Connection Soldered x Soldered for easy integration.
• Applications: Residential, Commercial Closed Loop, Hydronic Heating, Chilled Water System.
• Flow Capacity: 22 Cv.

Designed for reliability in both new installations and retrofit projects, the PV100S ensures efficient air removal and long service life in hot or cold loops.
