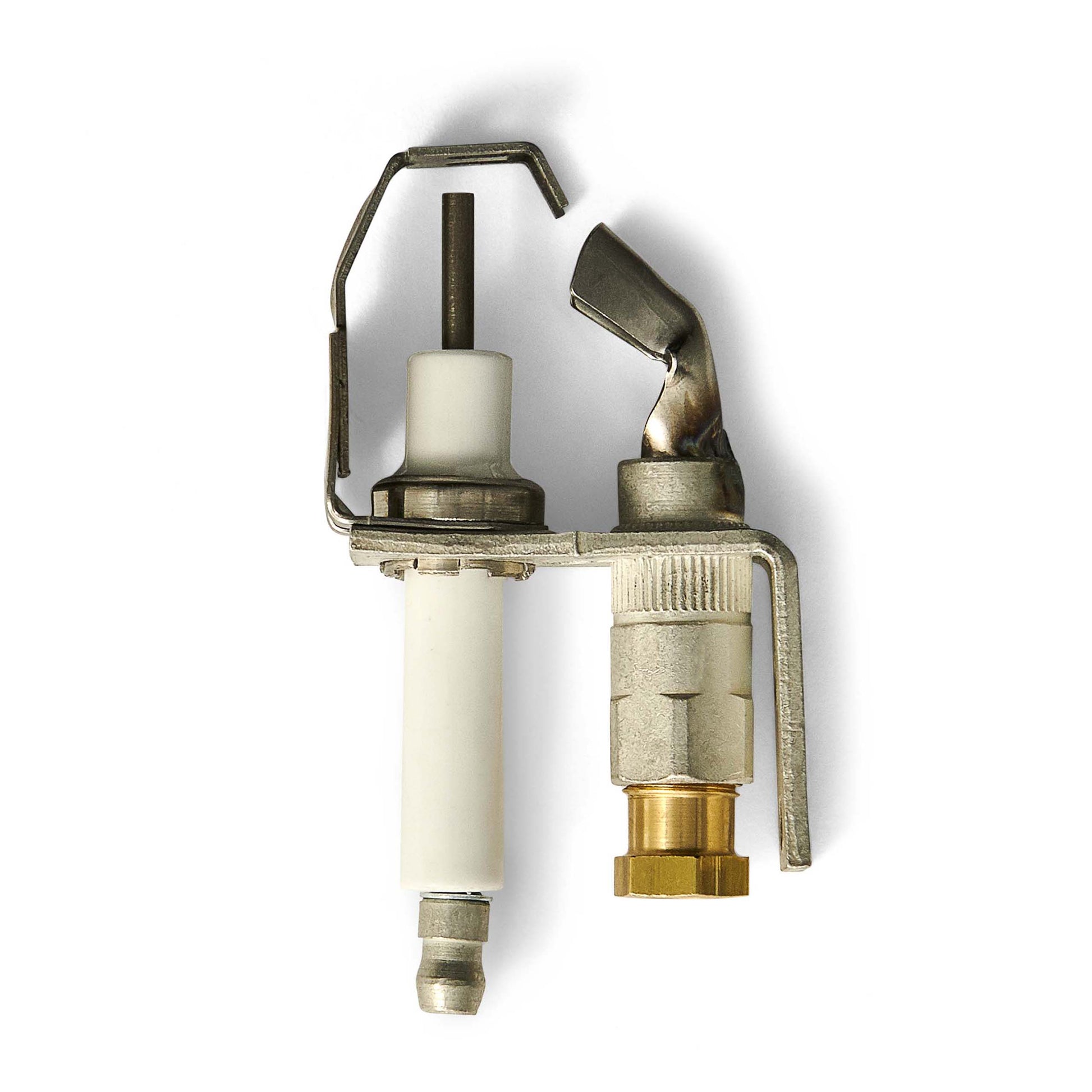

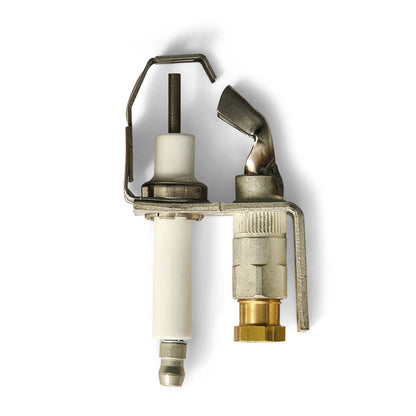

Resideo - Honeywell Home Q345A1313 Pilot Burner

Q345A1313 Pilot Burner delivers reliable ignition for intermittent pilot systems. This non-primary aerated pilot burner is designed for natural gas appliances, delivering robust performance with CSA approval for added safety and reliability.

Engineered for easy integration, it features a Ceramic Insulated Kanthal flame rod/spark ignition, a Type B mounting bracket, and 1/4 inch compression fittings. Orifice sizes include 0.01 inch (BBR-10) and 0.018 inch (BCR-18); overall size is 2-1/16 inch W by 3/4 inch D. The unit is directionally tuned with a left-hand tip and a Target tip style, and ships with an igniter, ground strap, and flame sensor. Used on S86, S860, S8610, and S8670 intermittent pilot systems.

• Intermittent Pilot System compatibility for reliable, controlled ignition in natural-gas appliances.
• Ceramic Insulated Kanthal flame rod with spark ignition for quick starts and long life.
• 1/4 inch compression fittings and Type B mounting bracket for straightforward installation.
• Orifice options: 0.01 inch (BBR-10) and 0.018 inch (BCR-18) to match your gas flow requirements.
• Compact dimensions: 2-1/16 inch W x 3/4 inch D with left-direction, target-tip.
• Includes: Igniter, Ground Strap, and Flame Sensor for immediate setup.
• CSA approved for safety and compliance; compatible with S86, S860, S8610, S8670 intermittent pilot systems.
