Resideo - Honeywell Home Q345U1005 Pilot Burner

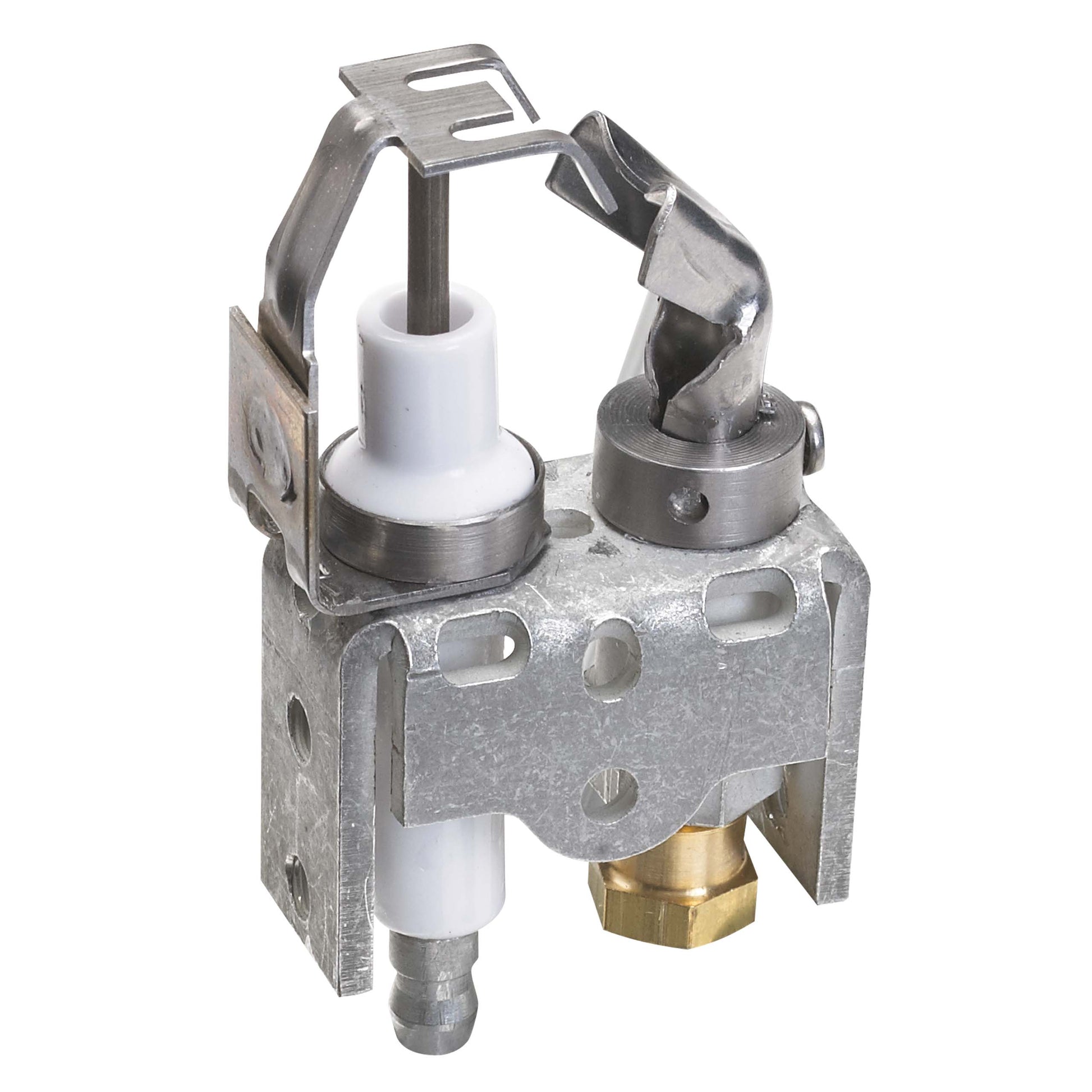

Q345U1005 Pilot Burner from Resideo - Honeywell Home is a universal, non-primary aerated, 1-tip burner designed for intermittent pilot systems. The Q345U1005 Pilot Burner uses Natural Gas or Liquid Propane and includes a universal mounting bracket for easy installation.

Engineered for reliable ignition and precise control, it features a ceramic insulated Kanthal flame rod with a spark igniter, a 1/4-inch installed fitting (1/8 inch packed compression), and adjustable front tip direction (left, right, or center). Orifice sizes available: 0.02 inch (BCR-20), 0.018 inch (BCR-18), 0.012 inch (BBR-12), and 0.01 inch (BBR-11).

• Type: Non-Primary Aerated, Universal, 1-Tip
• Fuel Type: Natural Gas or Liquid Propane
• Ignition: Kanthal flame rod with spark igniter
• Mounting: Universal U-bracket with ground strap
• Orifices: 0.02" (BCR-20), 0.018" (BCR-18), 0.012" (BBR-12), 0.01" (BBR-11)
• Tip Direction: Front tip adjustable Left, Right, or Center
• Applications: Intermittent Pilot System; compatible with S8600F/S8600H/S8600M/S8610F/S8610H/S8610M/S8610U/S8660D/S8660E/S8670D/S8670E
