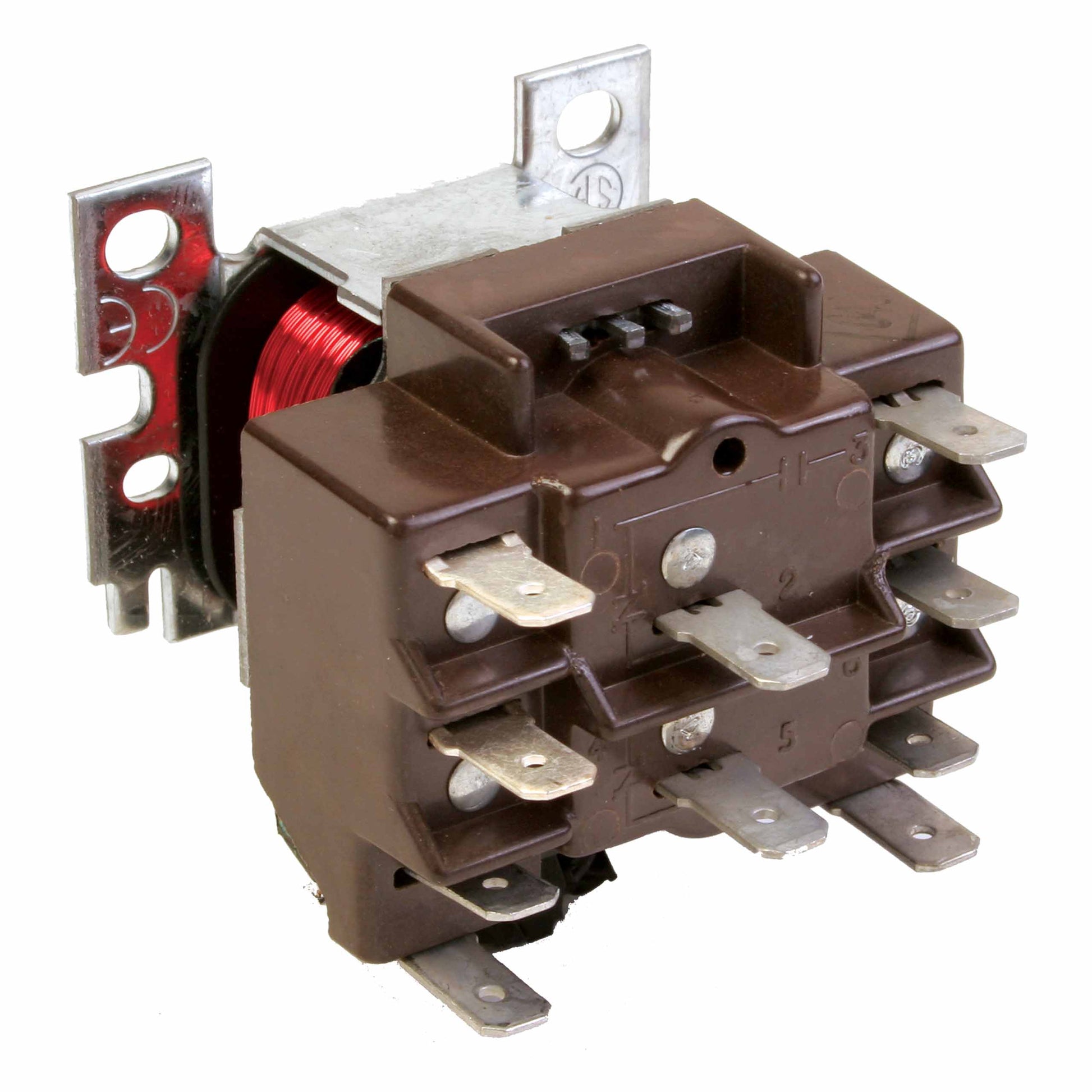

Resideo - Honeywell Home R4222D1013 General Purpose Relay

The General Purpose Relay from Resideo - Honeywell Home, model R4222D1013, delivers dependable switching for refrigeration, air conditioning equipment, and vending machines. This AC operated relay uses a DPDT contact configuration for flexible, reliable control across a wide range of voltages.

• Contact configuration: DPDT for versatile switching
• Coil voltage: 120 VAC at 50/60 Hz
• Wide voltage compatibility: 208/120/240/277/480 VAC
• Current ratings: up to 60 A at 120 VAC (locked rotor); 12 A at 120 VAC (full load); 3 A at 480 VAC; 6–18 A at other voltages; 35 A at 208/240/277 VAC; 10 A at 480 VAC; 20.8 A resistive at 120/208/240/277 VAC
• Terminals: 1/4-inch quick-connects with lead wire
• Approvals: UL and CSA listed
• Physical: 2-5/32" W x 2-3/8" D x 1-7/8" H
• Temperature range: -20 to 155°F
• Typical applications: Refrigeration, air conditioning equipment, vending machines
