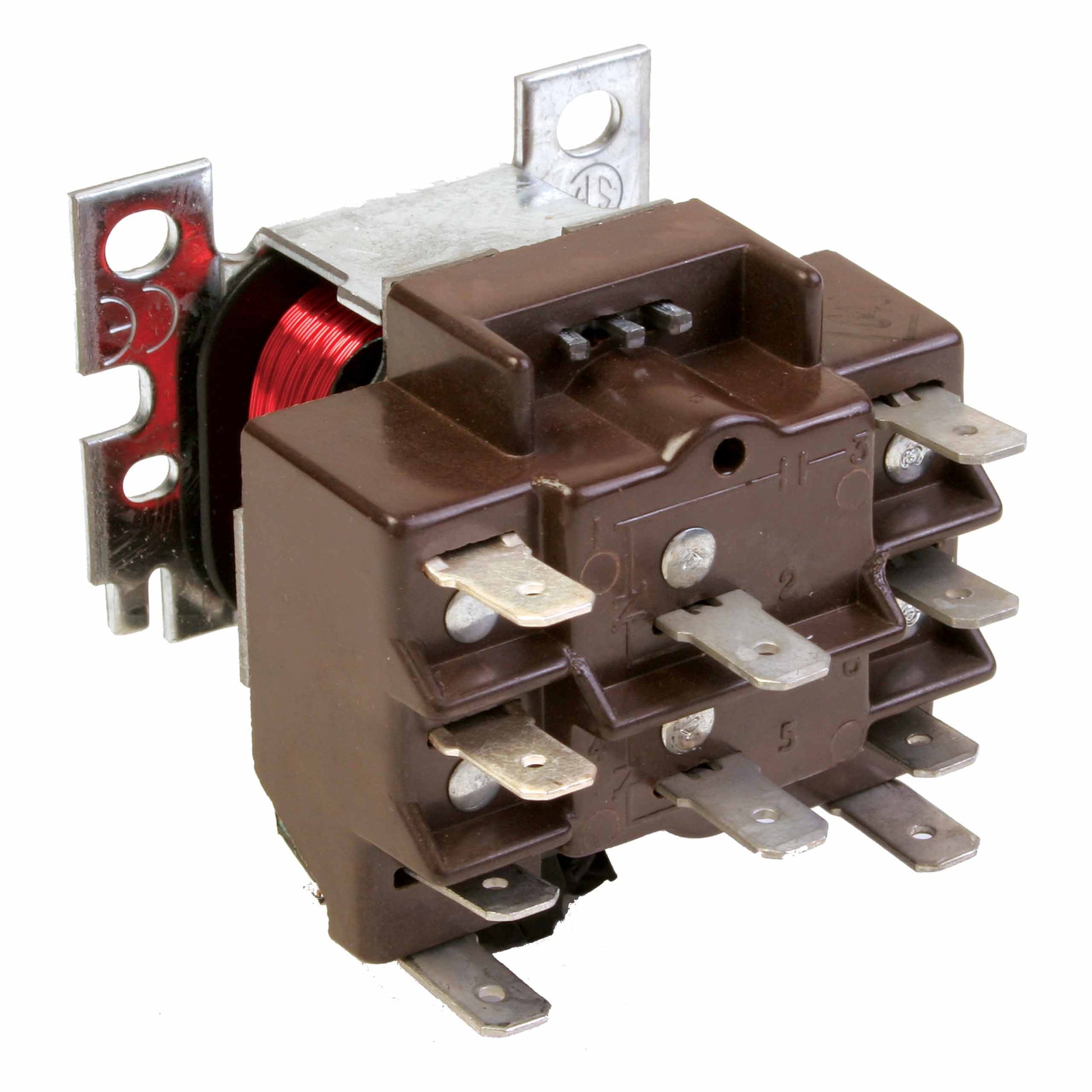

Resideo - Honeywell Home R4222D1021/U General Purpose Switching Relay

The General Purpose Switching Relay, model R4222D1021/U by Resideo Honeywell Home, delivers dependable control for refrigeration and air conditioning equipment. This AC-operated relay uses a DPDT configuration to provide flexible, reliable switching for complex control circuits and vending machines.

With a coil voltage of 208/240 VAC at 50/60 Hz, it supports a broad range of contact voltages (120/208/240/277/480 VAC) to match your system requirements. The DPDT configuration enables independent control of two circuits, improving precision and wiring efficiency. The unit is UL and CSA listed, ensuring safety and compliance in commercial and residential installations. Its compact form, 1/4 inch quick-connect terminals, and robust construction make it a practical choice for tight panels and demanding environments.

Additionally, the relay is rated for a wide temperature range (-20 to 155°F) and is suitable for applications in refrigeration, air conditioning equipment, and vending machines.

• Contact Configuration: DPDT for versatile double-pole switching
• Coil Voltage: 208/240 VAC at 50/60 Hz
• Contact Voltage Range: 120/208/240/277/480 VAC (50/60 Hz)
• Terminals: 1/4 inch quick-connect
• Approvals: UL and CSA listed
• Operating Temp: -20 to 155°F
• Physical Size: 2-5/32 in W × 2-3/8 in D × 1-7/8 in H
