Resideo - Honeywell Home R4222N1002 General Purpose Switching Relay

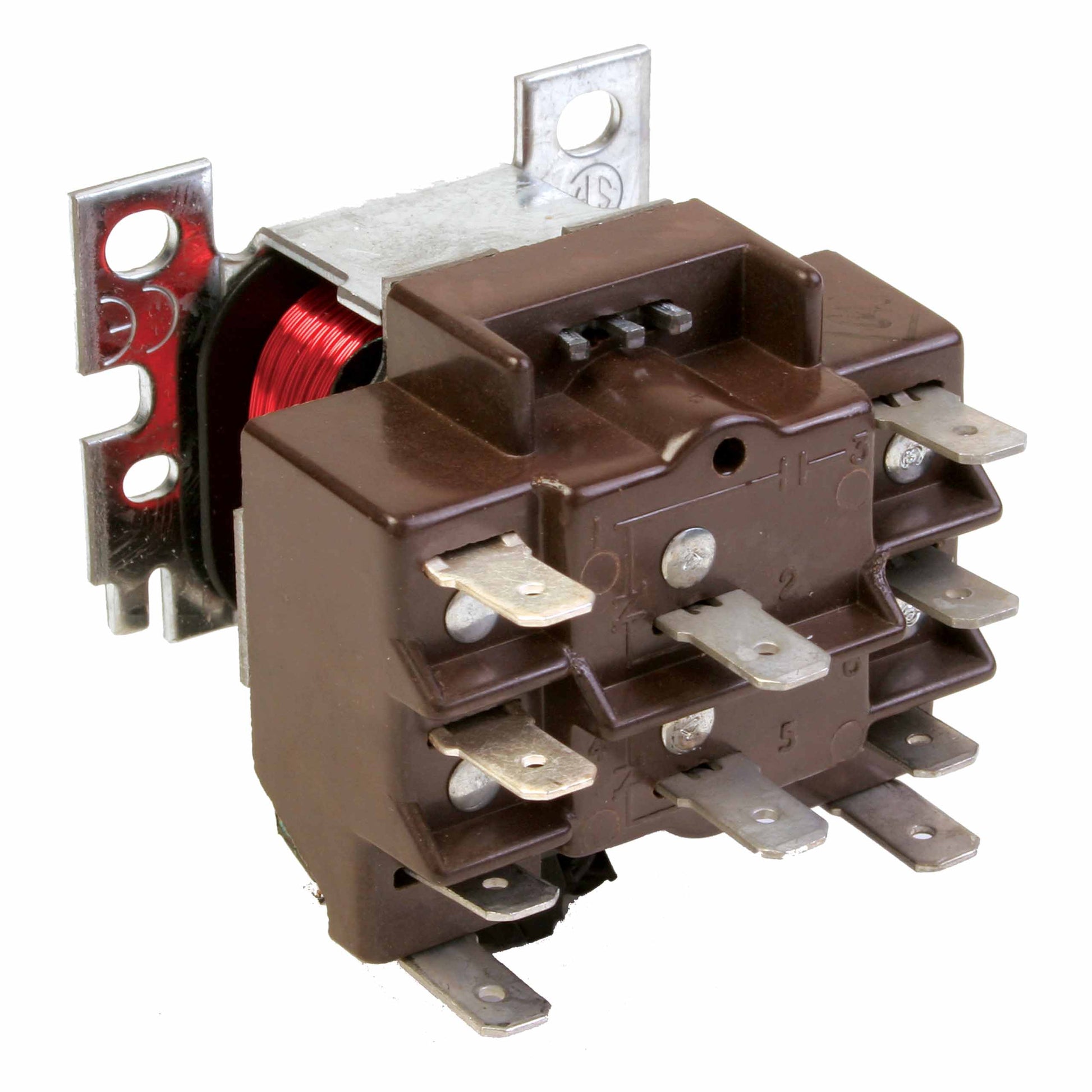

General Purpose Switching Relay from Resideo, Honeywell Home, model R4222N1002, is a compact AC operated relay designed for control circuits in refrigeration, air conditioning equipment, and vending machines. The 120 VAC coil (50/60 Hz) and 1/4 inch quick-connect terminals simplify wiring, while the DPDT configuration supports two independent circuits for versatile control. UL and CSA approvals ensure reliable performance in compliant systems.

Key ratings cover a broad range of voltages and currents to suit demanding equipment. The relay provides multiple contact ratings by voltage: 3 A at 480 VAC, 6 A at 208/240/277 VAC, 12 A at 120 VAC (full load), 18 A at 480 VAC, 35 A at 208/240/277 VAC, 60 A at 120 VAC (locked rotor), 10 A at 480 VAC, and 20.8 A at 120/208/240/277 VAC (resistive). This wide spectrum makes it suitable for a variety of refrigerant systems and light-to-medium duty loads.

Designed for durable operation, it handles temperatures from -20 to 150°F and features sturdy 1/4 inch quick-connect terminals for quick installation. Use in commercial refrigeration, HVAC equipment, or vending machines to achieve reliable, centralized switching with a compact footprint.

• Contact configuration: DPDT
• Coil voltage: 120 VAC (50/60 Hz)
• Contact voltage rating: 208/120/240/277/480 VAC
• Current ratings vary by voltage (see specs)
• Terminal type: 1/4 inch quick connect
• Compliance: UL, CSA
• Dimensions: 2-5/32 in W × 2-3/8 in D × 1-7/8 in H
• Temperature range: -20 to 150°F
• Applications: Refrigeration, HVAC equipment, vending machines
