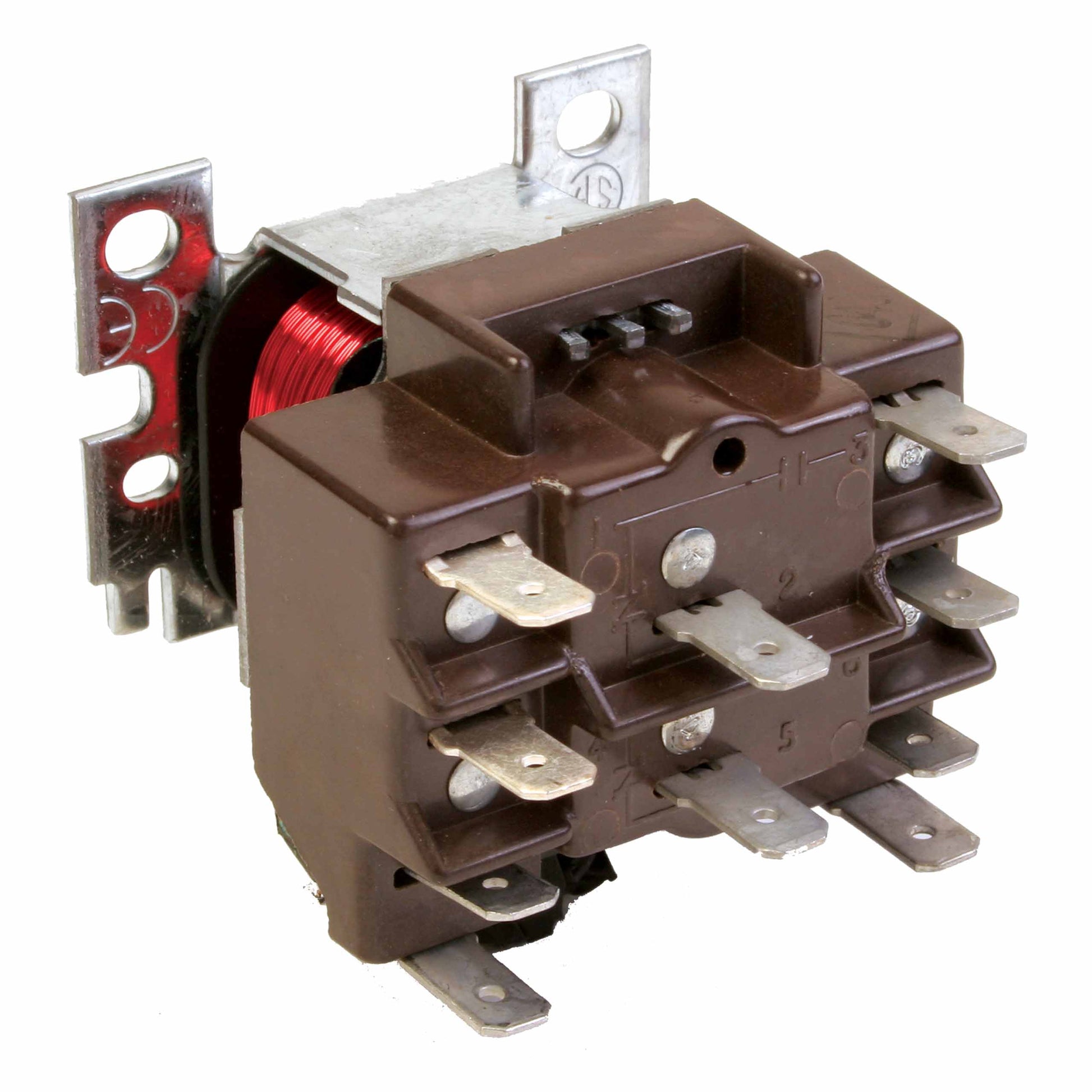

Resideo - Honeywell Home R8222B1067 General Purpose Relay

Resideo - Honeywell Home R8222B1067 General Purpose Relay is an AC operated control device designed for refrigeration and air conditioning equipment.

With SPDT contact configuration and a 24 Volt AC coil, this versatile relay delivers reliable switching across a broad voltage range (120/208/240/277/480 VAC at 50/60 Hz), making it suitable for HVAC, vending machines, and other control panels.

• Coil Voltage: 24 VAC at 60 Hz
• Contact Configuration: SPDT
• Contact Voltage Rating: 120/208/240/277/480 VAC at 50/60 Hz
• Contact Current Rating: 3 A at 480 VAC; 6 A at 208/240/277 VAC; 12 A at 120 VAC (Full Load); 18 A at 480 VAC; 35 A at 208/240/277 VAC; 60 A at 120 VAC (Locked Rotor); 10 A at 480 VAC; 20.8 A at 120/208/240/277 VAC (Resistive)
• Terminal Type: 1/4 Inch Quick Connect
• Mounting: Surface
• Approvals: UL, CSA
• Dimensions: 2-5/32" W × 2-3/8" D × 1-7/8" H
• Temperature Range: -20 to 155°F
• Applications: Refrigeration, Air Conditioning Equipment, Vending Machines
