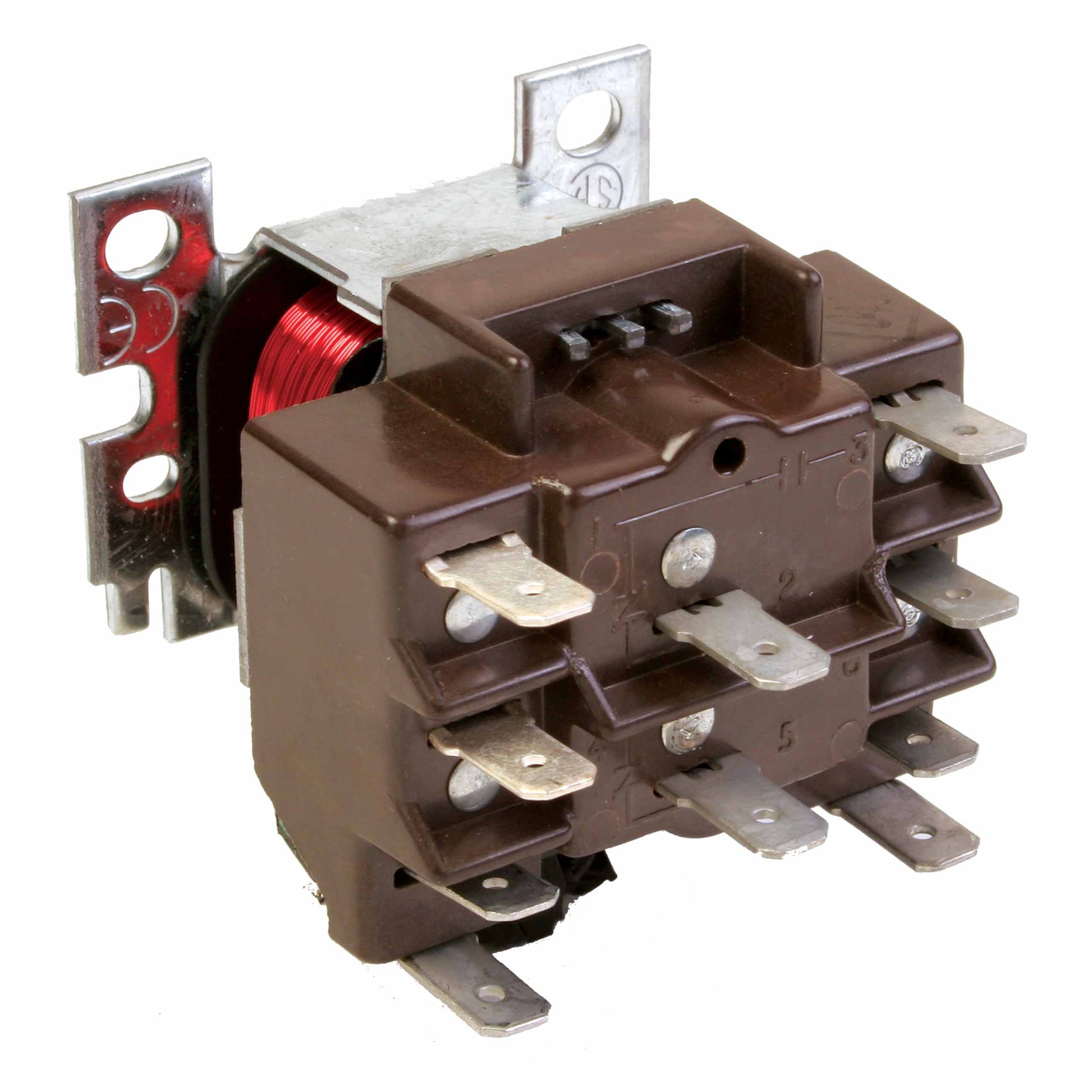

Resideo - Honeywell Home R8222D1014 General Purpose Relay

The Resideo Honeywell Home R8222D1014 General Purpose Relay is a versatile AC-operated DPDT relay ideal for refrigeration, air conditioning equipment, and vending machines. With a 24 Volt AC coil and dual-pole, dual-throw configuration, this relay delivers reliable control across a wide range of voltages and loads.

Key specs include multiple contact voltages (208/120/240/277/480 VAC at 50/60 Hz) and flexible current ratings to match your equipment, plus a compact form factor measuring 2-5/32 in W x 2-3/8 in D x 1-7/8 in H and robust temperature tolerance from -20 to 155°F. It is built for durability and safety with UL and CSA approvals.

• Contact configuration: DPDT for independent switching
• Coil voltage: 24V AC @ 50/60 Hz
• Terminal type: Double Quick Connect Spade for quick wiring
• Voltage and current range: supports 120–480 VAC with high-current ratings (up to 60 A at 120 VAC and 35 A at 208/240/277 VAC)
• Applications: Refrigeration, HVAC equipment, vending machines
• Certifications: UL and CSA listed for reliability and safety

Whether upgrading an old relay or designing a new control panel, the R8222D1014 provides dependable performance and flexible integration.
