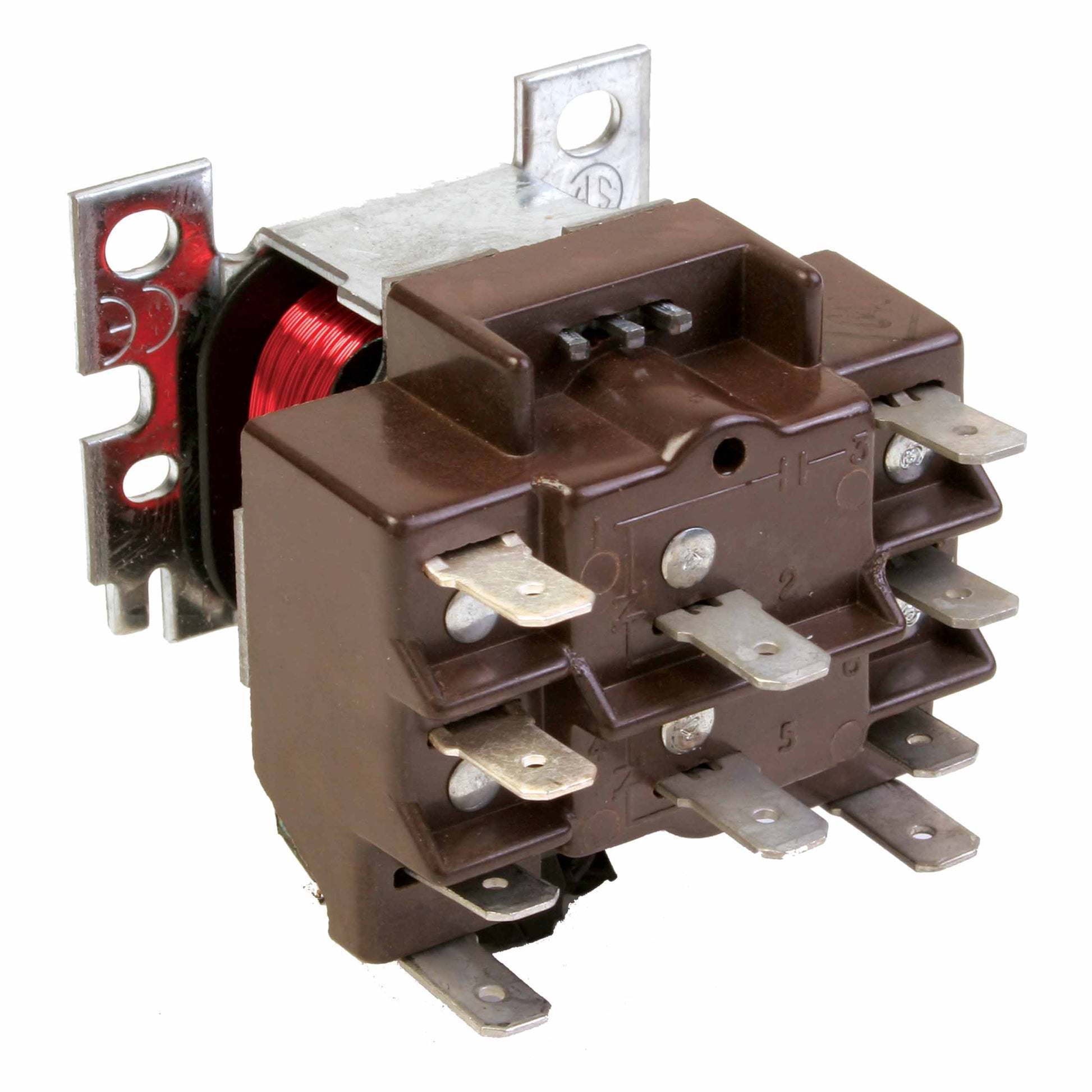

Resideo - Honeywell Home R8222N1011 General Purpose Switching Relay

General Purpose Switching Relay from Resideo – Honeywell Home R8222N1011 delivers versatile control for refrigeration, air conditioning equipment, and vending machines. This AC-operated relay features DPDT contacts for reliable two-circuit switching, a 24V AC coil, and broad compatibility with common mains voltages (208/120/240/277/480 VAC) at 50/60 Hz.

Built for rugged commercial environments, it carries UL and CSA approvals, compact dimensions, and convenient 1/4 inch quick-connect terminals. The coil and contact ratings support a range of loads: 3 A at 480V, 6 A at 208/240/277V, 12 A at 120V (Full Load), up to 60 A at 120V (Locked Rotor), and 20.8 A resistive at 120/208/240/277V. Operating temperature spans -20 to 155°F.

• Configuration: DPDT general purpose switching relay
• Coil: 24V AC, 50/60 Hz
• Contacts: DPDT; supports multiple voltage/current ratings
• Voltage rating: 208/120/240/277/480 VAC
• Current ratings: 3–60 A depending on voltage/load (see spec)
• Terminals: 1/4" quick-connect
• Approvals: UL and CSA listed
• Dimensions: 2-5/32" W × 2-3/8" D × 1-7/8" H
• Temperature range: -20 to 155°F
• Applications: Refrigeration, air conditioning equipment, vending machines
