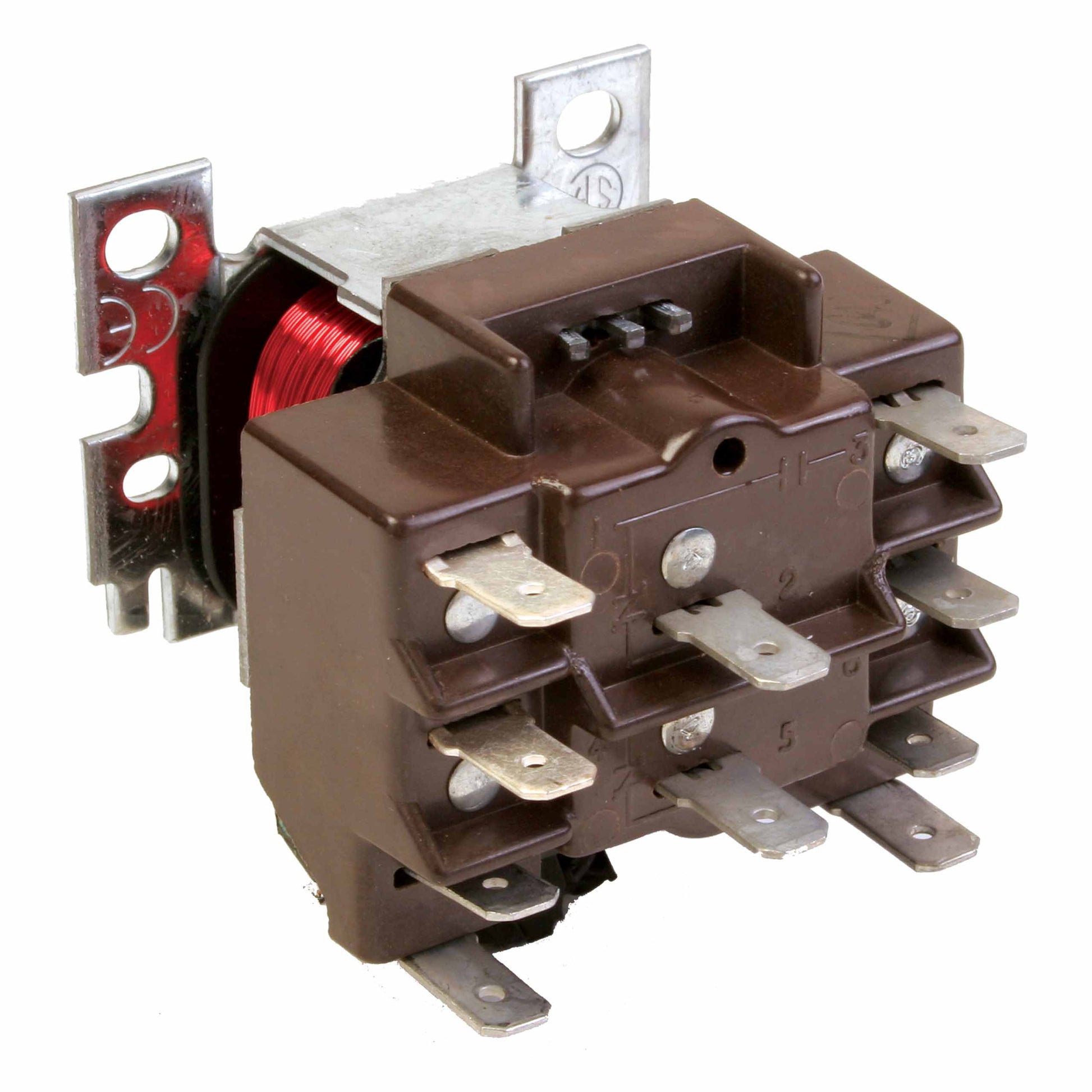

Resideo - Honeywell Home R8222U1079 General Purpose Switching Relay

The General Purpose Switching Relay from Resideo — Honeywell Home R8222U1079 is an AC-operated control designed to reliably switch loads in refrigeration, air conditioning equipment, and vending machines. This DPST relay features a 24V AC coil and supports a wide voltage range, making it easy to integrate into compact control panels while meeting safety standards.

Key specifications and features:

• Contact Configuration: DPST
• Coil Voltage: 24 V AC (50/60 Hz)
• Contact Voltage Rating: 208/120/240/277/480 VAC @ 50/60 Hz
• Current Rating (depends on voltage): up to 60 A at 120 VAC; up to 35 A at 208/240/277 VAC; up to 18 A at 480 VAC; other ratings apply per load
• Terminal Type: 1/4 inch quick connect
• Approvals: UL, CSA
• Dimensions: 2-7/64 in W × 2-3/8 in D × 1-55/64 in H
• Temperature Range: -20 to 155 °F
• Applications: Refrigeration, Air Conditioning Equipment, Vending Machines

Designed for robust performance, the R8222U1079 balances versatile load handling with dependable duty rating and compact form factor, ensuring reliable operation across HVAC and commercial equipment installations.
