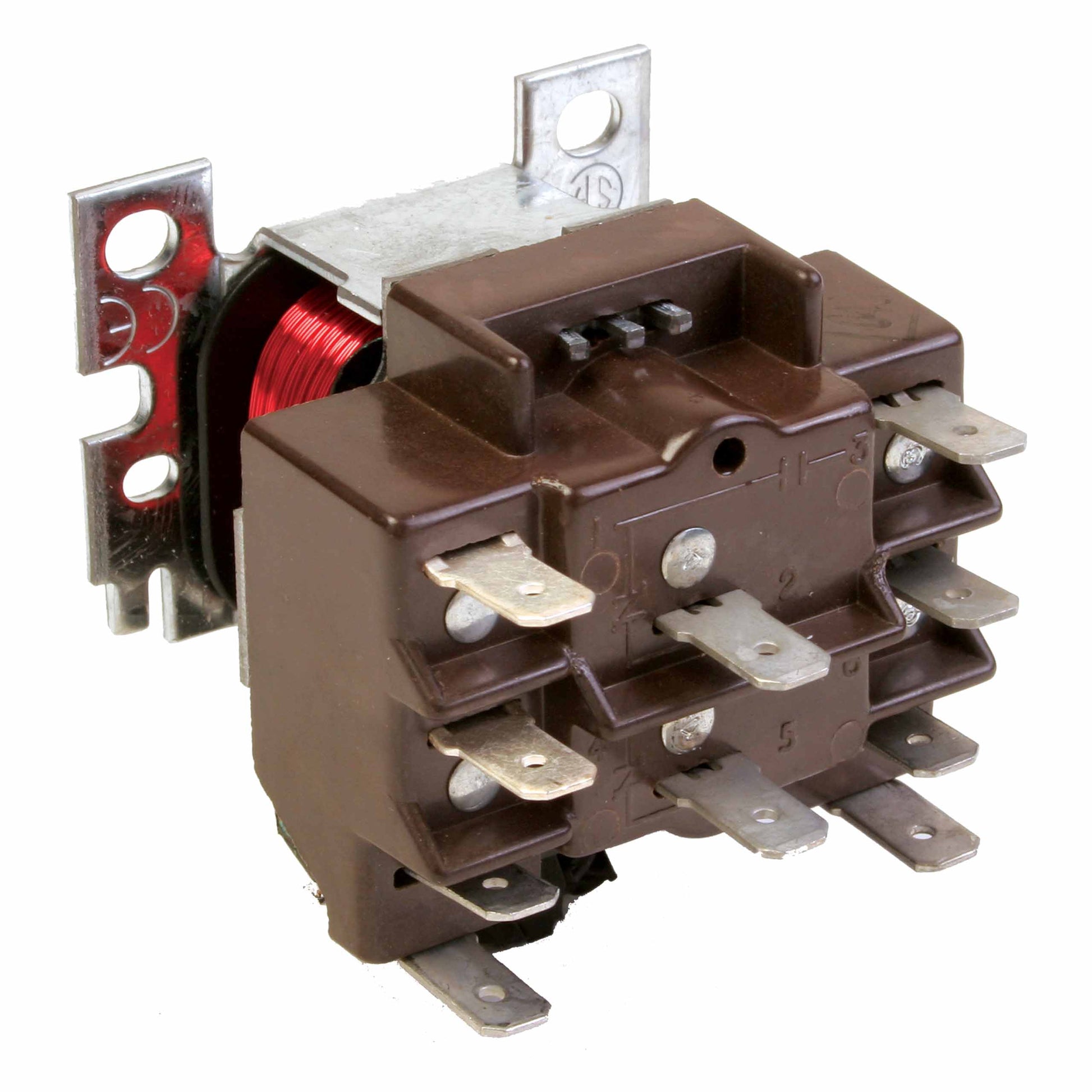

Resideo - Honeywell Home R8222V1003 General Purpose Switching Relay

The R8222V1003 General Purpose Switching Relay from Resideo – Honeywell Home delivers reliable AC control for refrigeration, air conditioning equipment, and vending machines. This AC operated relay uses DPDT contacts and a 24 VAC coil to switch circuits with versatility across a wide voltage range (208/120/240/277/480 VAC at 50/60 Hz).

Designed for tough commercial duty, it handles diverse loads with ratings including up to 12 A at 120 VAC full load, 60 A at 120 VAC and 35 A at 208/240/277 VAC (locked rotor), plus resistive loads up to 20.8 A at 120/208/240/277 VAC. Terminal connections are 1/4 inch quick connect for fast wiring. UL and CSA approvals ensure safety and compatibility with standard control panels.

Key specs and features:

• DPDT contact configuration for versatile switching
• Coil voltage: 24 VAC, 50/60 Hz
• Wide voltage support: 208/120/240/277/480 VAC
• High-load options: up to 60 A at 120 VAC, 35 A at 208/240/277 VAC
• 1/4" quick connect terminals for easy wiring
• UL and CSA approved for safety and compatibility
• Compact dimensions: 2-5/32" W x 2-3/8" D x 1-7/8" H
• Applications: refrigeration, HVAC equipment, vending machines
