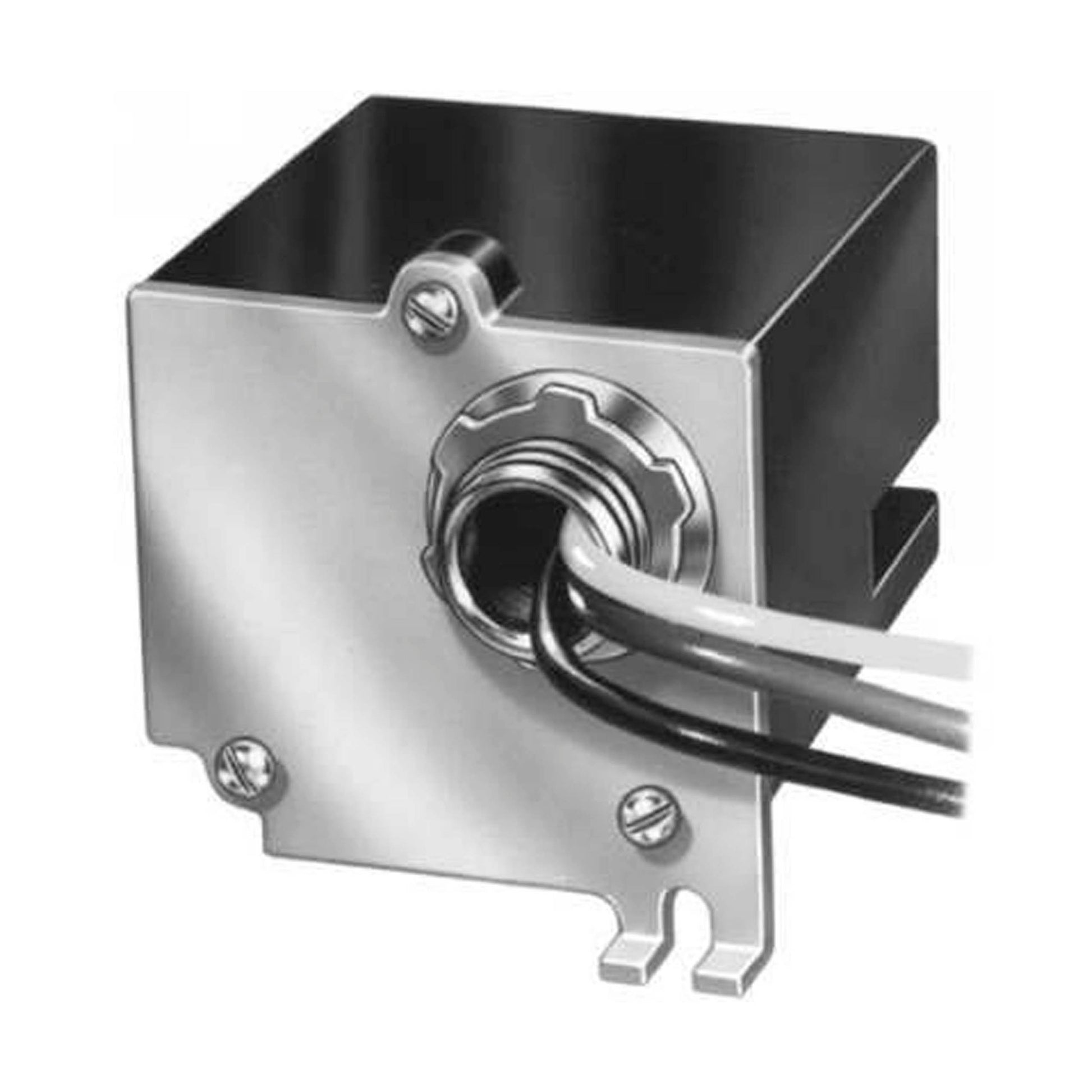

Resideo - Honeywell Home R8225A1017 Fan Relay

R8225A1017 Fan Relay from Resideo Honeywell Home is a dependable AC-operated control designed for refrigeration, air conditioning equipment, and vending machines. With SPDT contact configuration and a 24V AC coil, this relay switches 120/240 VAC loads with reliable performance in commercial HVAC applications.

Engineered for efficiency, the relay handles 3A at 120 VAC and 2A at 240 VAC (full-load/resistive), and up to 18A at 120 VAC or 12A at 240 VAC for air and motor loads. The 24V AC coil operates at 50/60 Hz, ensuring quick, accurate control in demanding environments. The compact, surface-mounted design uses lead-wire terminals for easy wiring in tight panels.

Built to last, it carries UL and CSA approvals and fits standard control panels with dimensions 2-1/2 in W x 3-7/16 in D x 2-11/16 in H. Temperature rating of 115°F expands its suitability for refrigeration and vending machine applications.

• Coil Voltage: 24V AC at 50/60 Hz
• Contact Configuration: SPDT for versatile switching
• Load Ratings: 3A @120V AC; 2A @240V AC (full-load/resistive); 18A @120V AC; 12A @240V AC (AIR)
• Voltage Rating: 120/240 VAC
• Terminals: Lead-wire terminals
• Mounting: Surface mount
• Dimensions: 2-1/2"W x 3-7/16"D x 2-11/16"H
• Approvals: UL, CSA
