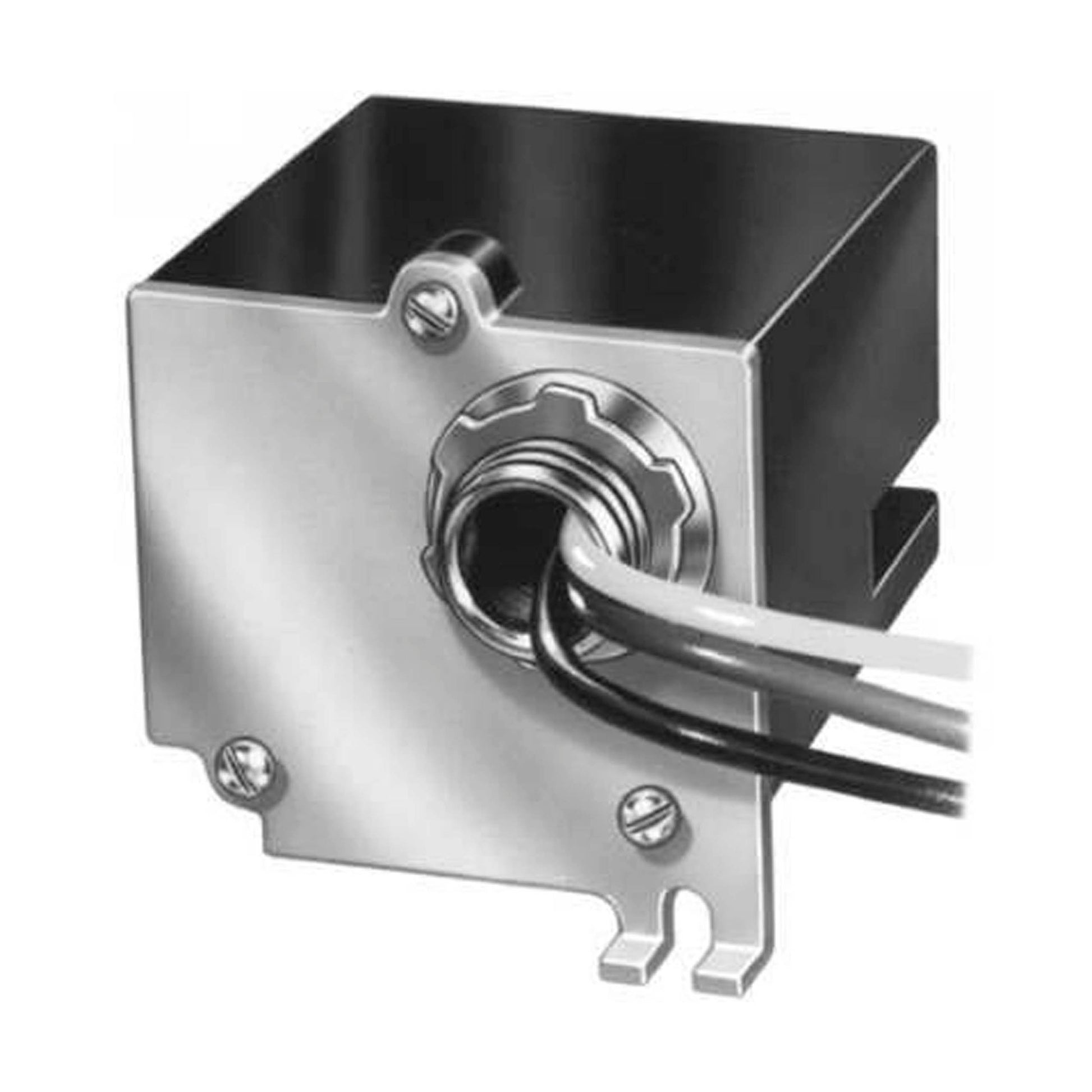

Resideo - Honeywell Home R8225D1003 General Purpose Fan Relay

General Purpose Fan Relay from Resideo – Honeywell Home R8225D1003 is an AC-operated solution with a 24V AC coil and DPDT, normally open contacts, built for refrigeration, air conditioning, and vending machines. It provides dependable control for fans, condensers, and other auxiliary loads, with robust contacts rated for both 120V and 240V systems. The compact package simplifies panel mounting and wiring, while UL and CSA approvals ensure safety and compliance in commercial environments. Designed for long service in HVAC and vending equipment, it delivers reliable operation even in demanding temperatures up to 115°F.

• Coil voltage: 24V AC at 50/60 Hz for standard HVAC control
• Contact configuration: DPDT with normally open (NO) contacts for multi-circuit switching
• Voltage rating: 120/240 VAC at 60 Hz, suitable for common refrigeration and AC loads
• Current ratings: 8A NO, 7A NC, 2A Aux at 240 VAC; 14A NO/NC, 3A Aux at 120 VAC; up to 48A NO for high-load scenarios
• Terminal type: Quick Connect leads for fast, secure wiring
• Approvals: UL and CSA certified for safety and compliance
• Dimensions: 2-1/2 in W × 3-7/16 in D × 2-11/16 in H, space-efficient
• Temperature rating: Up to 115°F ambient for HVAC environments
• Applications: Refrigeration, air conditioners, vending machines and other general-purpose control scenarios
