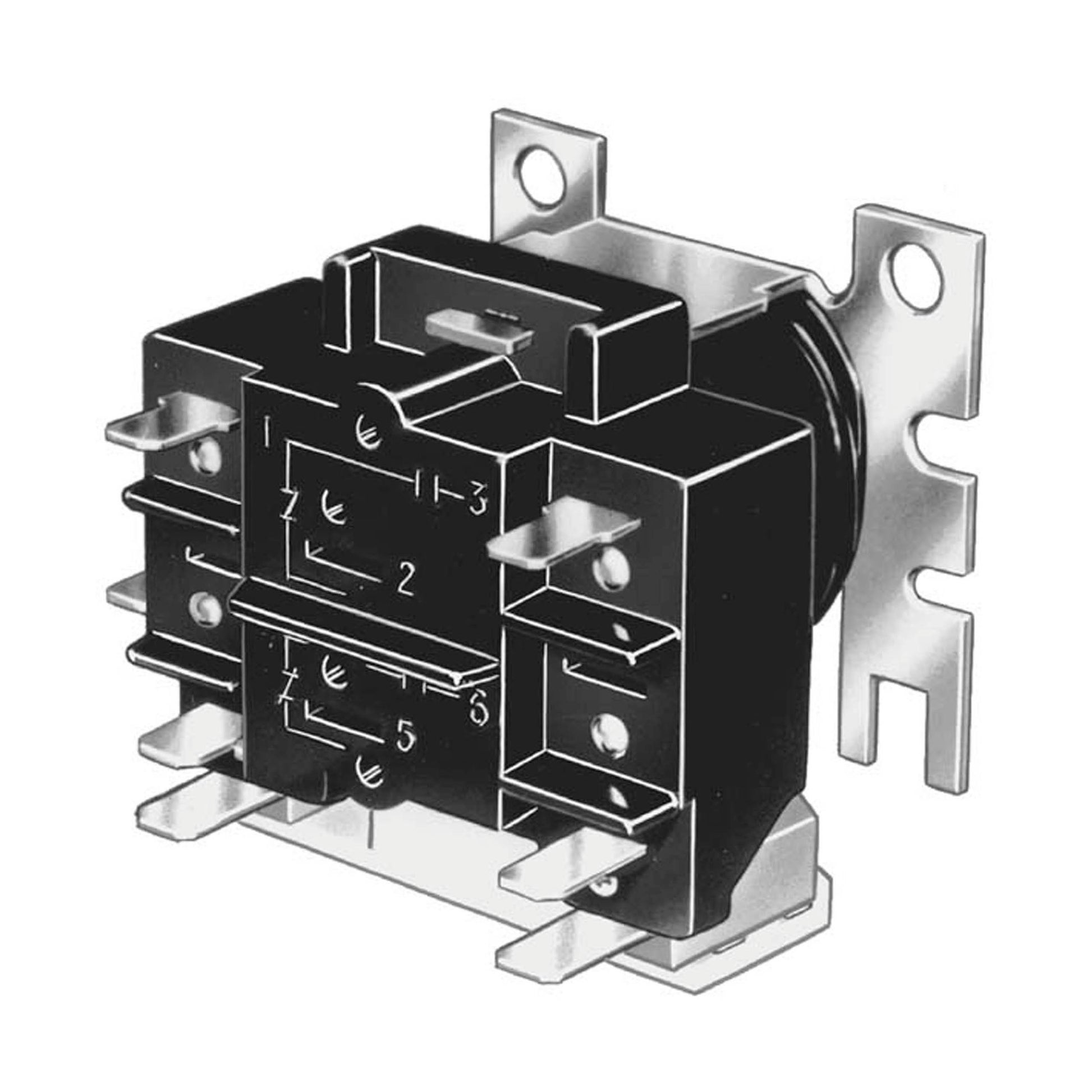

Resideo - Honeywell Home R8229A1005 Electric Heater Relay

Electric Heater Relay by Resideo – Honeywell Home R8229A1005 keeps heating controls precise and dependable. This AC operated relay uses a 24 Volt AC coil at 60 Hz to activate loads safely, delivering reliable performance for HVAC and other control applications.

Designed for versatility and durable operation, it handles a wide range of voltages and currents while maintaining compact dimensions and robust approvals.

• Contact configuration: DPST, NO
• Coil voltage: 24 VAC at 60 Hz
• Contact voltage rating: 120/208/240/277/480/600 VAC
• Current ratings (full load): 7/3.5/2.8 A; (locked rotor): 35/17.5/14 A; (resistive load): 25/12.5/10 A
• Terminal type: #10 Head Screw; Mounting: Screw mounting
• Approvals: UL, CSA
• Dimensions: 2-3/32 in W × 2-1/4 in D × 2-3/16 in H
• Temperature range: -40 to 175 °F

This relay is ideal for thermostats, control boards, and direct appliance switching, offering reliable operation in demanding HVAC environments. Its compact form factor and trusted UL/CSA approvals make it a solid upgrade for heating control systems.
