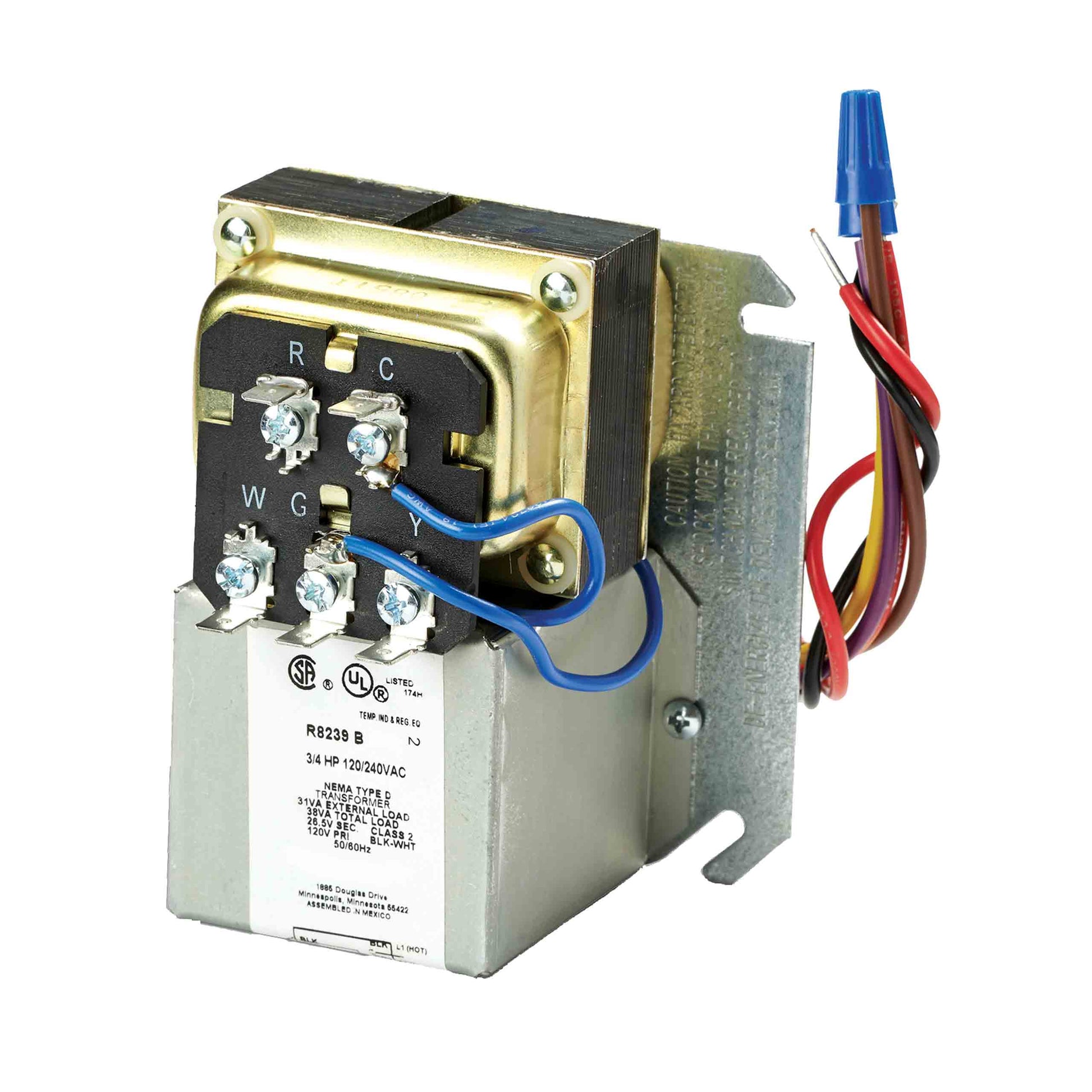

Resideo - Honeywell Home R8239B1076 Fan Control Center

Resideo - Honeywell Home R8239B1076 Fan Control Center is a dependable control solution for residential HVAC systems. This Type AC Operated unit uses a DPDT contact configuration to manage fan wiring with precision. Designed for a 4 inch by 4 inch junction box and housed in a NEMA D enclosure, it delivers durable performance in tight service spaces. UL and CSA approvals provide confidence in safety and reliability for home installations. Ideal for replacing aging controls, it supports standard 120/208/240 VAC operation at 50/60 Hz and integrates smoothly into new builds as part of a comprehensive air-handling setup.

Key specs ensure versatile compatibility and robust control: coil rating options for inrush and sealed applications, plus a power rating of 12 watts and 3/4 horsepower. The supply rating of 50 volt-amps with a 26.5-volt secondary delivers reliable switching for modern fans. This fan control center uses lead-wire terminals for straightforward wiring, making installation quick and dependable in residential or light commercial projects.

• Type: AC Operated
• Contact Configuration: DPDT
• Voltage Rating: 120/208/240 VAC @ 50/60 Hz
• Enclosure & Mounting: NEMA D enclosure, 4" x 4" junction box
• Approvals: UL, CSA
• Dimensions: 4-3/16"W x 3-3/32"D x 4-1/2"H
• Coil Rating: 20 VA max / 17 VA nominal (inrush); 10 VA max / 9 VA nominal (sealed)
• Power Rating: 12 W, 3/4 HP
• Supply Rating: 50 VA, 26.5 V (secondary)
