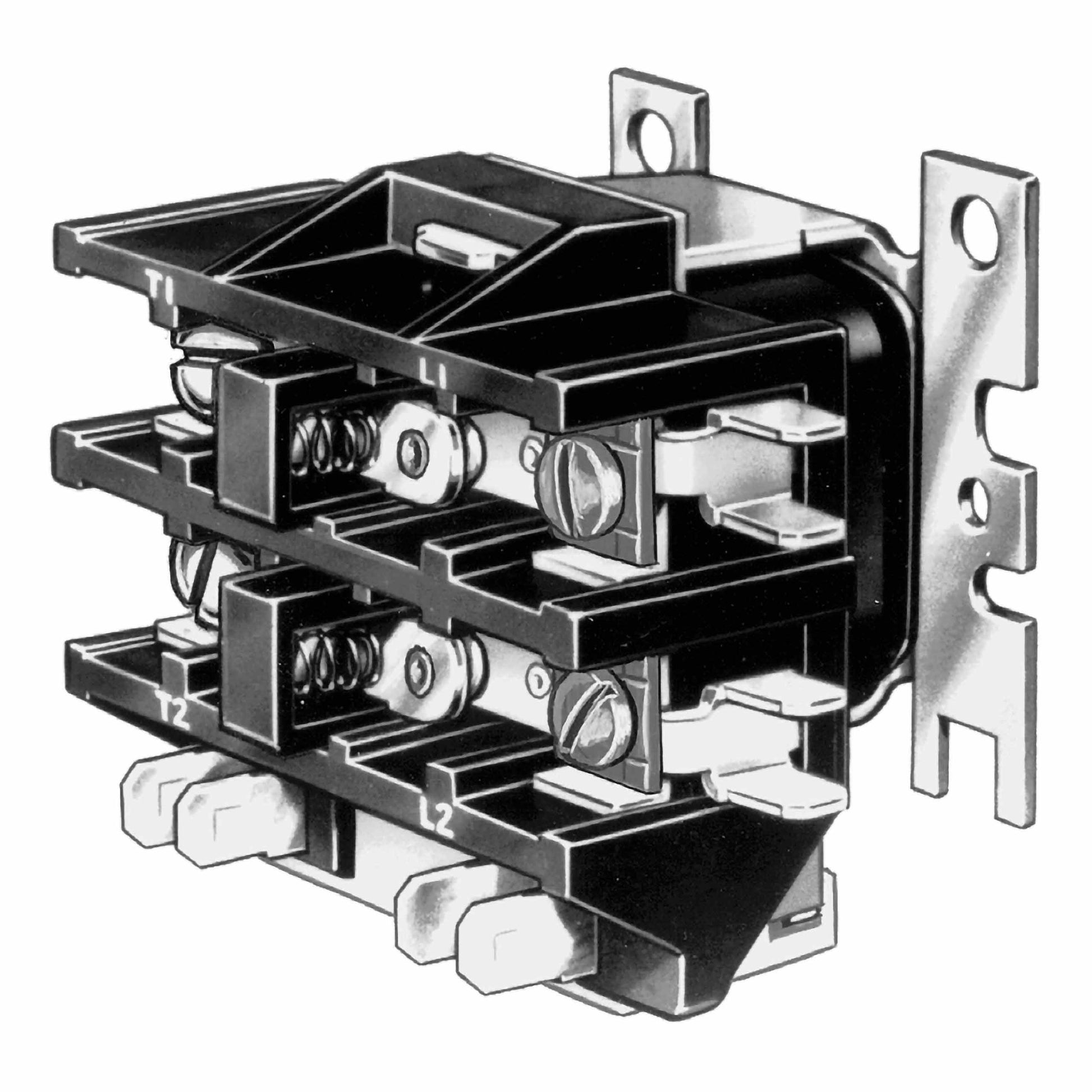

Resideo - Honeywell Home R8246A1038 Electric Heat Contactor

The R8246A1038 Electric Heat Contactor from Resideo/Honeywell Home delivers reliable, 24V AC coil control for two-pole switching in heating systems. The AC operated contactor is designed for dependable furnace performance and easy integration with standard controls.

Featuring a 2-pole DPST configuration, this unit handles up to 240/277 Volt AC and supports up to 48 Amp resistive loads and 30 Amp full-load current. With a 24 Volt AC coil, it provides precise, energize-on-coil operation and solid switching for electric heat circuits.

• 2-pole DPST configuration for reliable control
• Coil voltage: 24 VAC (AC operated)
• Contact voltage rating: 240/277 VAC
• Current rating: 48 A resistive, 30 A full load
• Terminal type: (2) 1/4 inch Quick Connect, #10 terminal clamp screw
• Mounting: furnace enclosure
• Dimensions: 2-5/16 in W x 3-5/16 in D x 2-3/16 in H
• Temperature rating: -4 to 149°F

Ideal for upgrading or replacing older contactors in electric heating equipment, the R8246A1038 combines rugged construction with precise control. Trust in Resideo/Honeywell Home for durable, compatible performance.
