Resideo - Honeywell Home R8285A1048 Fan Control Center

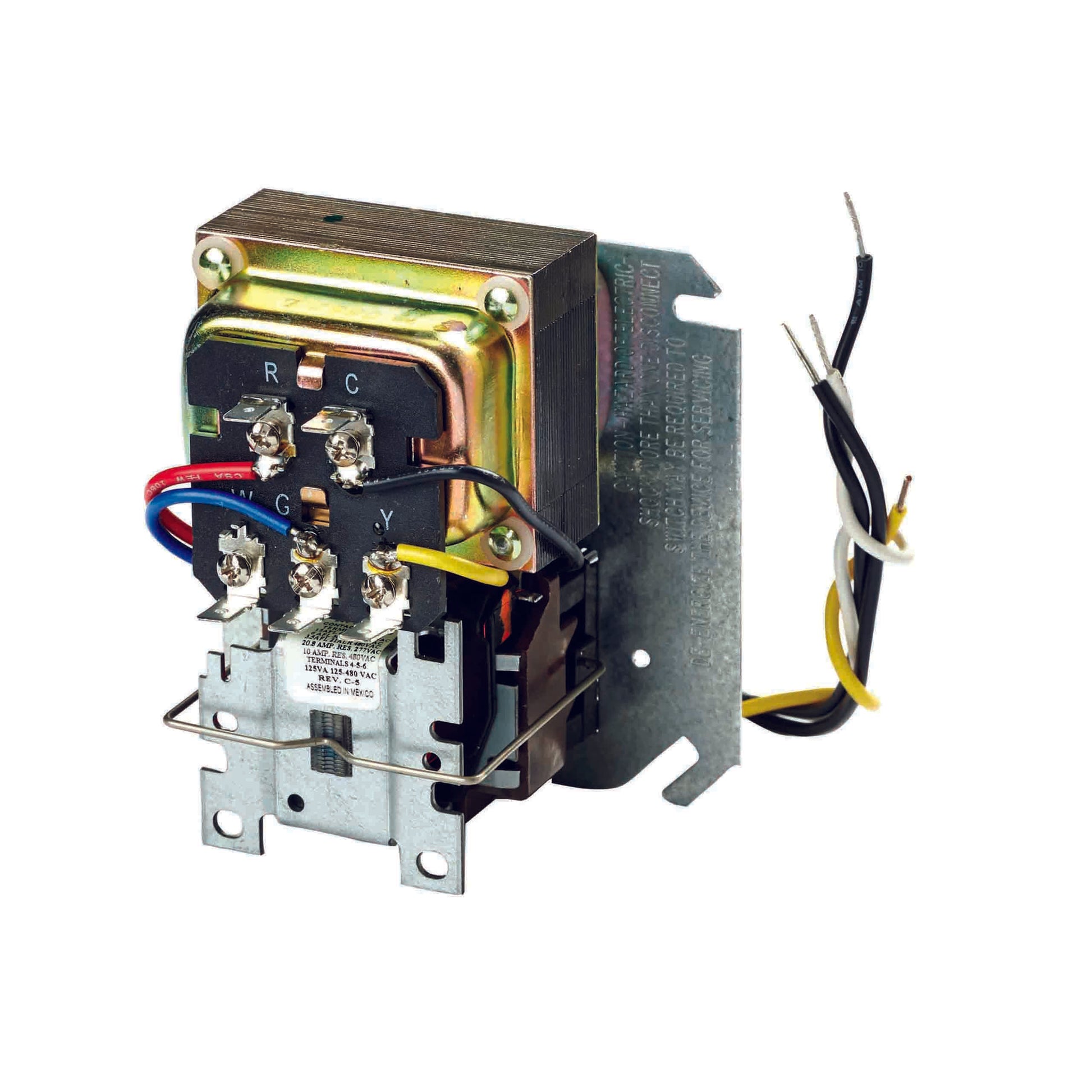

Fan Control Center for precise HVAC control, the Resideo Honeywell Home R8285A1048 is an AC operated fan control center that powers and switches fan circuits with reliability. It is rated for 120 Volt AC at 50/60 Hz and handles 12 Amp full load (60 Amp locked rotor), making it ideal for residential furnace and air-handler applications.

The SPDT contact configuration provides flexible switching, while lead-wire terminals simplify wiring. The unit mounts in a 4 inch x 4 inch junction box and measures 4-1/2 inch W x 2-13/16 inch D x 4-3/16 inch H. It is UL and CSA approved, ensuring adherence to safety standards.

Key electrical specs include a coil rating of 20 VA maximum inrush and 9 VA sealed, power rating of 11 watts (3/4 HP), and supply rating of 40 VA with a 26.5 V secondary. These specifications support robust, reliable fan control in modern HVAC systems.

• Type: AC Operated
• Contact Voltage: 120V AC at 50/60 Hz
• Contact Current: 12 A full load; 60 A locked rotor
• Contact Configuration: SPDT
• Mounting: 4x4 inch junction box
• Terminals: Lead-wire
• Approvals: UL, CSA
• Compact dimensions: 4-1/2" W x 2-13/16" D x 4-3/16" H
