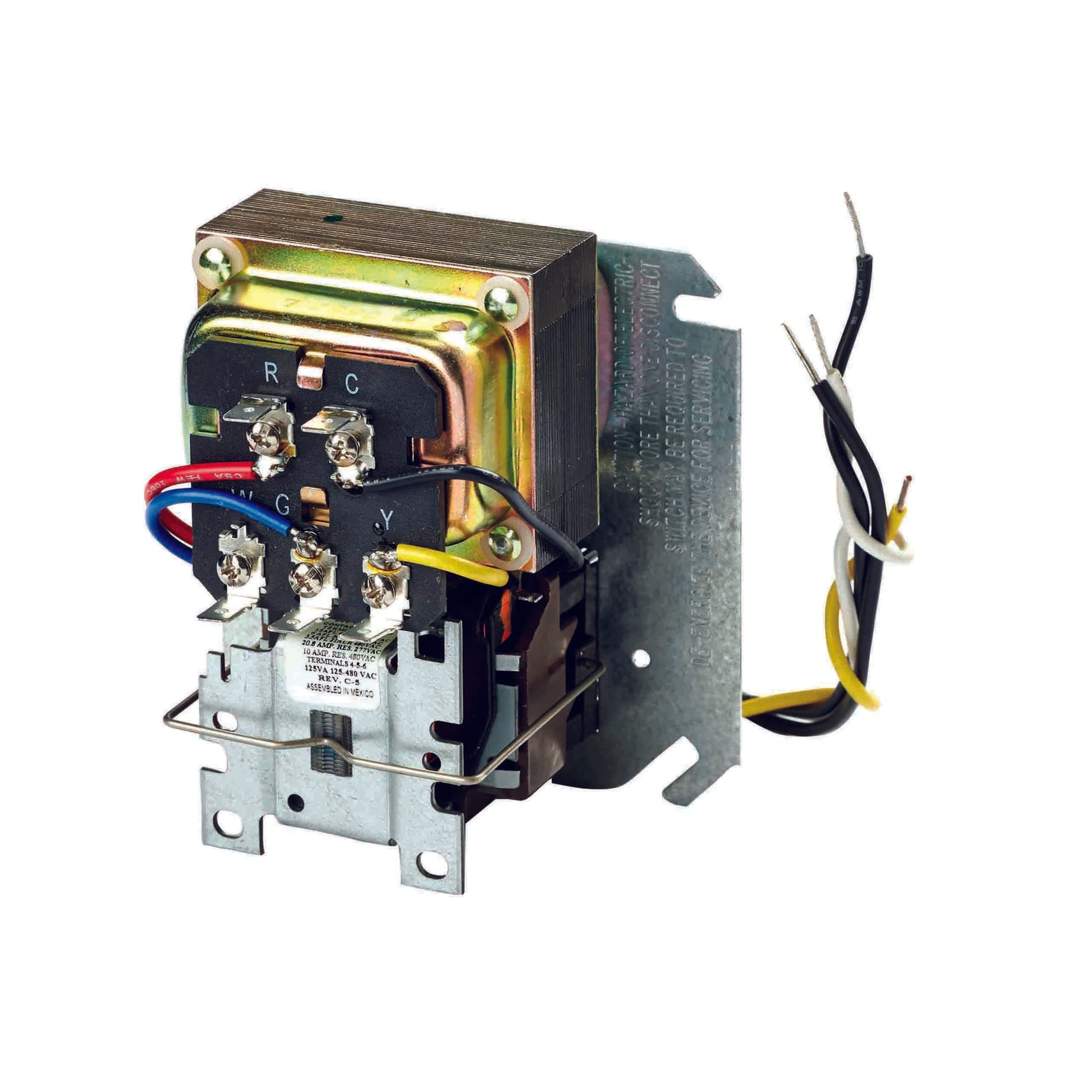

Resideo - Honeywell Home R8285B1053 Fan Control Center

The R8285B1053 Fan Control Center from Resideo/Honeywell Home is an AC-operated control center designed for dependable furnace and air-handler fan management. The R8285B1053 Fan Control Center supports 120/208/240 VAC at 50/60 Hz and uses a DPDT contact configuration to switch blower operation with precision and reliability.

Built for performance, this unit handles 12 A full-load and 60 A locked-rotor currents, while its compact enclosure fits in standard 4x4 inch junction boxes. It carries UL and CSA approvals for safe residential or light commercial use. The coil ratings cover up to 20 VA inrush and 9 VA sealed, delivering 11 W of power and up to 3/4 HP to drive airflow. Ideal for quiet, dependable operation in everyday HVAC setups, it pairs well with standard components thanks to its lead wire terminals and durable construction.

• Configuration: DPDT contact configuration for dual switching
• Voltage & Frequency: 120/208/240 VAC at 50/60 Hz
• Current Rating: 12 A full load, 60 A locked rotor
• Mounting: Fits 4" x 4" junction box
• Approvals: UL and CSA listed
• Dimensions: 4-1/2" W x 2-13/16" D x 4-3/16" H
• Coil & Power: 20 VA inrush, 9 VA sealed; 11 W power; 3/4 HP
• Terminals: Lead wire terminals for easy wiring
