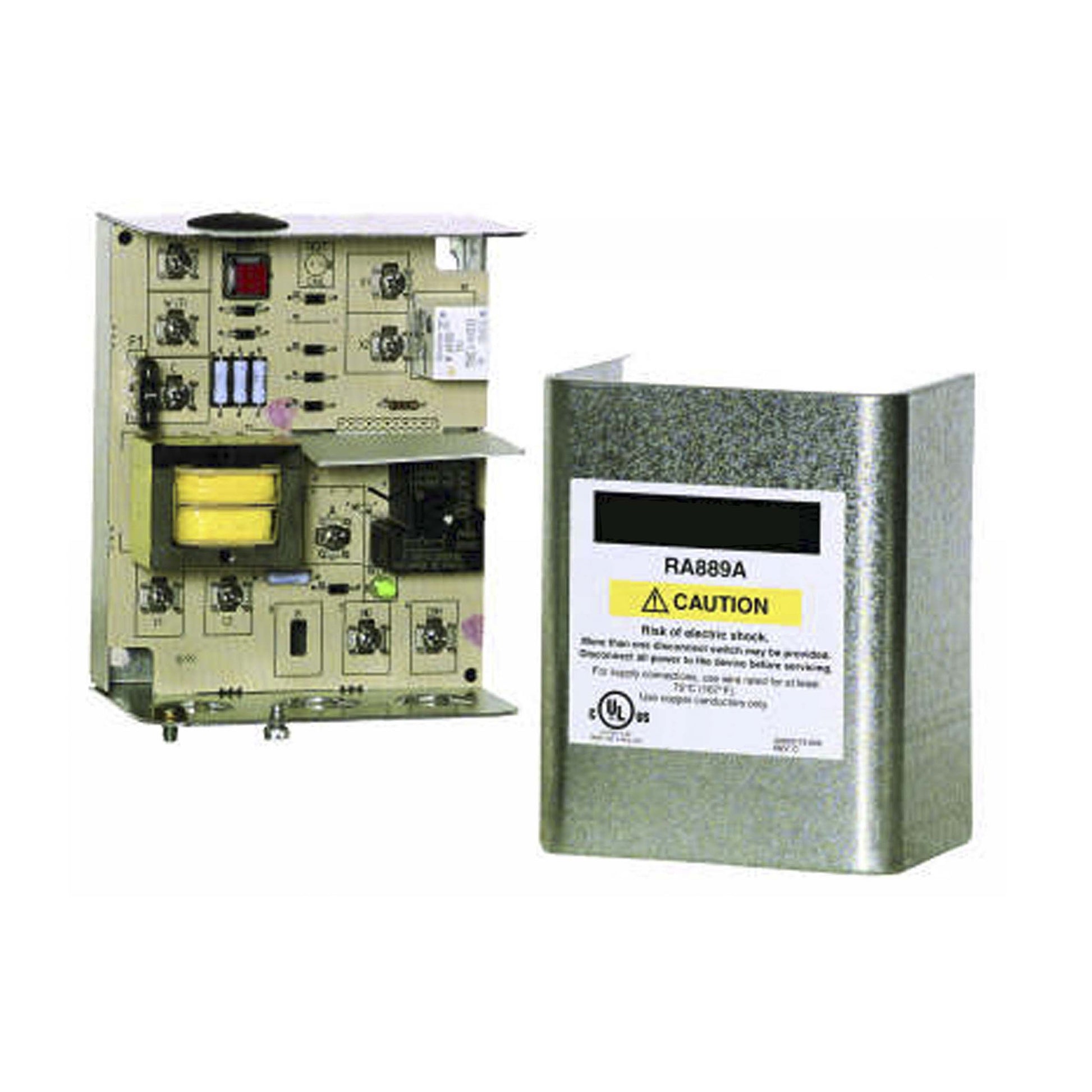

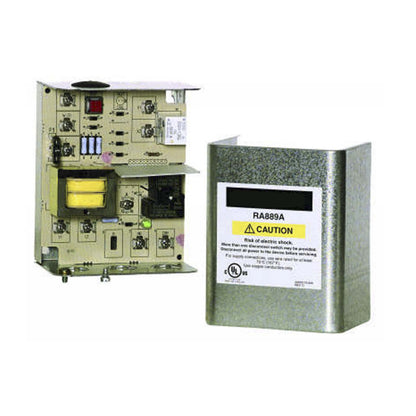

Resideo - Honeywell Home RA889A1001 Switching Relay

The RA889A1001 Switching Relay from Resideo - Honeywell Home delivers dependable control for hydronic systems and low-voltage controllers. This AC/DC operated relay uses a SPDT contact configuration to switch circuits with precision and reliability.

Designed for 120V AC at 60 Hz and a 24V AC coil, it supports up to 15 A full-load and 30 A locked rotor on the switching contacts. The unit includes an integral transformer and enclosure to simplify installation in compact control panels.

• Type: AC/DC operated
• Contact configuration: SPDT
• Coil voltage: 24V AC (60 Hz)
• Contact ratings: 15 A full-load at 120V AC; 30 A locked rotor
• Supply voltage: 120V AC, 60 Hz
• Includes: integral transformer and enclosure
• Dimensions: 4-7/16 in W x 3-1/2 in D x 6-1/4 in H
• Temperature range: -20 to 120°F
• Humidity range: 0 to 90% RH
• Applications: hydronic control and low voltage controller
