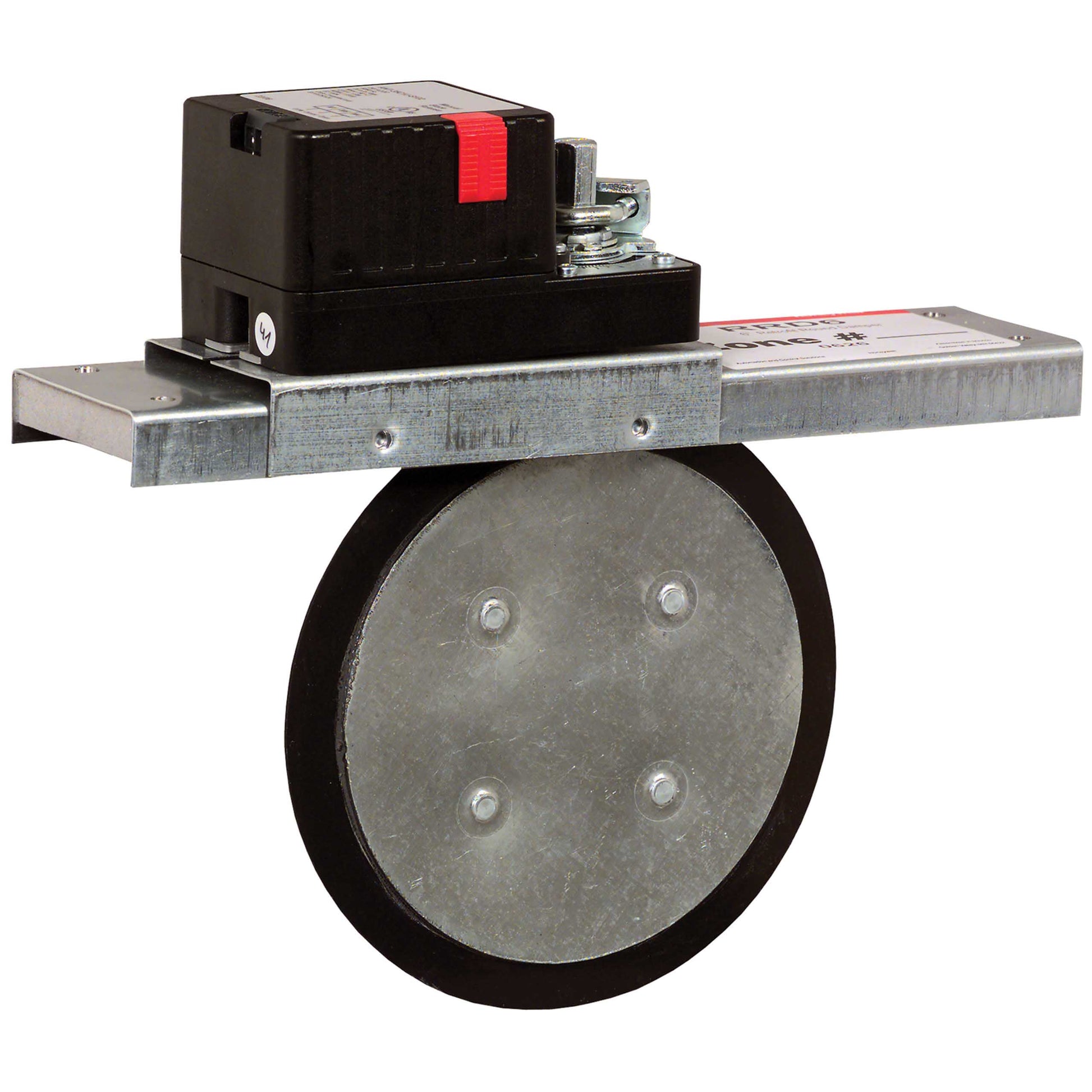

RRD5 Retrofit Damper is a compact, 5-inch diameter damper designed for retrofit installations in heating and cooling systems. This round retrofit damper features an 18 gauge frame and a 20 gauge galvanized steel blade, ensuring durable performance across temperature ranges.
With direct shaft mounting and a 24V AC motor, it delivers reliable airflow control in tight spaces. The gasket is Black EPDM for leak-tight closure, while the unit offers power-open/close operation and a 90-second travel time.
Designed for harsh environments, it withstands an ambient temperature range from -40 to 122 F, and is built to UL and NEMA 1 standards.
- Duct size: 5" diameter round retrofit
- Frame/Blade: 18 GA frame; 20 GA galvanized steel blade (G60/G90)
- Gasket: Black EPDM rubber
- Motor and power: 24V AC, 50/60 Hz; Power Open/Close; 45 in-lb torque; 1.5 W
- Rotation and timing: 90-degree angular rotation; 90-second motor timing
- Leakage and pressure: Leakage 3.4% at 0.5" WC (Closed); Pressure drop <0.05" WC (Open)
- Mounting: Direct connection to damper shaft
- Standards and temp: UL, NEMA 1; -40 to 122 F ambient
- Applications: Heating and cooling systems
