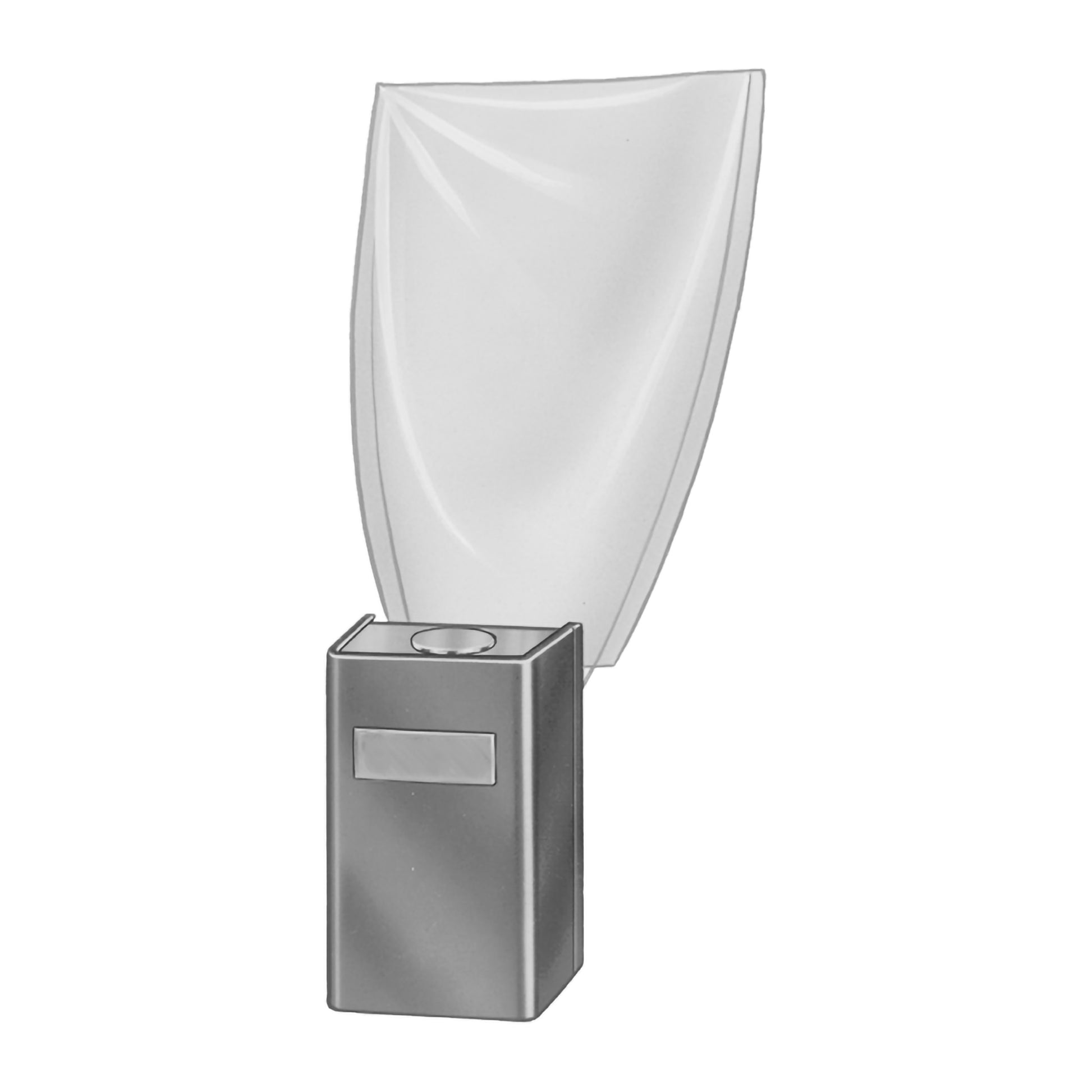

Resideo - Honeywell Home S688A1007 Air Cleaner Sail Switch
Resideo - Honeywell Home S688A1007 Air Cleaner Sail Switch
Low stock: 4 left
Couldn't load pickup availability
SKU:2750
View full details
![Resideo - Honeywell Home S688A1007 Air Cleaner Sail Switch — New England Supply House spec card [NESH-SPEC-CARD-V2]](http://newenglandsupplyhouse.com/cdn/shop/files/spec-9032894021854.png?v=1782845895&width=1445)
Air Cleaner Sail Switch from Resideo - Honeywell Home S688A1007 delivers reliable control for air cleaners, humidifiers, and multi-speed fan systems.
Designed for versatile HVAC applications, it features SPDT operation, a 24/120/240 VAC voltage rating, and broad current capability to handle full-load and resistive loads in demanding environments.
Insertion length is 10 inches with compact dimensions of 3-3/4" W x 2" D x 2-15/16" H. Temperature ratings are 125°F (Switch) and 170°F (Sail), and a durable polyester film body supports long service life.
UL and CSA approvals provide trusted safety and compatibility with modern systems. This sail switch is suitable for use in air cleaners, air flow switches, humidifiers, multi-speed fans, inaccessible air handlers, and fan motors.
- SPDT contact configuration for versatile control
- Voltage rating 24/120/240 VAC with adaptable current specs
- Temperature ratings 125°F (Switch) and 170°F (Sail)
- Insertion length 10 inches; compact footprint
- Durable body polyester film; UL and CSA approved
- Applications Air Cleaner, Air Flow Switch, Humidifier, Multi-Speed Fan, Inaccessible Air Handler, Fan Motor
Specifications
| Size | 3-3/4 Inch Width x 2 Inch Depth x 2-15/16 Inch Height |
|---|---|
| Temperature Rating | 125 Deg F (Switch), 170 Deg F (Sail) |
| Voltage Rating | 24/120/240 Volt AC |
| Current Rating | 2 Amp at 24/120 Volt AC, 1 Amp at 240 Volt AC (NO), 1 Amp at 24/120 Volt AC, 0.5 Amp at 240 Volt AC (NO) Full Load, 12 Amp at 24/120 Volt AC, 6 Amp at 240 Volt AC (NO), 6 Amp at 24/120 Volt AC, 3 Amp at 240 Volt AC (NC) Locked Rotor, 5 Amp at 24/120 Volt AC, 2.5 Amp at 240 Volt AC (NO), 2.5 Amp at 24/120/240 Volt AC (NC) Resistive |
| Application | Air Cleaner, Air Flow Switch, Humidifier, Multi-Speed Fan, Inaccessible Air Handler, Fan Motor |
| Body Material | Polyester Film |
| Approvals | UL, CSA |
| Contact Configuration | SPDT |
