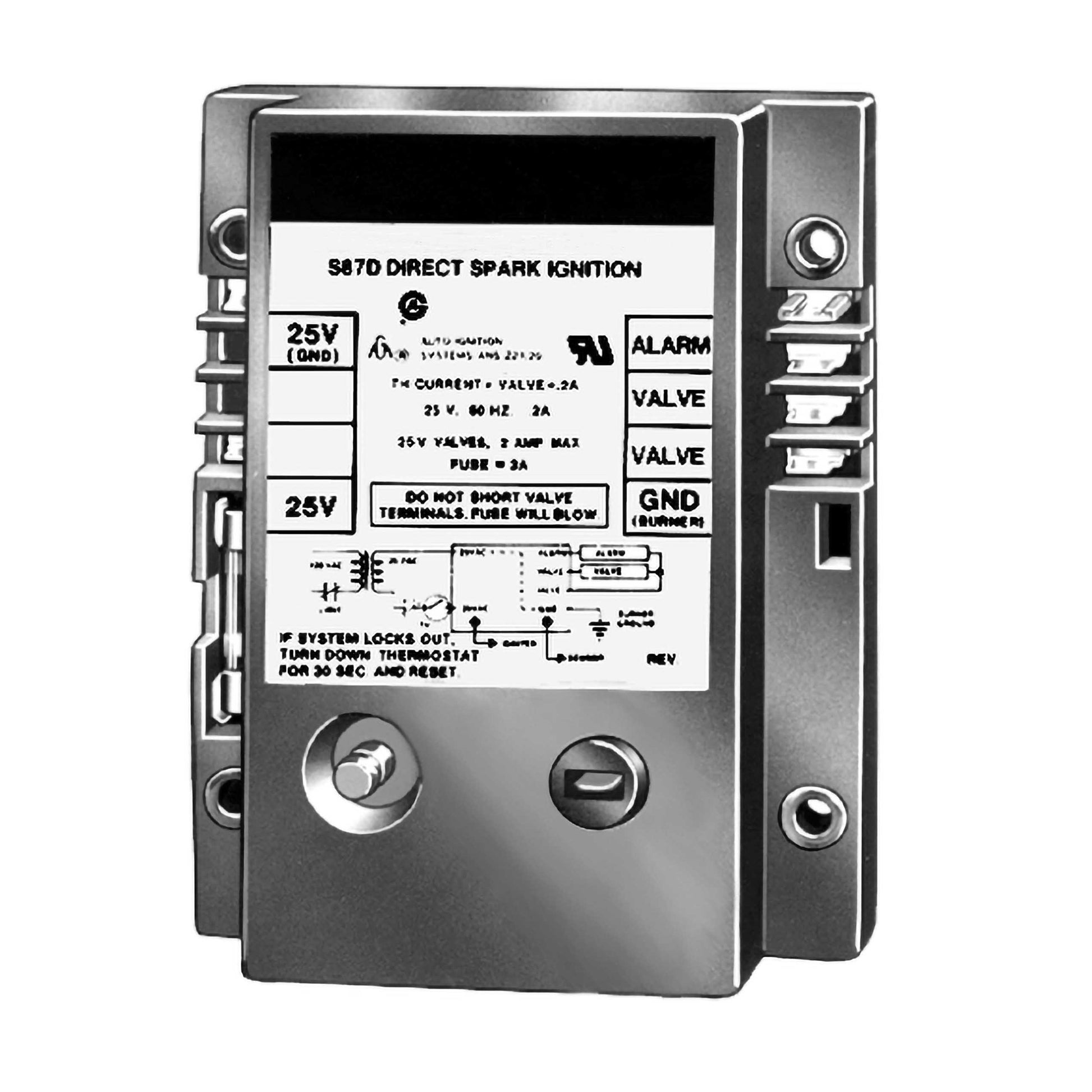

Resideo - Honeywell Home S87D1004 Ignition Control Module

Ignition Control Module from Resideo – Honeywell Home S87D1004 delivers reliable direct spark ignition for gas-fired heating systems. This electronic ignition module supports natural gas and liquid propane, integrating direct spark, pilot assistance, and a two-rod flame sense for fast starts, safe operation, and accurate flame monitoring in furnaces, boilers, and other heating appliances. Built to endure extreme temperatures, it operates across -40 to 175°F and is CSA approved for safety and compatibility in residential and commercial installations.

• Type: Direct Spark, Electronic, Pilot
• Fuel: Natural/Liquid Propane Gas
• Flame Sense: Two Rod
• Ignition Source: Internal High Voltage Spark Generator
• Ignition Sequence: 1-Trial; 6s Trial Time
• Flame Failure: 0.8s at 5 μA; Re-Ignition 0.8s
• Valve Rating: 2A at 24V AC
• Power: 24V AC, 60 Hz
• Size: 4-1/16" W x 1-15/16" L x 5-1/4" H
• Temp Range: -40 to 175°F
• Applications: Gas Fired Furnace, Boiler, Heating Appliance
• Compliance: CSA; Includes Alarm Terminal; Lockout Time 6s

Designed for durability and compatibility with existing systems, this ignition control module provides dependable performance across a wide temperature range and fuel types, making it a smart choice for service technicians and homeowners alike.
