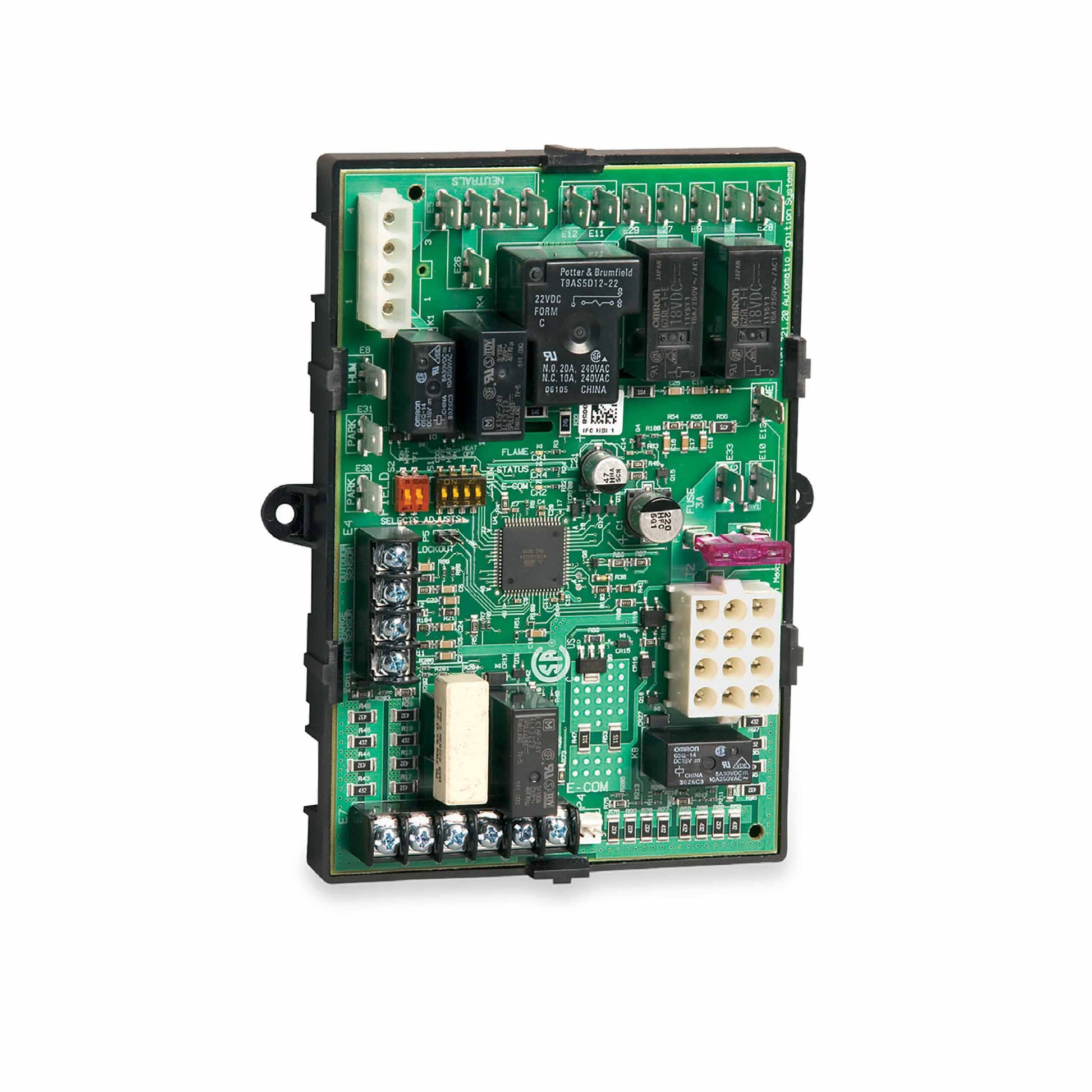

Resideo - Honeywell Home S9200U1000 Ignition Control Module

The Resideo - Honeywell Home S9200U1000 Ignition Control Module is a universal hot surface ignition control engineered for 1-stage warm air furnaces. With integrated flame sensing, this module delivers reliable ignition sequences and rapid fault detection to keep your furnace running smoothly.

Key features include a flexible ignition sequence of 2 or 3 trials, adjustable ignition trial times of 4/6/8 seconds, and a 30-second prepurge—all designed to minimize burner cycling while maximizing safety. The module supports line voltage 120V AC (60 Hz) and a low control voltage option of 24V, with a wide operating temperature range from -40 to 175°F.

• Type: Universal, Hot Surface
• Flame Sense: Integrated
• Ignition Sequence: 2 or 3 trials
• Ignition Trial Time: 4/6/8 seconds
• Prepurge Time: 30 seconds
• Flame Failure Response Time: 2 seconds at 1 microamp
• Power Rating: 24V (low) / 120V AC at 60 Hz
• Temperature Range: -40 to 175°F
• Application: 1-stage warm air furnace
• Igniter Current: 5A at 120V AC
• HSI Warm Up Time: 17/27 or 30/30 seconds
• Includes: (3) LEDs

Designed for dependable performance and straightforward installation, this ignition module helps ensure consistent starts, reduces nuisance outages, and supports efficient, reliable heating in residential systems.
