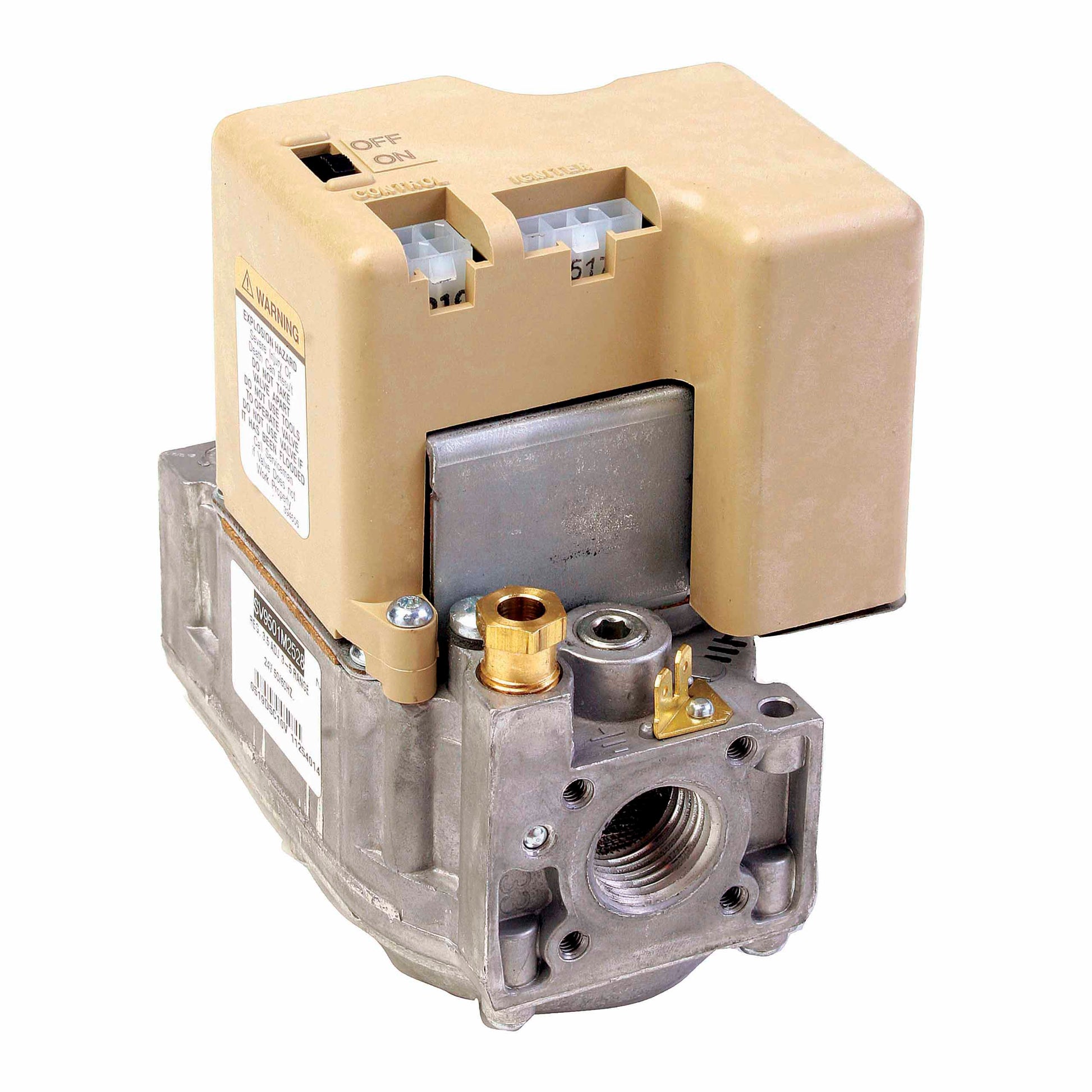

Resideo - Honeywell Home SV9501M2528 Gas Valve

The Resideo Honeywell Home SV9501M2528 gas valve is a high-precision control solution for residential and light commercial heating systems. With a standard opening, straight-through design and a 1/2 inch nominal size, this gas valve delivers reliable fuel flow and easy installation.

Powered by 24 V AC (50/60 Hz) and rated for -40 to 175 Deg F, it performs reliably across demanding environments. It supports up to 1/2 psi pressure and arrives with a Natural to Liquid Propane Conversion Kit and an Extension Harness for flexible fuel configurations and future upgrades.

• End connections: Threaded x Threaded
• Nominal size: 1/2 Inch
• Input supply: 24V AC at 50/60 Hz
• Temperature rating: -40 to 175 Deg F
• Pressure rating: 1/2 PSI
• Inclusions: Natural to Liquid Propane Conversion Kit; Extension Harness
• Applications: Residential Furnace; Rooftop Furnace; Residential Boiler; Unit/Infrared/Space Heater; Commercial Cooking Unit
• Ignition & safety: Intermittent Hot Surface Pilot; Flame Failure 16 Seconds at 3 Microamps; Ignition Trial Time 90 Seconds
• Mounting & dimensions: 0 to 90 Degree Vertical Installation; Overall 4.1" L x 4.9" H; End-to-End Distance 3.2"

CSA-listed and built for dependable operation, this valve enhances efficiency and safety across heating setups while ensuring compliant performance.
