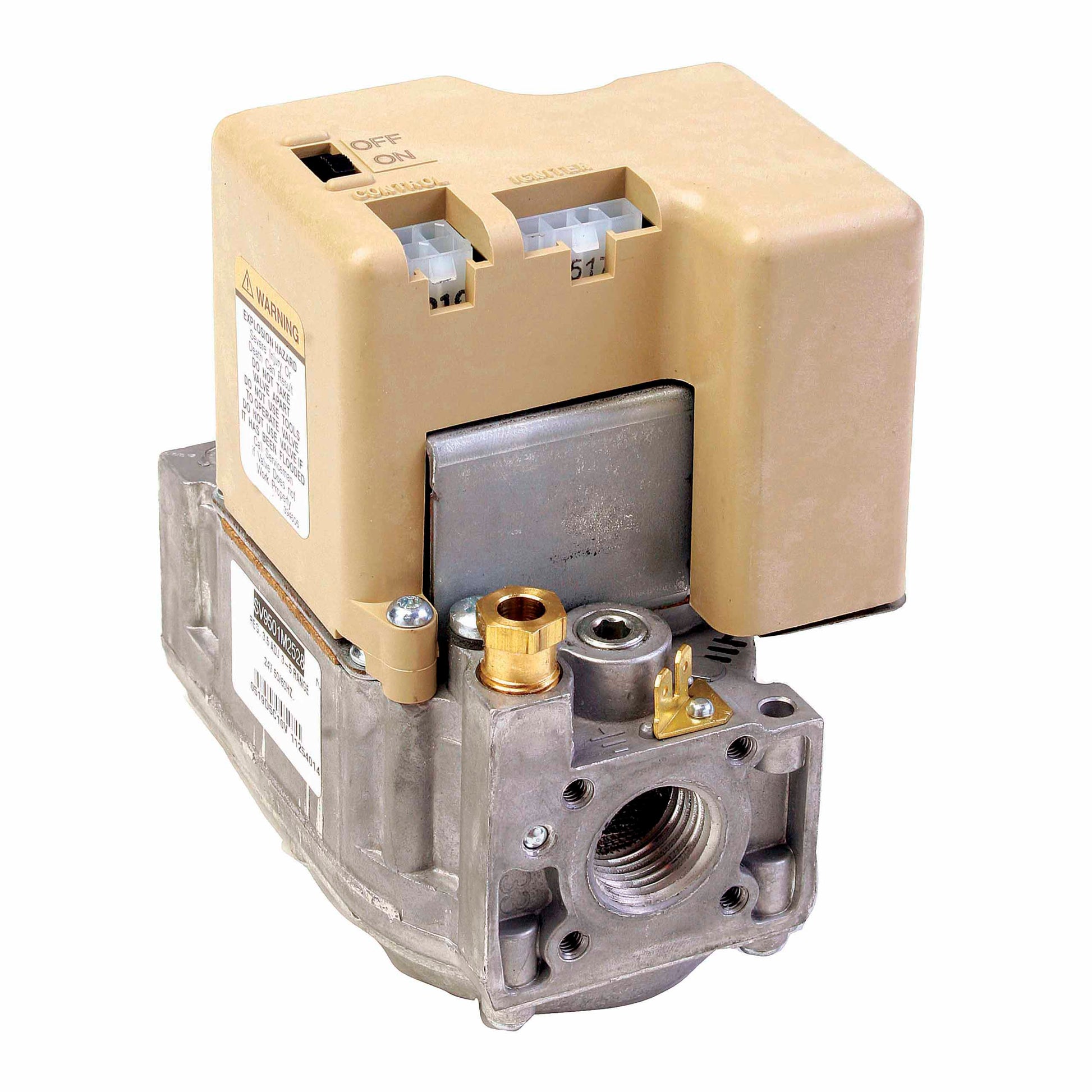

Resideo - Honeywell Home SV9501M8129 Gas Control Valve

Resideo - Honeywell Home SV9501M8129 Gas Control Valve delivers precise gas control for residential and light commercial equipment, ensuring dependable ignition and safe operation. Engineered for fast-opening performance, this 1/2 inch valve with threaded end connections supports 24 VAC input and a wide temperature range from -40 to 175°F.

Designed for gas-fired appliances such as residential furnaces, boilers, rooftop units, space heaters, and commercial cooking units, it features intermittent hot surface pilot ignition and robust flame sensing for reliable operation. The valve provides flexible installation and includes a natural-to-liquid propane conversion kit and extension harness for versatility across fuel types.

• 1/2 inch; Threaded x Threaded
• 24 Volt AC at 50/60 Hz
• -40 to 175°F
• 1/8 inch threaded; 3.4 Inch WC
• 20,000–200,000 BTU/hr
• 3.2 in; 4.1 in L × 4.9 in H
• Intermittent hot surface pilot; 90 seconds; Flame failure < 1.6 seconds at 3 μA
• Inclusions: Natural to Liquid Propane Conversion Kit, Extension Harness
• Mounting: 0–90 degree vertical installation; CSA
