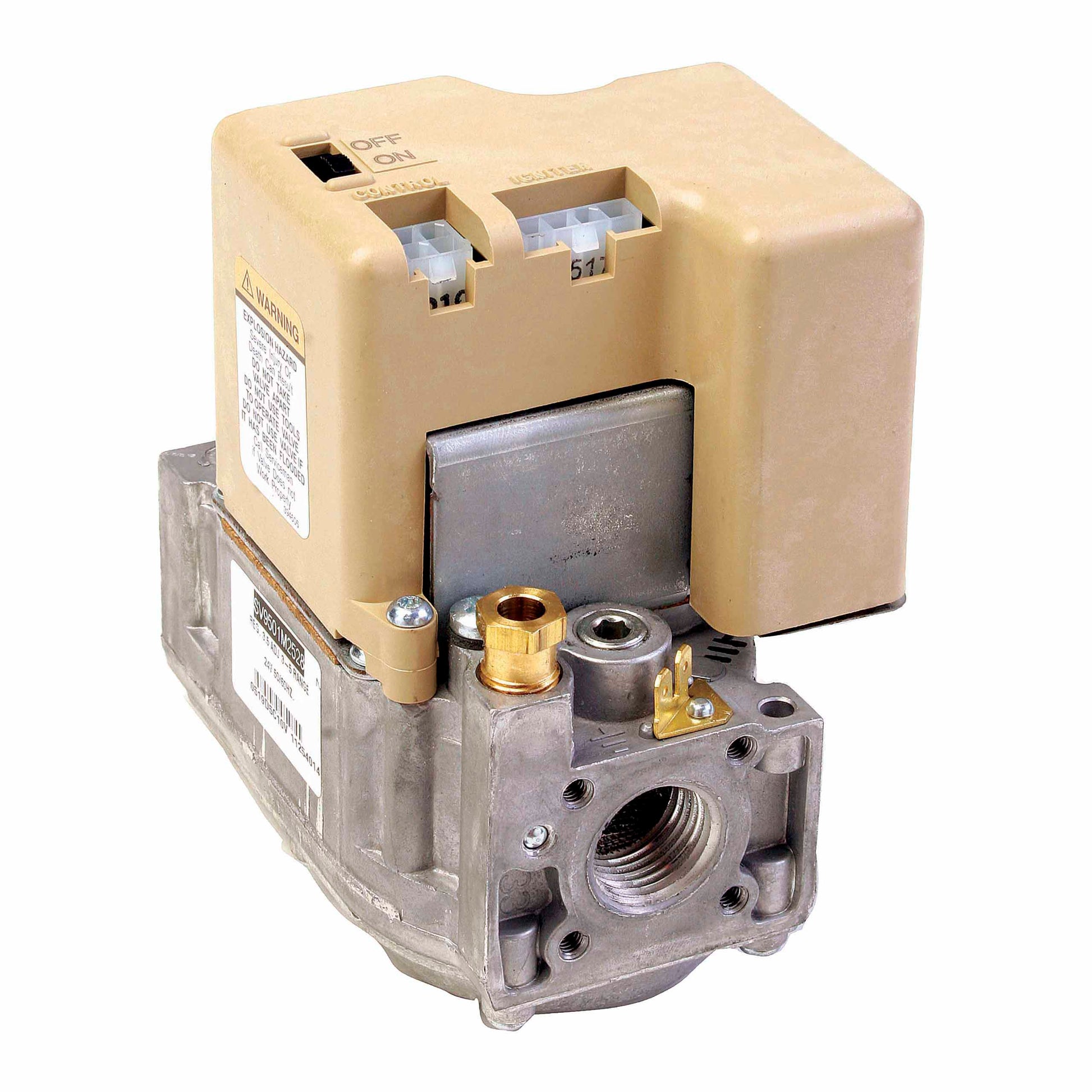

Resideo - Honeywell Home SV9502H2522 Gas Valve

Resideo - Honeywell Home SV9502H2522 Gas Valve is engineered for dependable fuel control in residential and light commercial heating applications. The 1/2-inch nominal size with a slow-opening, straight-through design ensures smooth gas flow and reliable ignition across a range of equipment.

With a 24 V AC input at 50/60 Hz and a wide operating temperature of -40 to 175°F, this valve handles demanding indoor and outdoor installations. It features a 1/2 PSI pressure rating, 1/8 inch pressure tapping, and a pressure regulator set point of 3.2 Inch WC for stable performance. The valve ships with a Natural to Liquid Propane Conversion Kit and an Extension Harness for quick setup, all while meeting CSA standards.

• Type: Slow Opening, Straight-Through
• Nominal Size: 1/2 Inch
• End Connection: Threaded x Threaded
• Input: 24V AC @ 50/60 Hz
• Ignition: Intermittent Hot Surface Pilot
• Flame Failure Response Time: 16 seconds at 3 μA
• Ignition Trial Time: 90 seconds
• Pressure Tapping: 1/8 Inch Threaded
• Pressure Regulator Set Point: 3.2 Inch WC
• Mounting: 0–90° Vertical Installation
• Inclusions: Natural to Liquid Propane Conversion Kit; Extension Harness
• Applications: Residential Furnace, Rooftop Furnace, Residential Boiler, Unit/Infrared/Space Heater, Commercial Cooking Unit
• CSA Standard
