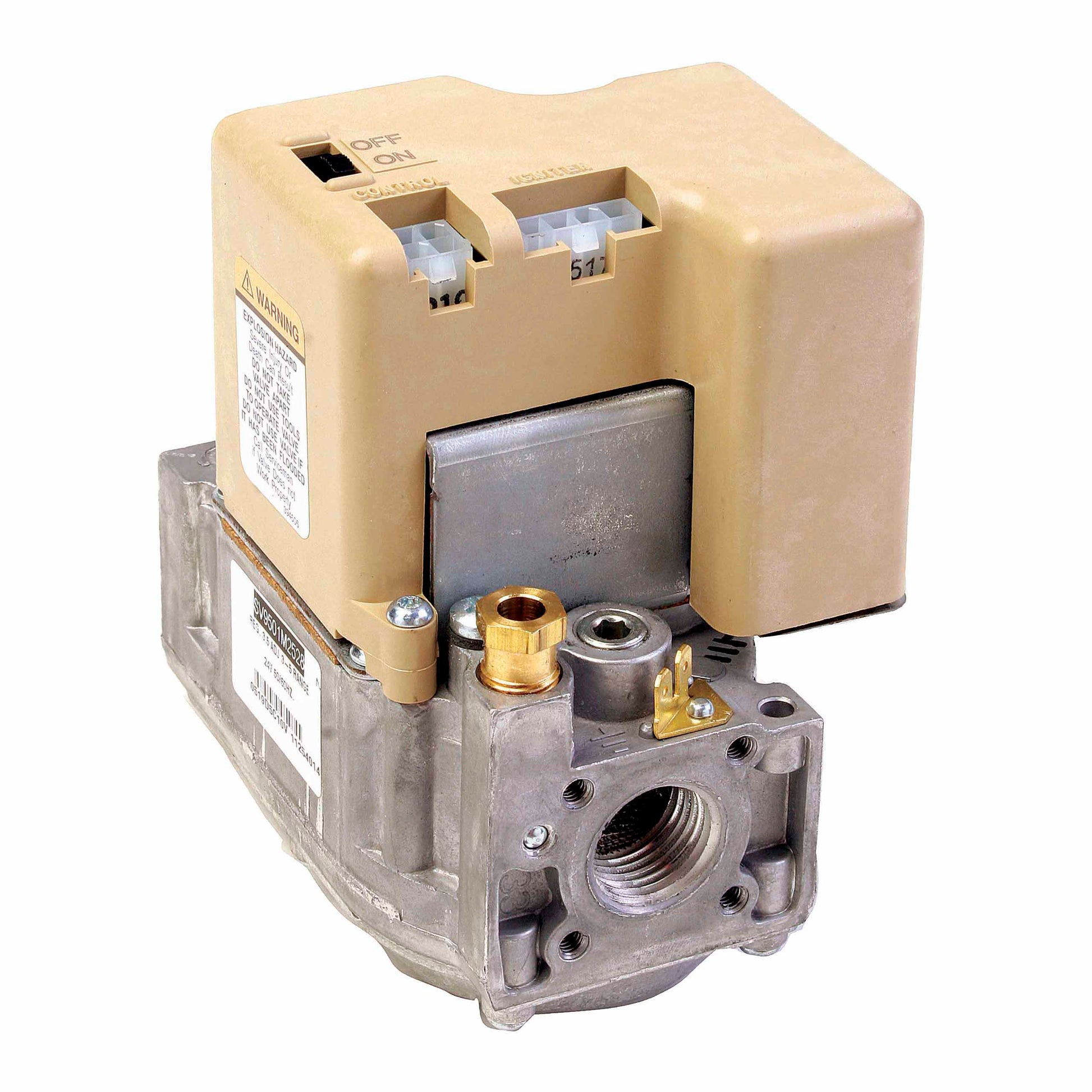

Resideo - Honeywell Home SV9601M4571 Gas Control Valve

The Gas Control Valve is a reliable solution for gas-fired appliances, delivering precise control for residential heating systems. This SV9601M4571 model uses a standard opening, straight-through design, optimized for 3/4 inch nominal connections.

Powered by 24V AC at 50/60 Hz and CSA-approved, it supports a wide range of installations, including residential boilers, rooftop furnaces, unit heaters, infrared heaters, and commercial cooking units.

Key Features

• Nominal Size: 3/4 inch
• End connections: Threaded x Threaded
• Input supply: 24V AC, 50/60 Hz
• Flow capacity: 30,000–415,000 BTU/hr
• Ignition: Intermittent hot surface pilot
• Pressure rating: 1/2 PSI
• Temperature range: -40 to 175°F
• Includes: 2 reducer bushings (3/4" x 1/2"), natural-to-LP conversion kit, pilot outlet
• Pressure tapping size: 1/8" threaded
• Overall dimensions: 4.1" L x 4.9" H (end-to-end: 3.2")

This versatile valve is CSA compliant and designed for dependable operation across essential gas-fired appliances in both residential and commercial settings.
