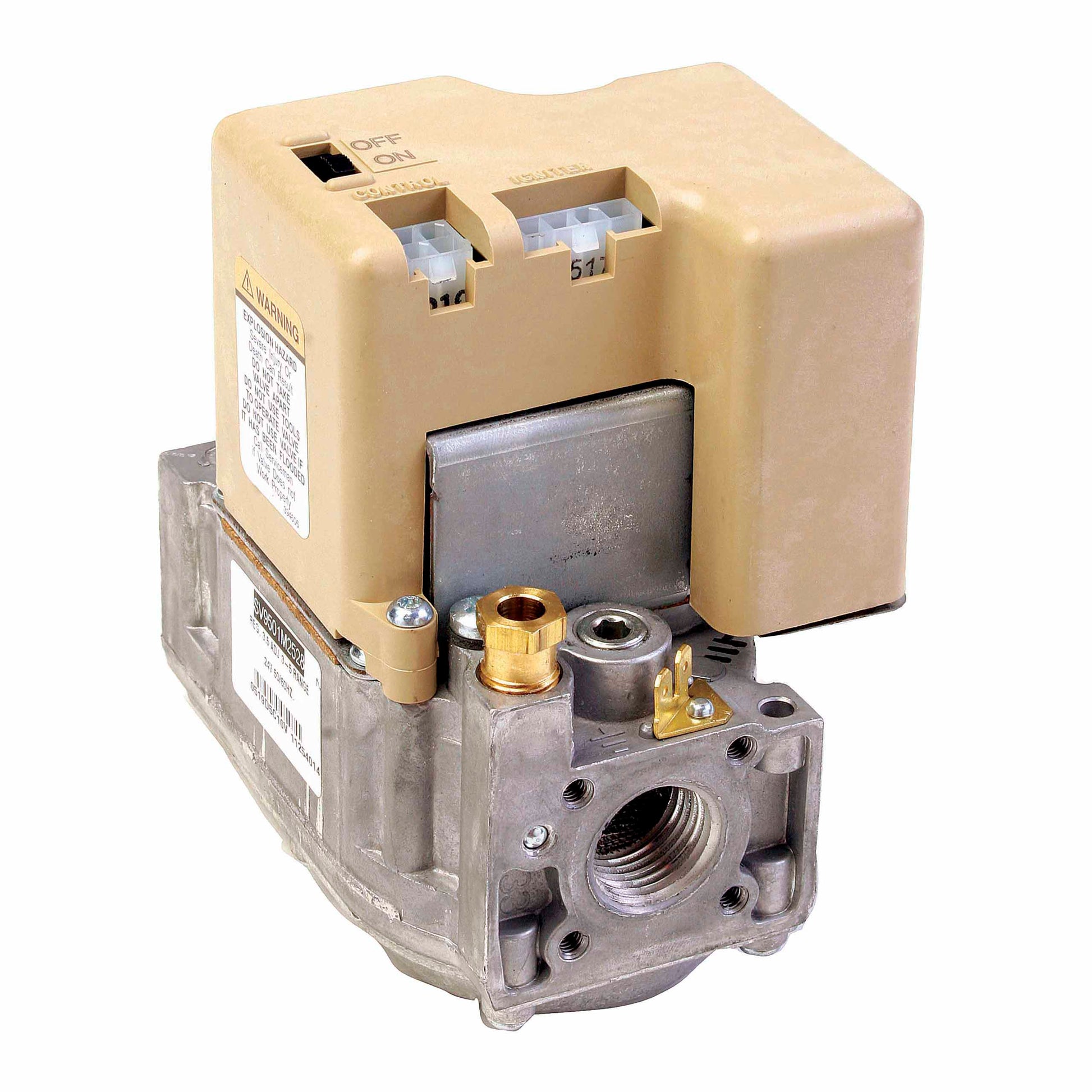

Resideo - Honeywell Home SV9602P4824 Gas Control Valve

Gas Control Valve from Resideo - Honeywell Home SV9602P4824 delivers precise control for gas-fired appliances. This Step Opening, Straight-Through valve features a 3/4 inch nominal size and threaded x threaded end connections, ideal for residential combustion control in rooftop furnaces, boilers, unit heaters, infrared heaters, and commercial cooking units.

Powered by 24 Volt AC (50/60 Hz), it operates from -40 to 175 °F and handles up to 1/2 psi. The package includes two 3/4 inch x 1/2 inch reducer bushings and an extension harness for straightforward installation.

Ignition and control specs ensure reliability: Intermittent Hot Surface Pilot ignition with a 90-second trial, 30-second prepurge, and a flame failure response of 1.6 seconds at 3 microamps. Capacity ranges from 30,000 to 415,000 BTU/hr, with pressure tapping at 1/8 inch threaded and a regulator set point of 3.5 inches WC. Installation supports 0 to 90-degree vertical mounting.

• Nominal size: 3/4 in; End connections: threaded x threaded
• Input: 24 VAC @ 50/60 Hz
• Temperature range: -40 to 175 °F
• Pressure: 1/2 psi; Pressure tapping: 1/8 in
• Capacity: 30,000–415,000 BTU/hr
• Ignition: Intermittent Hot Surface Pilot; 90-sec trial; 30-sec prepurge
• Flame sensing: 1.6 sec response at 3 μA
• Includes: 2 reducer bushings (3/4 in × 1/2 in) and extension harness
• Standards: CSA
• Mounting: 0–90° vertical
