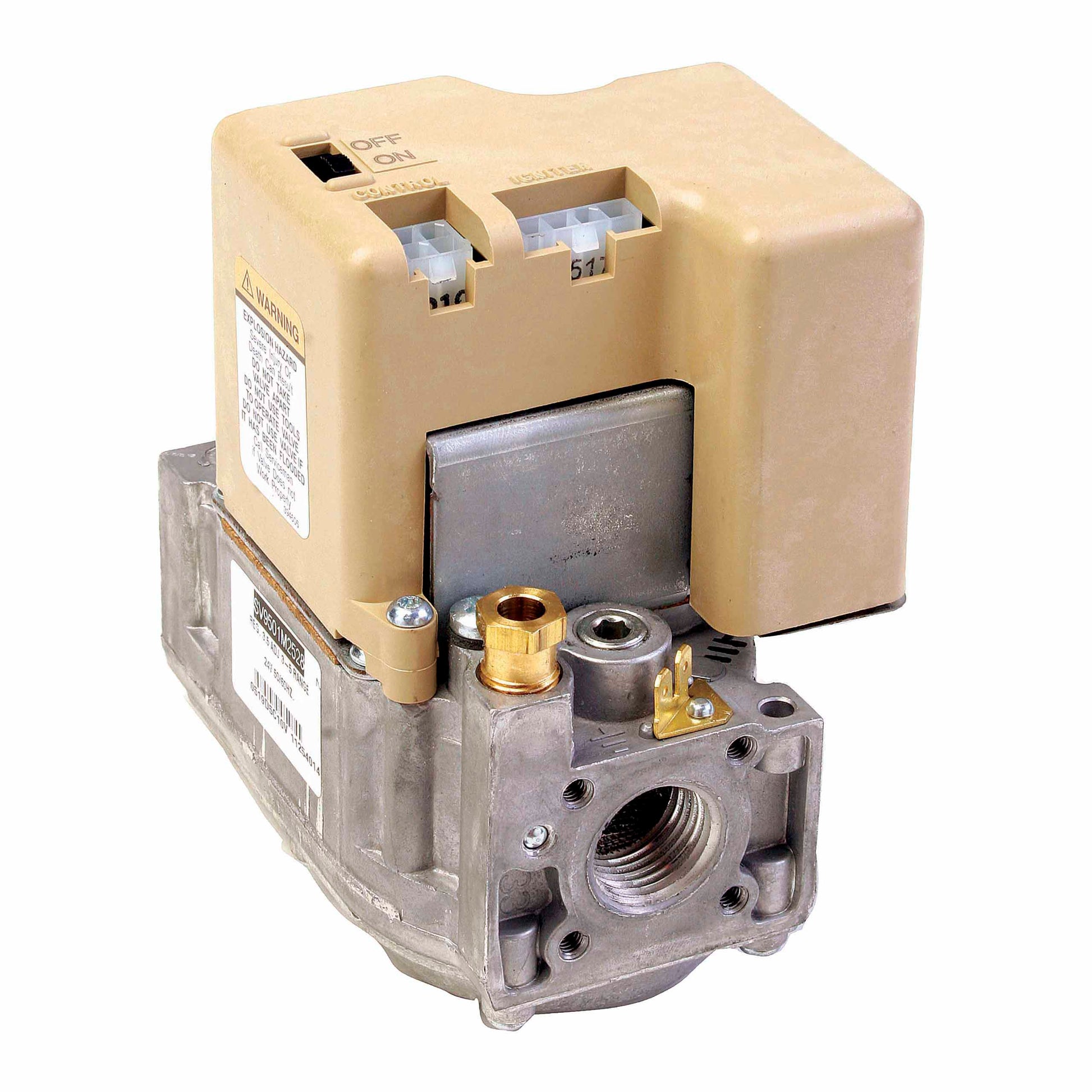

Resideo - Honeywell Home SV9602P4832 Gas Control Valve

The SV9602P4832 Gas Control Valve from Resideo/Honeywell Home delivers precise step-opening gas control for residential and light commercial heating equipment. With a 3/4 inch nominal size and threaded x threaded end connections, it fits compact installations with an end-to-end distance of 3.2 inches.

Designed for 24 Volt AC control at 50/60 Hz, this valve withstands -40 to 175°F operation and up to 1/2 psi pressure. It features an intermittent hot surface pilot ignition, a flame-failure response of 1.6 seconds at 3 microamps, and a prepurge time of 30 seconds, ensuring safe, reliable startup. The ignition sequence is intermittent pilot and includes a 90-second ignition trial.

Applications include gas-fired appliances such as residential boilers, rooftop furnaces, space heaters, infrared heaters, and commercial cooking units. The valve is CSA compliant and ships with inclusions: two reducer bushings (3/4 inch x 1/2 inch) and an extension harness for faster installation.

• Nominal size: 3/4 inch; end connections: threaded x threaded
• Input: 24V AC at 50/60 Hz; temperature range -40 to 175°F
• Capacity: 30,000 to 415,000 BTU/hour; pressure tapping: 1/8 inch threaded
• Pressure regulator set point: 10 inch WC; pressure rating: 1/2 psi
• Mounting: 0 to 90 degree vertical installation; CSA compliant
• Inclusions: (2) 3/4 inch x 1/2 inch reducer bushings; extension harness
