Resideo - Honeywell Home TLM1110R1000 Electrical Heat Equipment Interface Module

Electrical Heat Equipment Interface Module from Resideo – Honeywell Home TLM1110R1000 is designed to seamlessly connect your thermostat to electric heating equipment, delivering reliable control for baseboard heaters, convectors, and fan-forced heaters.

Engineered for the YTL9160AR1000 thermostat kit and EConnect systems, this UL-listed module operates on 100–240V AC with a 50/60 Hz power supply and uses a hardwired SPST relay to safely switch electric heat loads.

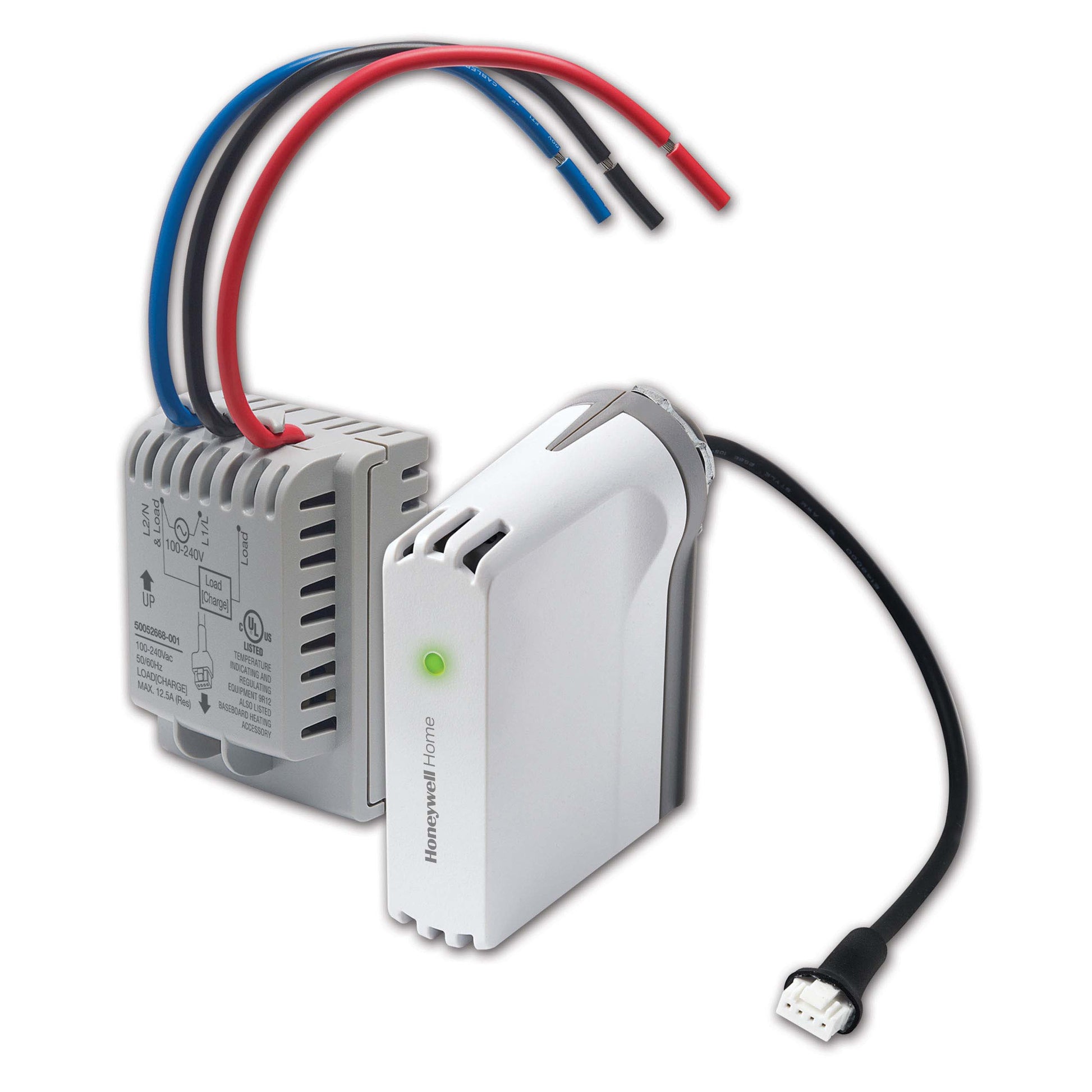

Take advantage of compact dimensions and vertical mounting in neutral gray relay housing and a white/light almond antenna cover. It’s built for harsh conditions with an operating range of -20 to 60°C and 5–95% RH non-condensing.

• Voltage and power: 100–240V AC; Max 3000W (240V) / 1500W (120V); Min load 100W (240V) / 50W (120V); 12.5A resistive
• Relay type: SPST, hardwired power
• Dimensions and mounting: 2.49 in W x 1.28 in D x 3.03 in H (relay); 2.63 in W x 1.16 in D x 2.89 in H (antenna); vertical mounting
• Connections: 6 in tinned copper lead wire
• Applications: Electric heating, baseboard heaters, convectors and fan-forced heaters

Incorporates essential compatibility with thermostat kits and EConnect, making retrofit and upgrades straightforward for residential heating systems.
