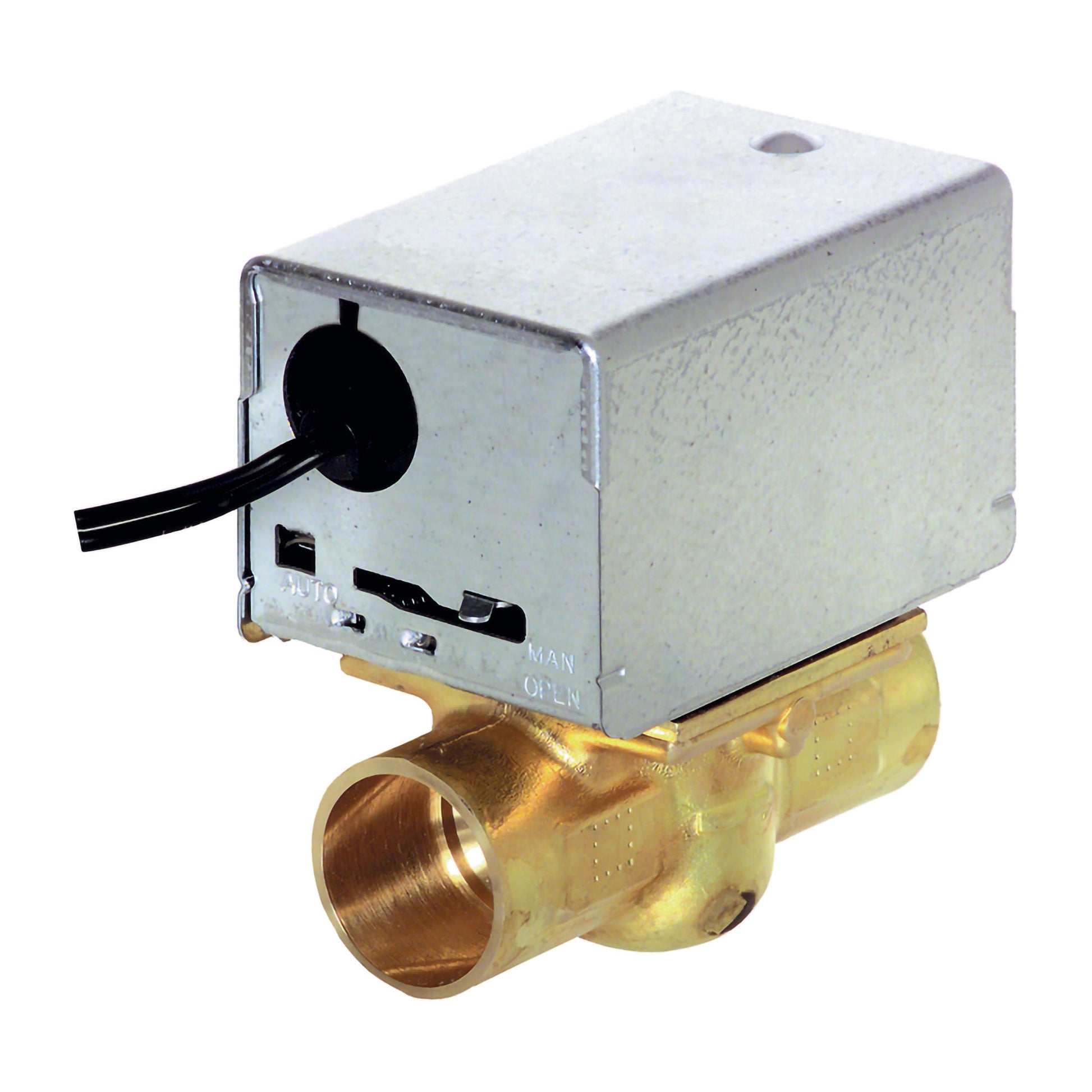

Resideo - Honeywell Home V4043A1010 Motorized Zone Valve

Motorized Zone Valve performance from Resideo - Honeywell Home V4043A1010 drives precise hydronic control for heating and cooling systems. This 2-Way, straight-through valve is 1/2 inch with soldered x soldered end connections and a 2-position, spring-return actuator that is normally closed for fail-safe operation.

Built to endure hot and chilled water service, the brass body houses a stainless steel stem and EPDM packing with Buna-N ball, delivering reliable 15-second opening and 20 psi close-off / 125 psi static ratings. It handles temperatures from 40 to 200°F and operates on line-voltage control with an 18-inch lead.

• Flow design: 2-Way, straight-through flow with 3.5 Cv for steady, balanced thermal transfer
• Connections: End connections soldered x soldered for secure piping
• Actuation: 2-position, spring-return to close; normally closed
• Dimensions: 1/2 inch; 3-1/2" W × 2-3/8" D × 4" H
• Electrical: Line voltage control, 120 VAC; 9.6 VA; 0.08 A; 18" lead
• Media: Hot/Chilled water compatible
• Materials: Brass seat, stainless steel stem, EPDM packing, Buna-N ball
• Certifications: UL and CSA approved
