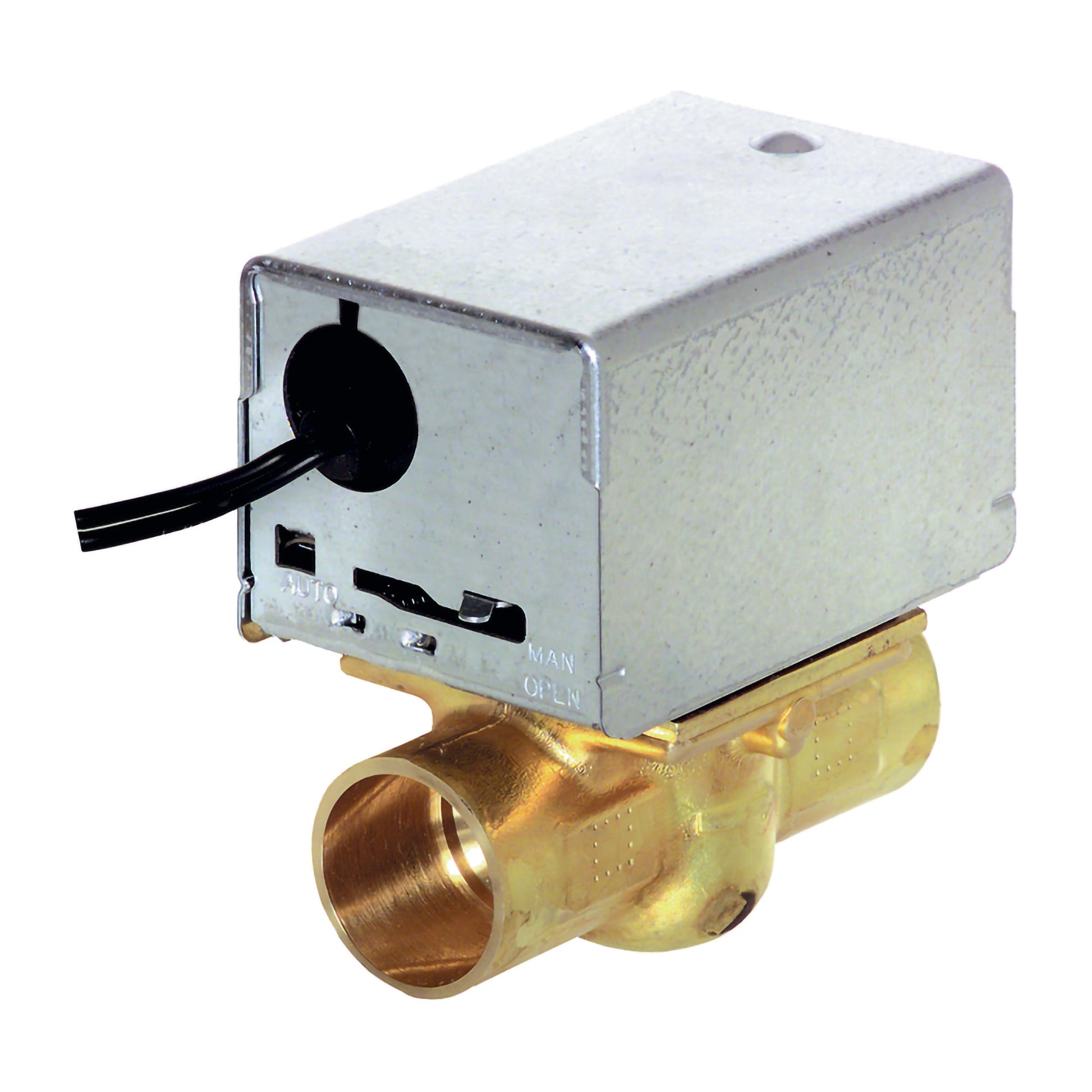

Resideo - Honeywell Home V4043A1184 Motorized Zone Valve

Motorized Zone Valve from Resideo - Honeywell Home V4043A1184 delivers precise hydronic control for heating and cooling systems. This 2-way, straight-through valve is 1/2 inch nominal with soldered x soldered end connections for a secure, leak-free install.

Equipped with a 2-position, spring-return-to-close actuator, the valve is normally closed to simplify system sequencing. The brass body houses a stainless steel stem and EPDM packing with Buna-N ball, engineered for durability in hot or chilled water.

Key specifications ensure reliable operation in residential and light commercial HVAC. Input is 9.6 VA at 120 VAC, 60 Hz (0.08 A). The valve handles up to 50 psi close-off and 125 psi static, with a 1 Cv flow capacity and an 18-inch electrical lead. It’s UL/CSA listed and includes a manual opener for on-site adjustments.

• 2-Way, straight-through design with 1/2" nominal size
• End connections: soldered x soldered
• Actuation: 2-position, spring return to close; normally closed
• Media: hot or chilled water
• Materials: brass body, stainless stem, EPDM packing, Buna-N ball
• Electrical: line voltage, 18" lead
