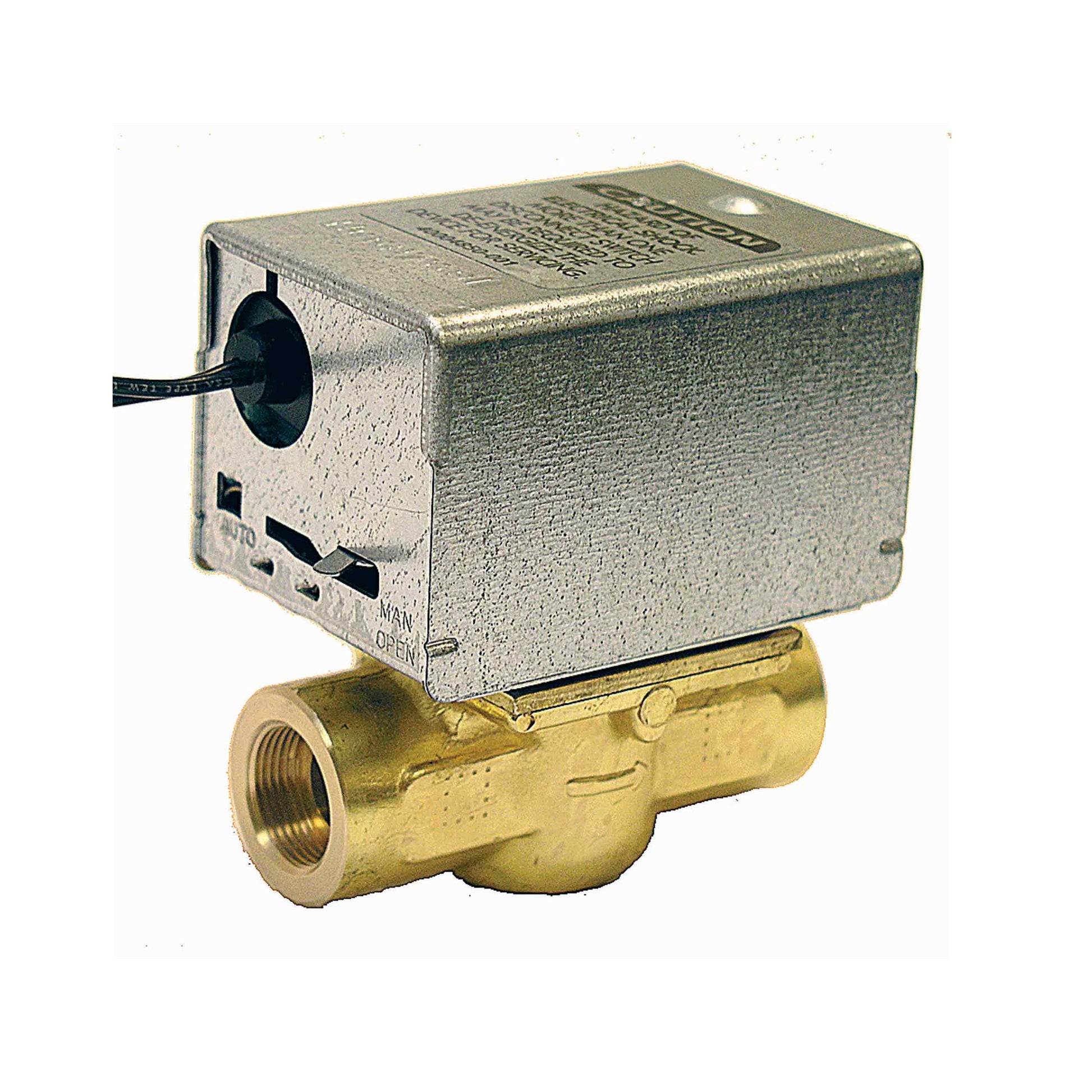

Resideo - Honeywell Home V4043A1697 Motorized Zone Valve

Motorized Zone Valve for hydronic systems delivers precise zone control. The Resideo - Honeywell Home V4043A1697 is a 2-way, straight-through valve with a 1-inch nominal size and threaded end connections for straightforward installation.

This valve uses a 2-position, spring-return to close actuator and is normally closed, ideal for zoning. Built with a brass body, stainless steel stem, EPDM packing, and Buna-N rubber ball, it handles hot or chilled water from 40 to 200°F. It offers a 6.5 psi close-off and 125 psi static pressure rating, making it robust for typical hydronic systems. Electrical input is 9.6 VA at 120V AC, 60 Hz, drawing 0.08 A, with an 18-inch lead for easy wiring. The unit opens in about 15 seconds and carries UL and CSA listings for reliable performance in heating and cooling applications.

• 2-way, straight-through design
• 1-inch nominal size with threaded connections
• Normally closed, spring-return actuator
• Line voltage operation with 18-inch electrical lead
• Hydronic control for hot and chilled water
