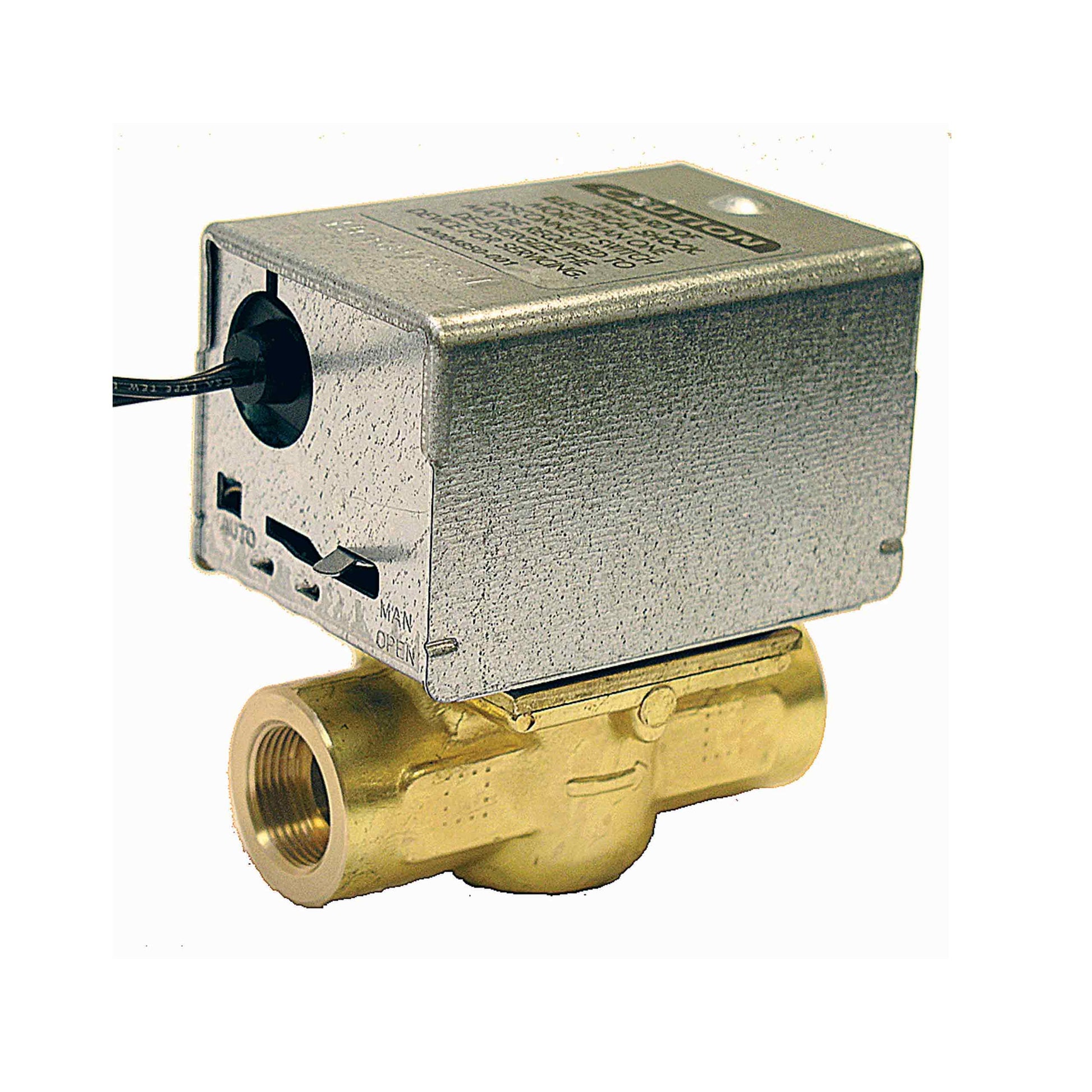

Resideo - Honeywell Home V4043A1705 Motorized Zone Valve

The Motorized Zone Valve from Resideo - Honeywell Home V4043A1705 delivers precise hydronic control for heating and cooling systems. This 2-Way, straight‑through valve uses a 3/4 inch nominal size with threaded end connections and a brass body for durable, long‑lasting performance.

Designed for hot and chilled water, it opens quickly in about 15 seconds and uses a 2‑Position, spring return mechanism to close. The valve is normally closed, ensuring a fail‑safe shutoff when power is removed. It features an 18‑inch lead electrical connection and supports line voltage operation, making it compatible with typical heating circuits.

Key specifications

• Flow capacity: 3.5 Cv
• Media: Hot/Chilled water
• Temperature rating: 40–200°F
• Pressure: 20 psi close‑off, 125 psi static
• Materials: Brass (seat), Stainless steel (stem), EPDM packing, Buna‑N ball
• Ambient: Up to 125°F; non‑condensing 5–95% RH
• End connections: Threaded x threaded
• Inclusions: Line voltage, manual opener
