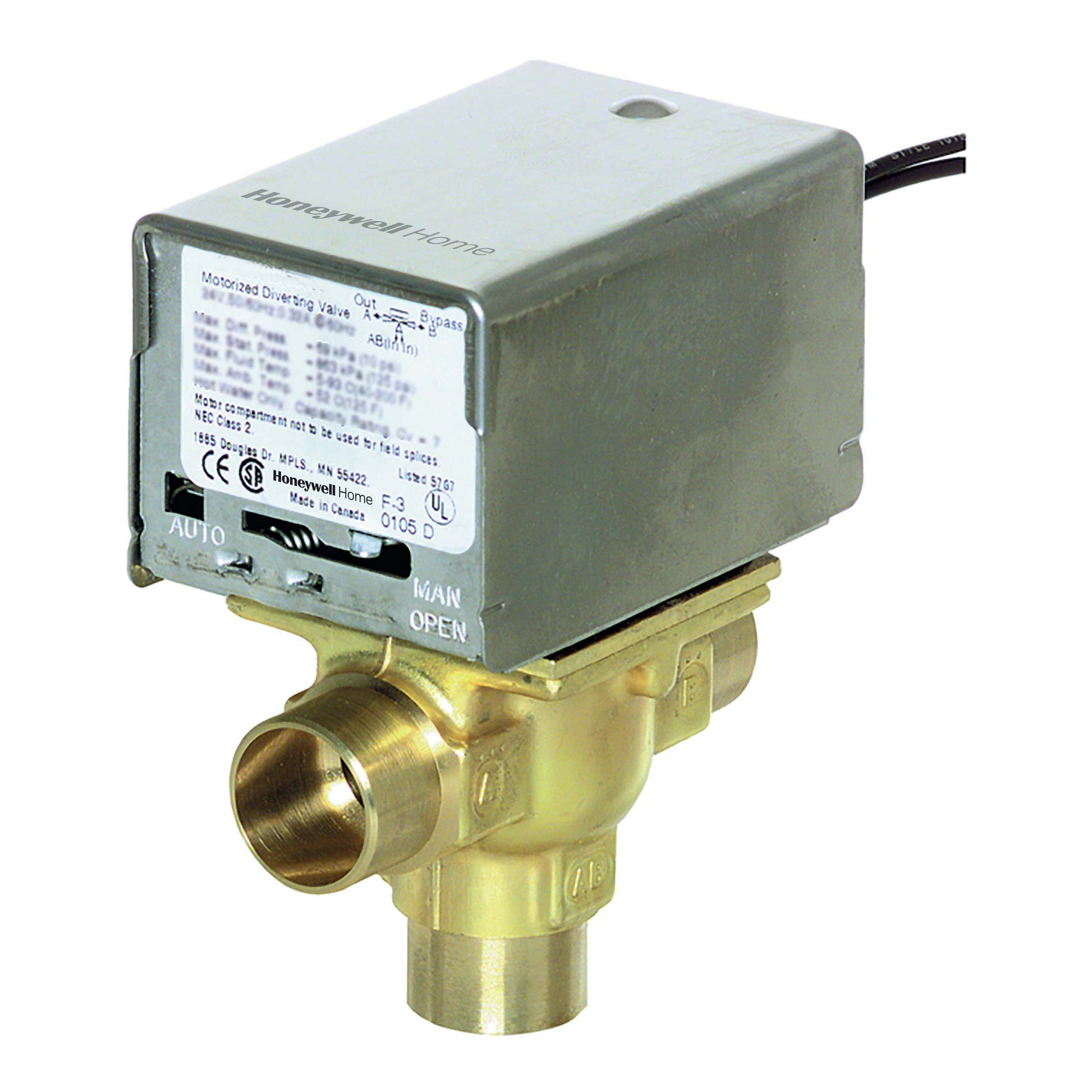

Resideo - Honeywell Home V4044A1191 Motorized Zone Valve

The V4044A1191 is a motorized zone valve from Resideo/Honeywell Home, a precise 3-Way valve designed for reliable hydronic control in heating and cooling systems.

Engineered with a 2-Position, spring-return to Port A close (diverting) action and a normally closed position, this valve delivers smooth, system-balanced flow for hot water and chilled water circuits.

Key specifications include a 3/4 Inch nominal size with soldered x soldered end connections, brass body, stainless steel stem, EPDM packing, Buna-N ball, and a 30-second open time. The V4044A1191 operates on line voltage with a 9.6 VA at 120 VAC, 60 Hz, and features an 18 inch electrical lead for easy installation. It is UL-listed and suitable for hydronic control in heating and cooling applications, handling up to 125 psi static and 10 psi close-off, and a flow capacity of 7 Cv.

• 3-Way diverting design for precise zone control
• 3/4 inch nominal size with soldered x soldered connections
• Line voltage actuator (120 VAC, 60 Hz) with 18 inch lead
• 30-second valve opening for quick system response
• Normally closed, spring-return to Port A close
• Brass body with stainless steel stem and EPDM packing
• Handles hot and chilled water up to 200 F fluid temp; ambient 125 F
• UL-listed with 10 psi close-off / 125 psi static pressure
• Compact footprint: 3-1/2" W x 2-3/8" D x 4-13/16" H
• Flow capacity 7 Cv for balanced system flow
