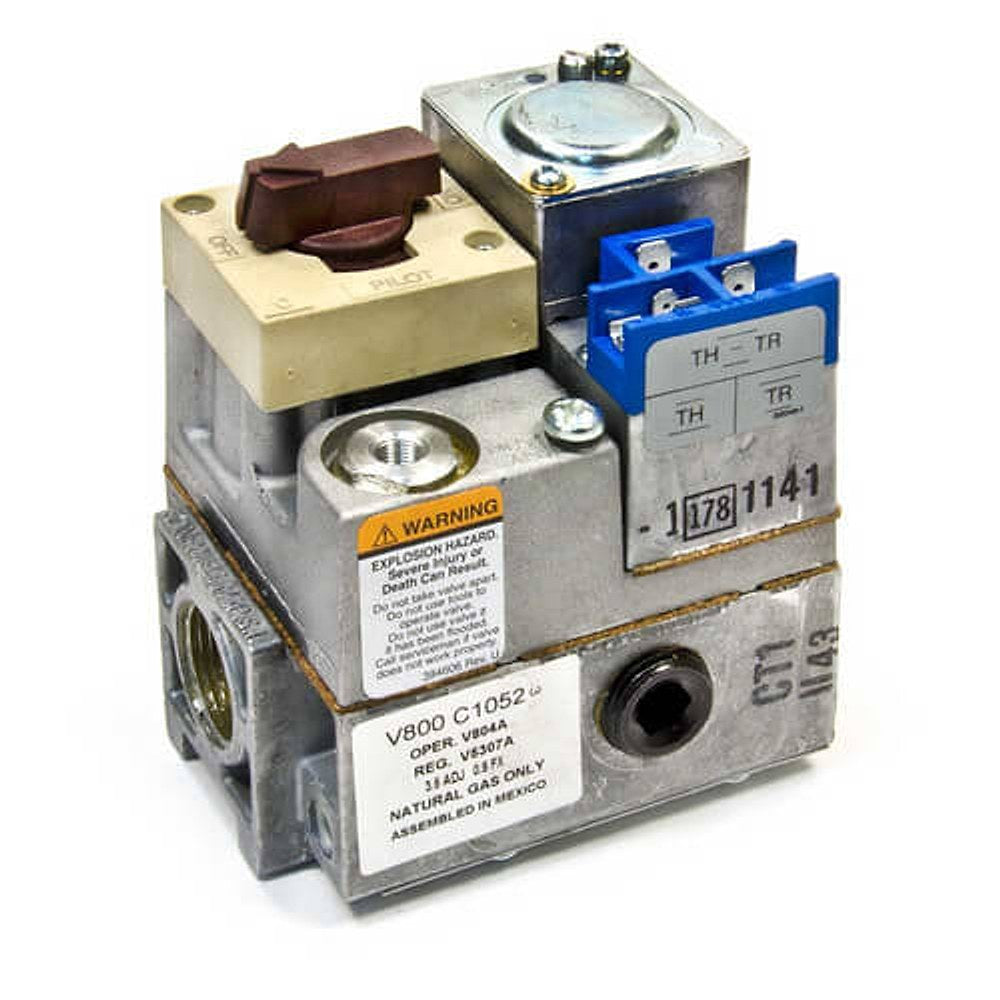

Resideo - Honeywell Home V800C1052 Combination Gas Control Valve

The Combination Gas Control Valve V800C1052 from Resideo Honeywell Home delivers reliable fuel control for residential gas-fired appliances. This Type 1-Stage, low voltage valve operates on 24 Volt AC at 60 Hz with a standing pilot ignition for dependable startup and safety shut-off.

Built for precise regulation, the valve features a 3/4 inch nominal size, threaded x threaded end connections, and a compact 3-3/16 inch depth by 4-3/4 inch height. It includes a 1/4 inch quick-connect male terminal interface and is designed for 0 to 90 degree vertical installation.

Key capabilities include an integrated pressure regulator set at 3.5 Inch WC, pressure tapping, a pilot gas filter, and a thermocouple connector. The device also houses a pilot flow adjustment screw and an ECO connector for flexible setup, plus a safety shut-off and a single millivolt automatic operator for reliable operation.

• Type 1-Stage, low voltage operation with standing pilot ignition
• 3/4 in nominal size with threaded x threaded end connections
• 24 V AC input at 60 Hz; 1/4 in quick-connect terminal
• Integrated pressure regulator, pilot gas filter, and safety shut-off
• UL-listed and CSA compliant residential combustion control

Designed for gas-fired appliances, this valve provides dependable performance in residential applications and is specified for standard opening and safety compliance.
