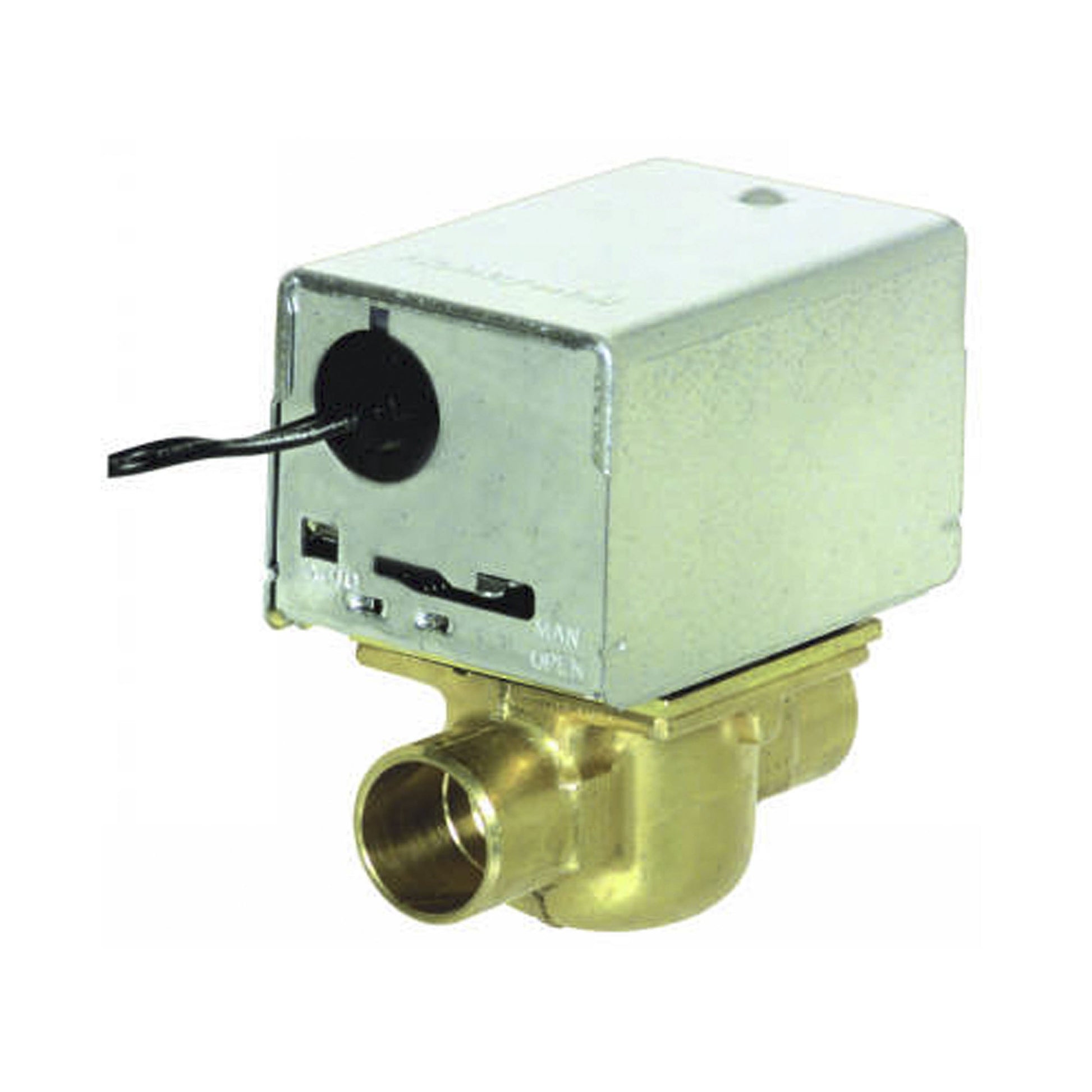

Resideo - Honeywell Home V8043A1011 Motorized Zone Valve

Enhance hydronic control with this Motorized Zone Valve, the Resideo Honeywell Home V8043A1011. This 2-Way, straight-through valve is designed for hot water systems, offering a 1/2 inch nominal size and soldered end connections for reliable installation.

Equipped with a 2-Position, spring-return to close actuator, the valve sits in a normally closed position for secure shutoff. The brass body houses a stainless steel stem with EPDM packing and Buna-N ball, delivering long-lasting performance in hydronic control applications.

• Nominal size: 1/2 inch; 2-Way, straight-through flow
• End connections: soldered x soldered
• Actuation: 2-Position, spring-return to close; normally closed
• Materials: brass body, stainless steel stem, EPDM packing, Buna-N plug/ball
• Flow capacity: 3.5 Cv
• Electrical: 24 VAC, 0.32 A (7.7 VA); 18 inch lead
• Temperature rating: 50–200 F (fluid); ambient up to 125 F
• Pressure: 20 psi close-off; 125 psi static
• Media: Hot Water; application: Hydronic Control; UL CSA listed
• Dimensions: 3-1/2" W x 2-3/8" D x 4" H
• Inclusions: Low Voltage; Manual Opener
