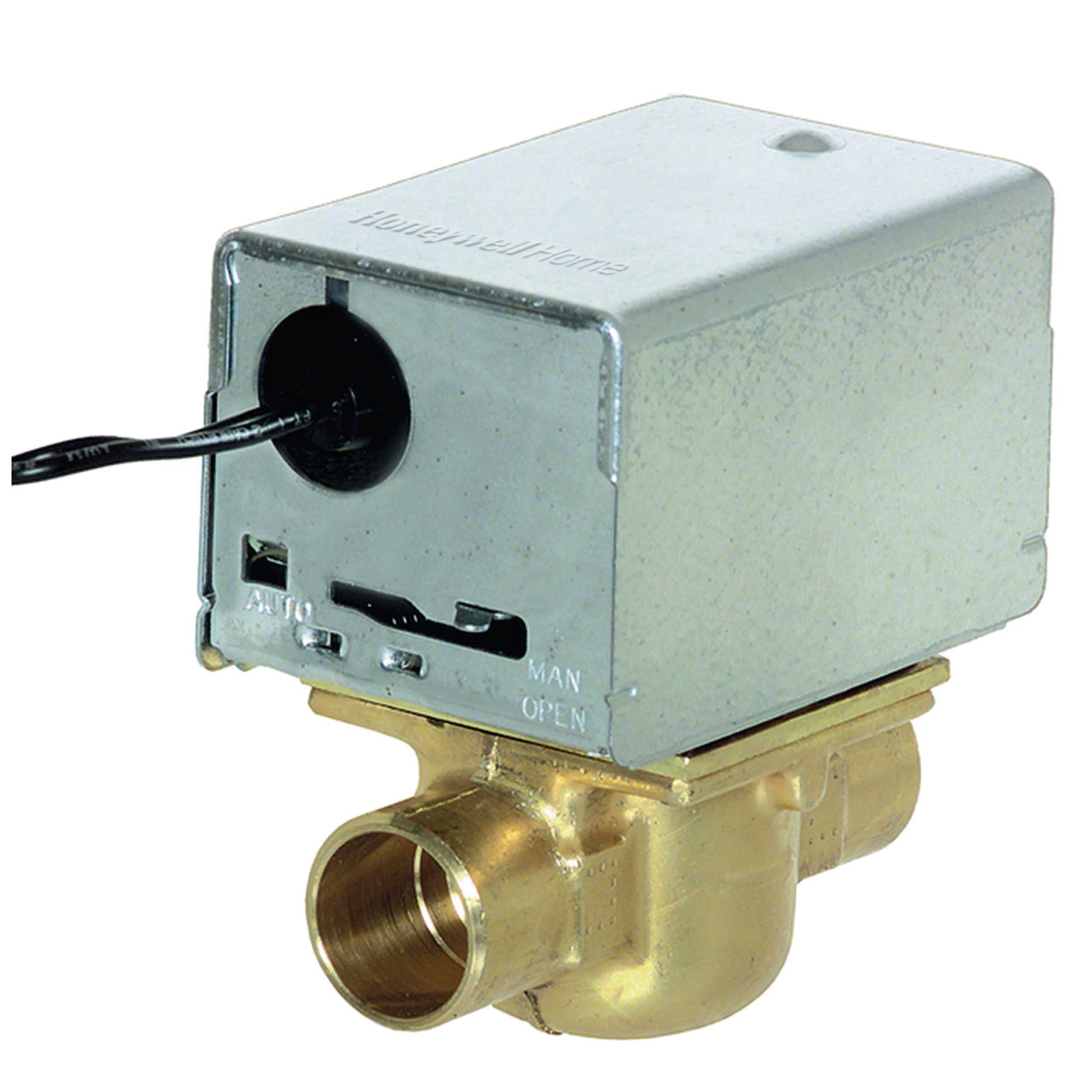

Resideo - Honeywell Home V8043A1029 Motorized Zone Valve

The V8043A1029 Motorized Zone Valve from Resideo - Honeywell Home is a 2-Way, straight-through valve designed for precise hydronic control in hot-water systems. This normally closed valve uses a 2-position, spring-return actuator for reliable shut-off and quick response. With a 3/4 inch nominal size and soldered x soldered end connections, it installs quickly in standard piping.

Built for durability, the brass body houses a stainless steel stem, EPDM packing, and Buna-N ball, delivering dependable operation across temperatures from 50 to 200°F and static pressures up to 125 psi (close-off 20 psi). The valve offers a 3.5 Cv flow capacity for steady flow control. Electrical operation uses 24 VAC (0.32 A, 7.7 VA) via an 18-inch lead, making it a low-voltage option for modern hydronic systems. A manual opener is included for fail-safe manual control. UL and CSA listed, the V8043A1029 is ready for reliable hydronic control in residential or light commercial installations.

• Type: 2-Way, straight-through
• Nominal size: 3/4 inch
• End connections: Soldered x soldered
• Actuation: 2-position, spring return to close
• Valve position: Normally closed
• Material: Brass body; stainless steel stem; EPDM packing; Buna-N ball
• Flow capacity: 3.5 Cv
• Electrical: 24 VAC, 0.32 A, 7.7 VA; 18" lead
• Operating conditions: 50–200°F; ambient up to 125°F; 5–95% RH non-condensing
• Standards: UL, CSA
