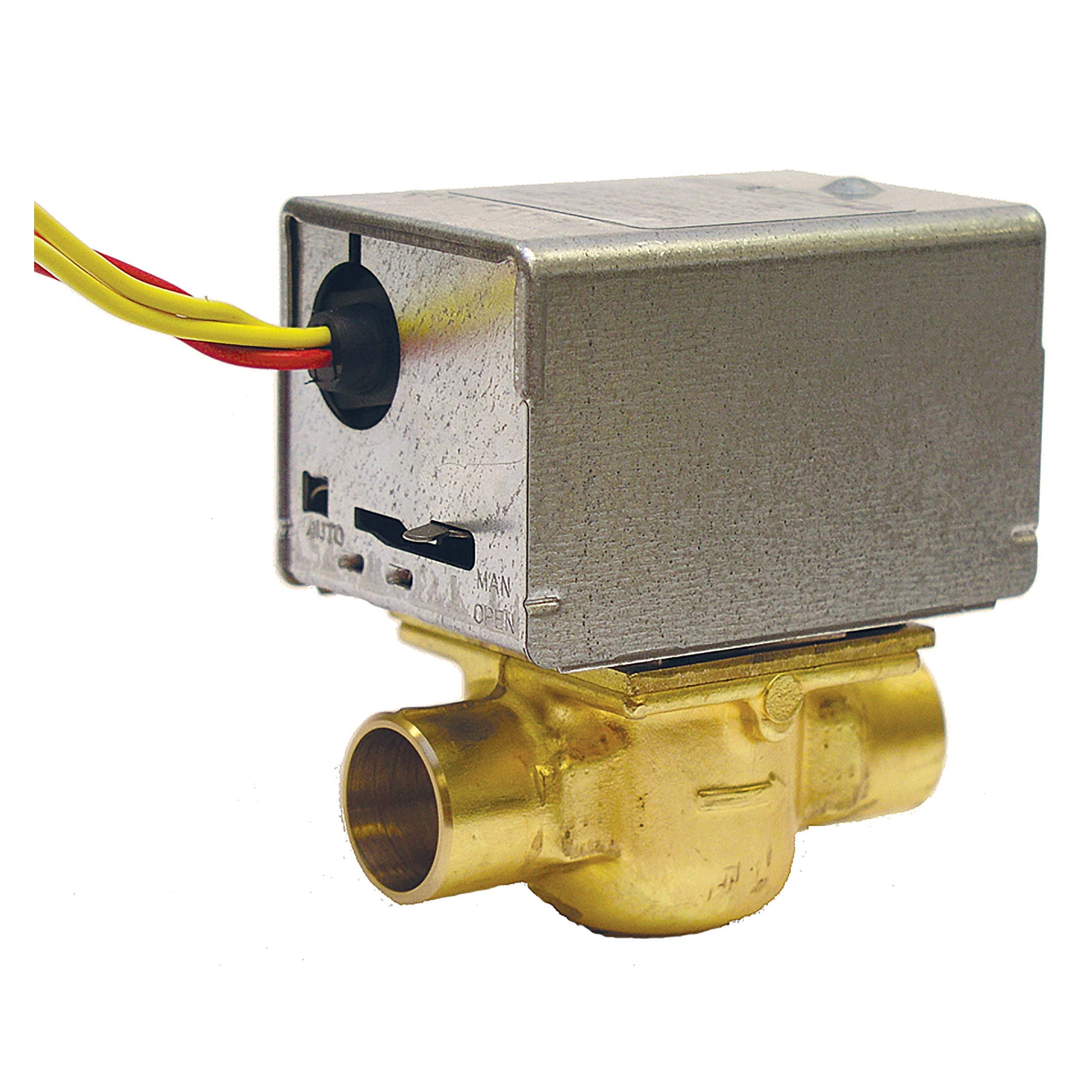

Resideo - Honeywell Home V8043E1012 Motorized Zone Valve

The V8043E1012 Motorized Zone Valve from Resideo (Honeywell Home) delivers reliable hydronic control with a 2-position, spring-return actuator. This 2-way, straight-through valve features a 3/4 inch nominal size and soldered x soldered end connections for quick, secure installation. The valve is normally closed, ideal for zoning and boiler control in hot water systems.

Built to handle hot water up to 125 psi static and 20 psi close-off, it uses a brass body with a stainless steel stem and EPDM packing. The Buna-N ball plug ensures a durable seal, while the 18 inch electrical lead provides straightforward low-voltage connection. With a 15-second actuation (open) and a 3.5 Cv flow, it delivers dependable performance for residential and light commercial hydronic systems. This unit is UL and CSA listed for safety and reliability.

• 2-Way, straight-through valve with 2-position, spring-return to close
• 3/4" nominal size; soldered x soldered end connections for easy installation
• Brass body, stainless steel stem, EPDM packing, Buna-N ball
• Hot water media; fluid temperature range 50–200°F; 20 psi close-off, 125 psi static
• 7.7 VA at 24 VAC; 0.32 A; 18 inch electrical lead
• Normally closed with SPST end switch and a built-in manual opener
• Flow capacity 3.5 Cv; UL and CSA listed
