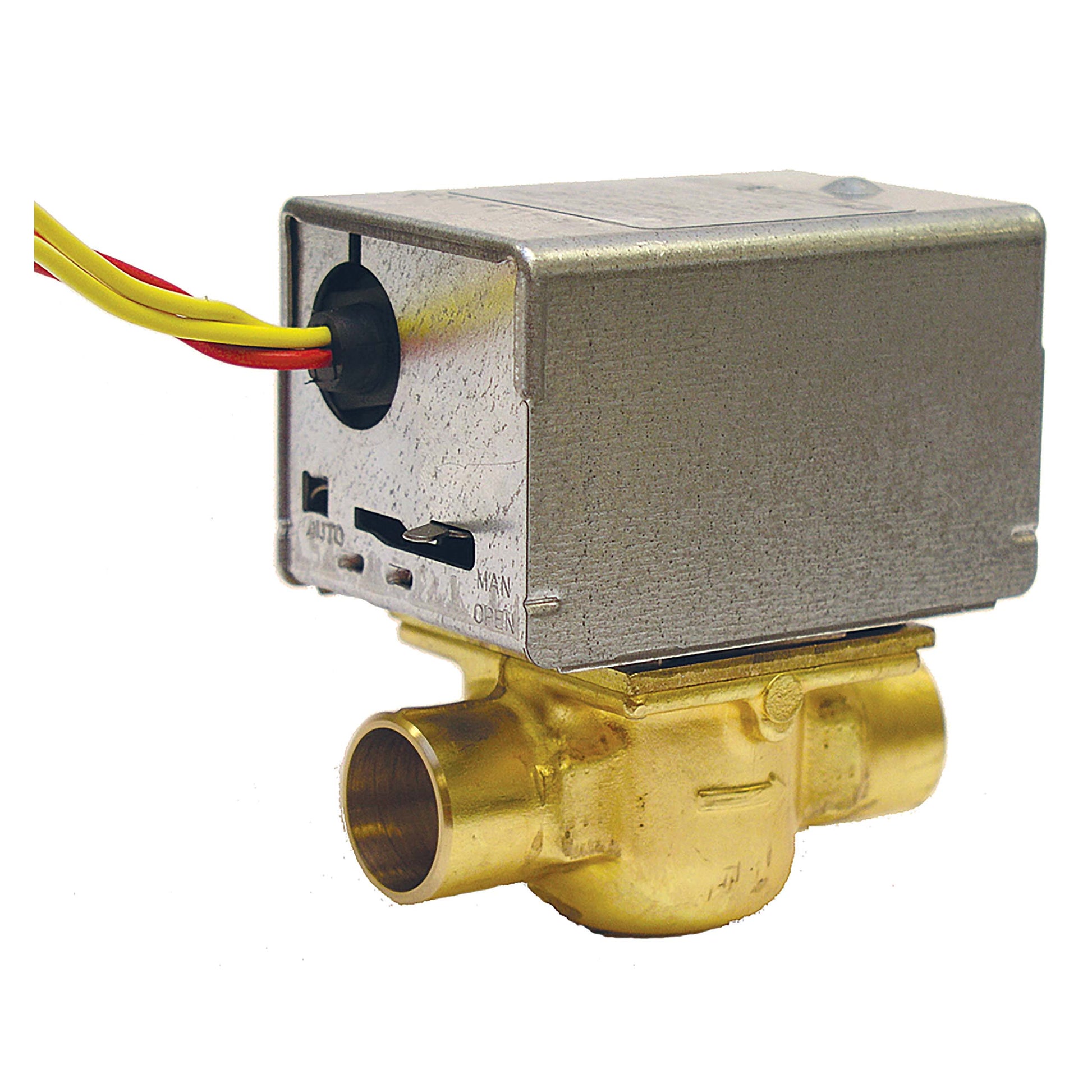

Resideo - Honeywell Home V8043E1061 Motorized Zone Valve

The V8043E1061 Motorized Zone Valve from Resideo/Honeywell Home delivers reliable hydronic control for hot water systems. This 2-Way, straight-through valve features a 3/4 inch nominal size and soldered end connections, simplifying installation in tight spaces. The 2-position, spring-return-to-close actuator provides simple, fail-safe operation, and the valve is normally closed for power-failure protection. Built with a brass body, stainless steel stem, EPDM packing, and Buna-N ball seal, it withstands hot-water media and demanding environments. Designed for robust hydronic control, the V8043E1061 combines durable construction with precise flow, boasting an 8 Cv rating and a 15-second open time, while meeting UL and CSA safety standards.

• 2-Way straight-through design for efficient flow
• 3/4" nominal size; soldered x soldered ends
• 2-position, spring-return actuator; normally closed
• Brass body, stainless steel stem, EPDM packing; Buna-N seal
• 18" electrical lead; 24 VAC input; 7.7 VA; 0.32 A
• Hot-water rated media; max fluid temp 50–200°F
• Flow 8 Cv; close-off 8 psi; static 125 psi
• UL/CSA listed; SPST end switch included
